Vehicle care 135
Halogen headlights

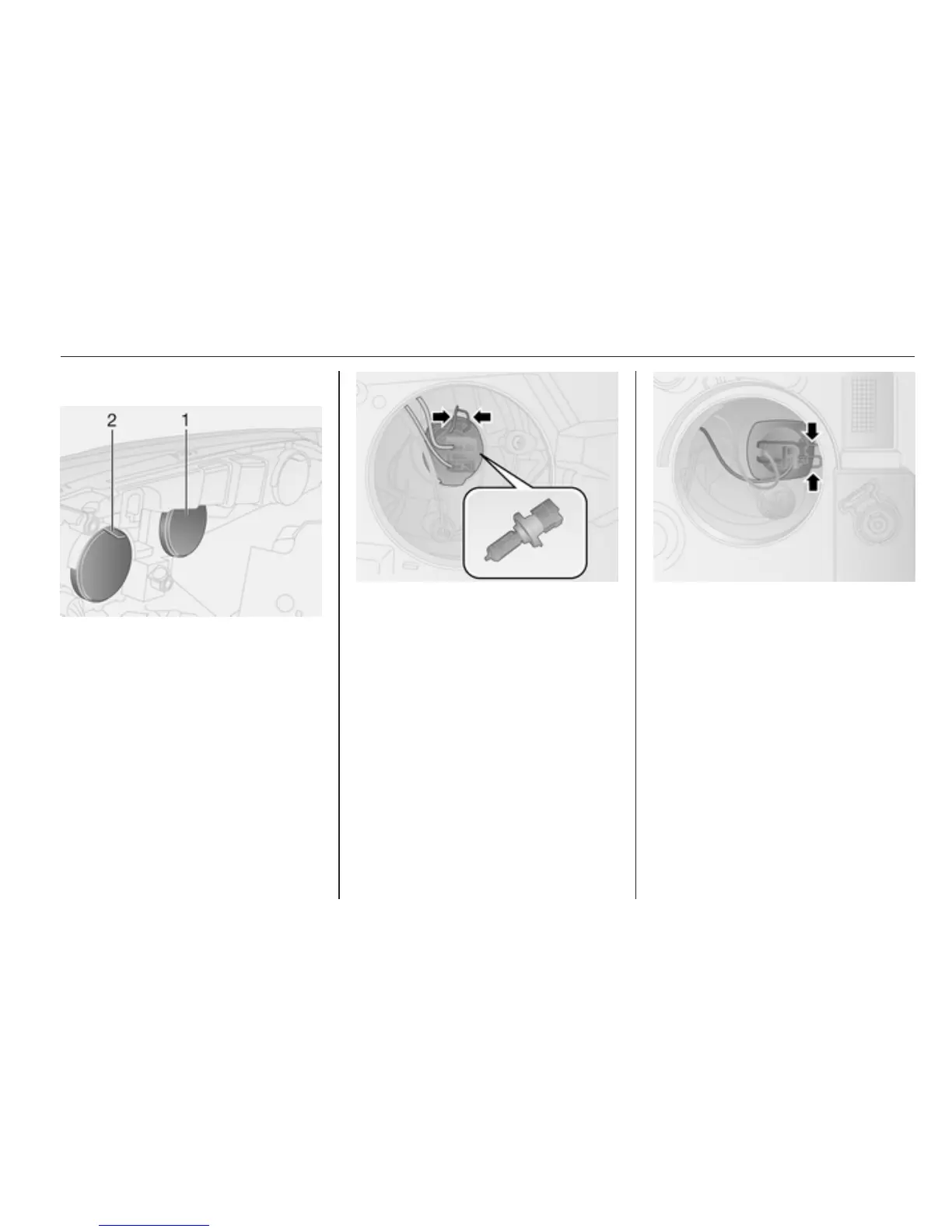

Headlights have separate systems for
low beam/sidelight 1 (outer bulb),
high beam/daytime running light 2
(inner bulb).
To access bulbs, pull off protective
covers.
Low beam
1. Remove protective cover.
2. Detach connector from bulb.
3. Disengage wire clip and remove
bulb from reflector.
4. Insert new bulb in reflector so that
the locating tab of the bulb aligns
with the reflector recess.
5. Attach connector to bulb.
6. Engage wire clip.
7. Install protective cover.
High beam
1. Remove protective cover.
2. Detach connector from bulb.
3. Disengage wire clip and remove
bulb from reflector.
4. Insert new bulb in reflector so that
the bulb aligns with the reflector
recess.
5. Engage wire clip and attach
connector onto bulb.
6. Install protective cover.
Sidelight
1. Remove protective cover.
Withdraw bulb holder from
reflector by turning anticlockwise.
