Eurocode Digi50 Controller V1.03 04/07/2005 Page - 21 -
Digi50 Low Air Pressure Option
Air Switch Not Supplied
Note.

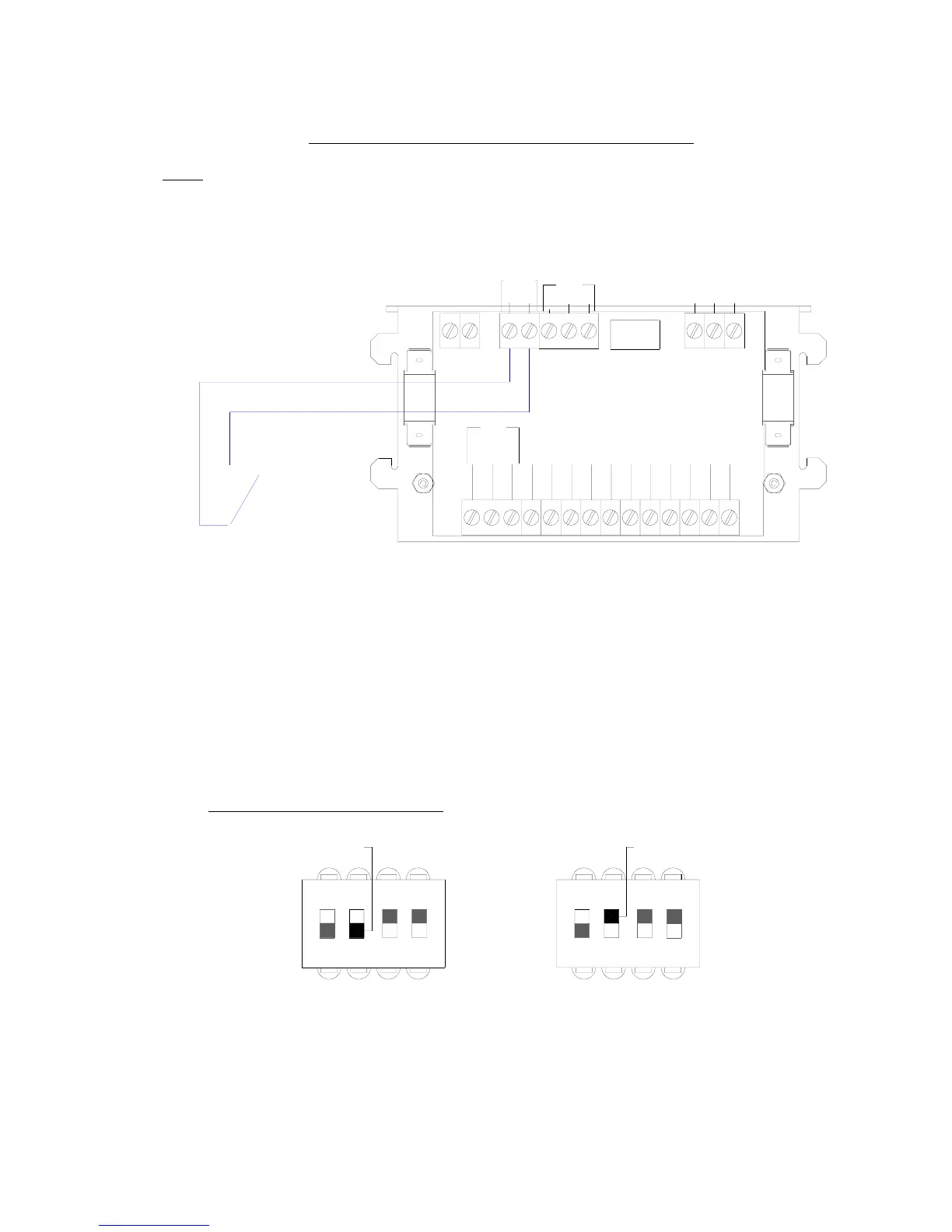

The low air pressure switch connections are to Air Switch "A" and "B" and can be found on the
terminal board mounted in the rear section of the enclosure. (See Below)
Low Air Configuration SW2 (No 3)
SW2
1 2
4
3
ON
Disabled
SW2
1
3
2
4
ON
Enabled
Adjust the Air Pressure Switch to suit the application.
See specification sheet to suit the printer, should be in the front of this manual.
Ensure the Dip Switch settings are correct. (See below)
PM
PRINT
RELAY
COM
FAULT
RELAY
NC
NO
TT
B
SWITCH
A
AIR
COM
N/C
TRK 293709 Issue 4
D1F1 F2 D2 S- P+P-S+
24VDC
G5V-1
OMRON
N/O
EL N
N/O
COM
To Next Page
