WIRING TO WIEGAND DEVICES ON CORE SERIES SMART HUBS
The extra Auxiliary I/Os on the 4-Port and 8-Port Boards are helpful for wiring
Wiegand Devices, however any I/O pair may be used (for example, I/O 1-2).

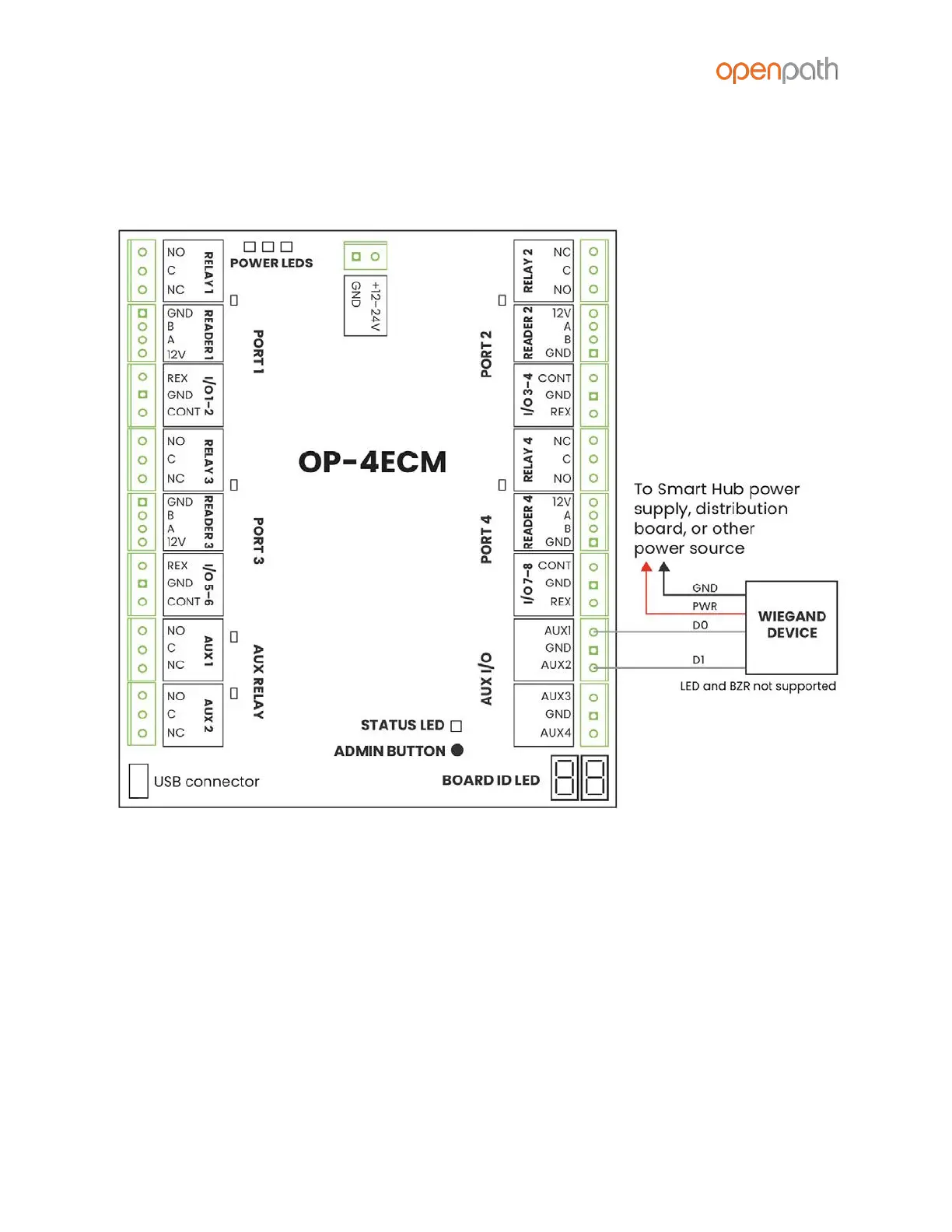

Figure 16: Wiring a Wiegand Device to a Core Series Smart Hub
To configure Wiegand Devices in the Control Center:
6. Go to control.openpath.com and log in
7. Go to Hardware > ACU Management, then click on the ACU to edit it
8. Click on the Ports tab
9. Click Port next to the first input of the I/O pair with a Wiegand device
configured (in this example, AUX1)
10. Select Wiegand Device from the Input Type dropdown, then click Save
This will label the subsequent input as Wiegand Device (Extended) and disable it
from editing. Inputs cannot be changed if they are already assigned to an entry.
