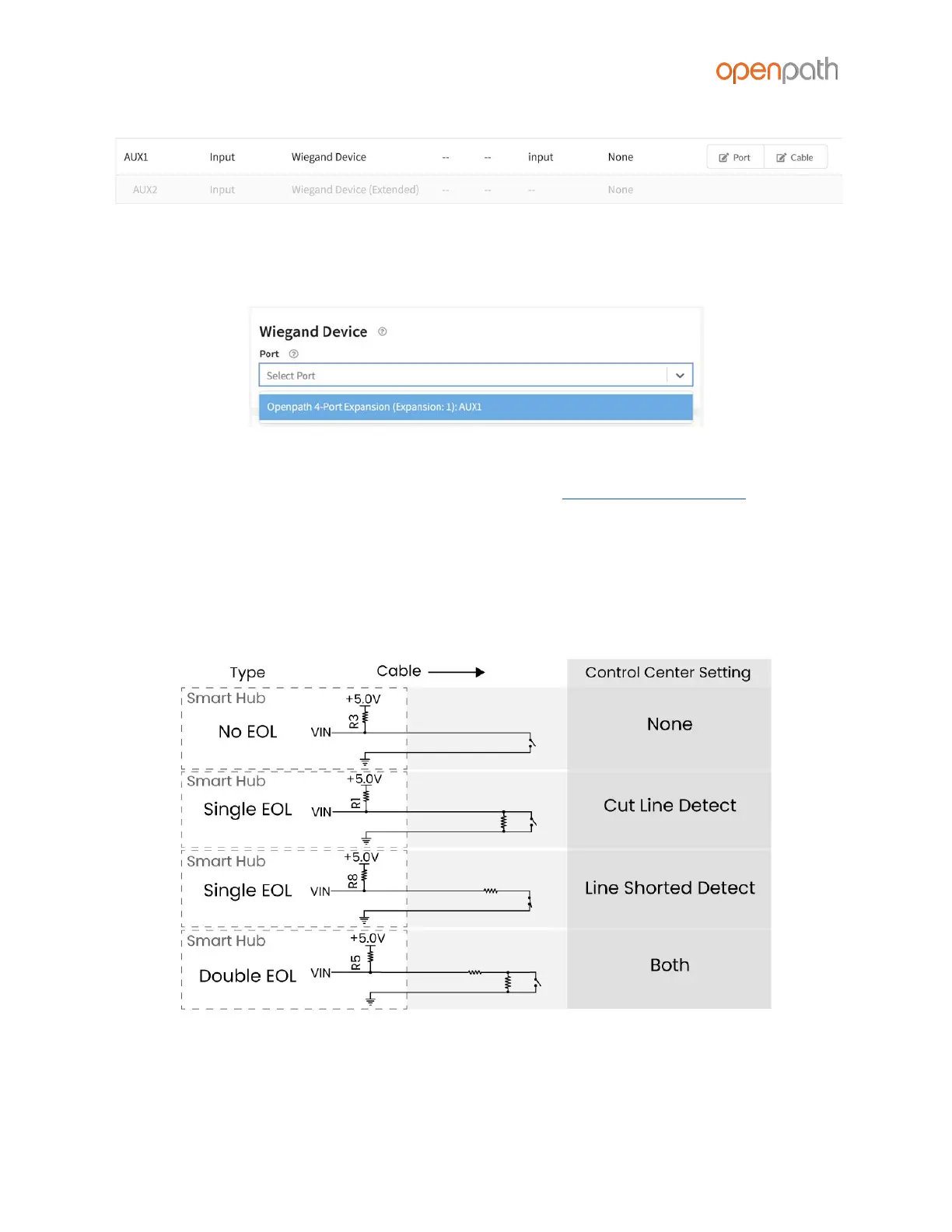

Figure 17: Input settings in the Control Center
Once the Wiegand Device is configured on the ACU, it can be assigned to an entry.
Figure 18: Assigning a Wiegand Device to an Entry
For more information on creating Entries, refer to the Openpath User Guide.
END-OF-LINE SUPERVISION
4-Port and 8-Port Board inputs have support for user-installed single or double 1k
ohm termination. This lets you monitor cut or shorted lines and create alerts and
rules in the Control Center. The input settings in the Control Center must match the
physical wiring configurations.
Figure 19: EOL configurations and settings
