INSTALLING CONTROLLER BOARD WITH 24V LOCKING HARDWARE
For a UL Listed System, the standalone Controller Board must be mounted in a
LifeSafety Power E1 enclosure with an FPO75 power supply.
If you purchased the Controller Board separately and are using 24V locking
hardware, we recommend using the LifeSafety Power E1 enclosure, FPO75 power
supply (or FPV4 power supply), B100 secondary power supply, and C4 power control
module.
1. Follow all LifeSafety Power instructions for installing the FPO75 (or FPV4), B100,
and C4 in the enclosure
2. Mount the Controller Board using the provided back plate
3. Connect the B100 secondary supply to the Controller Board
IMPORTANT: Verify that the jumper on the B100 is set to 12V
4. Mount the enclosure according to mounting instructions above

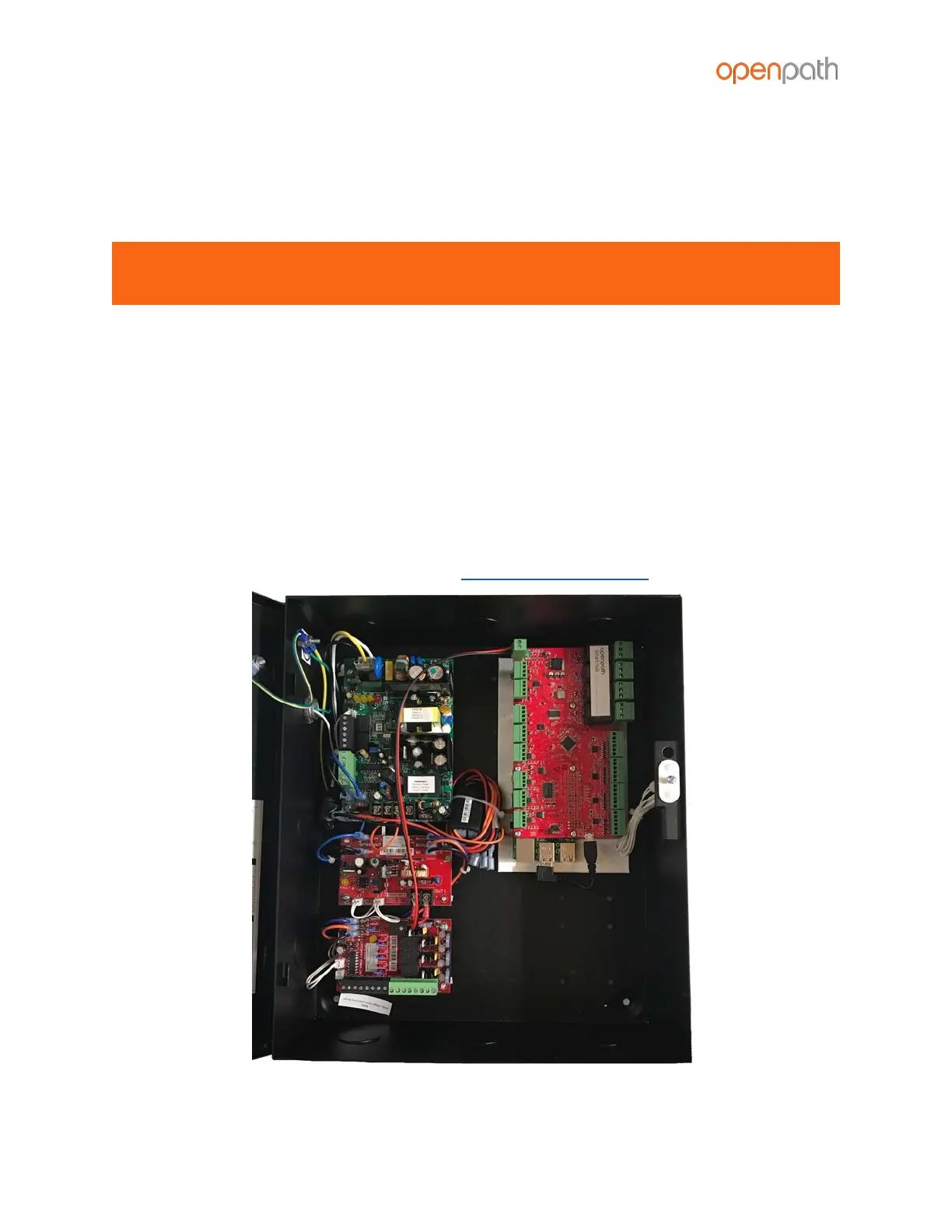

Figure 3: First gen 12/24V Smart Hub configuration
