OPENTEXT Tableau T356789iu - Power Requirements

Tableau Forensic Universal Bridge T356789iu
The Information Company 5

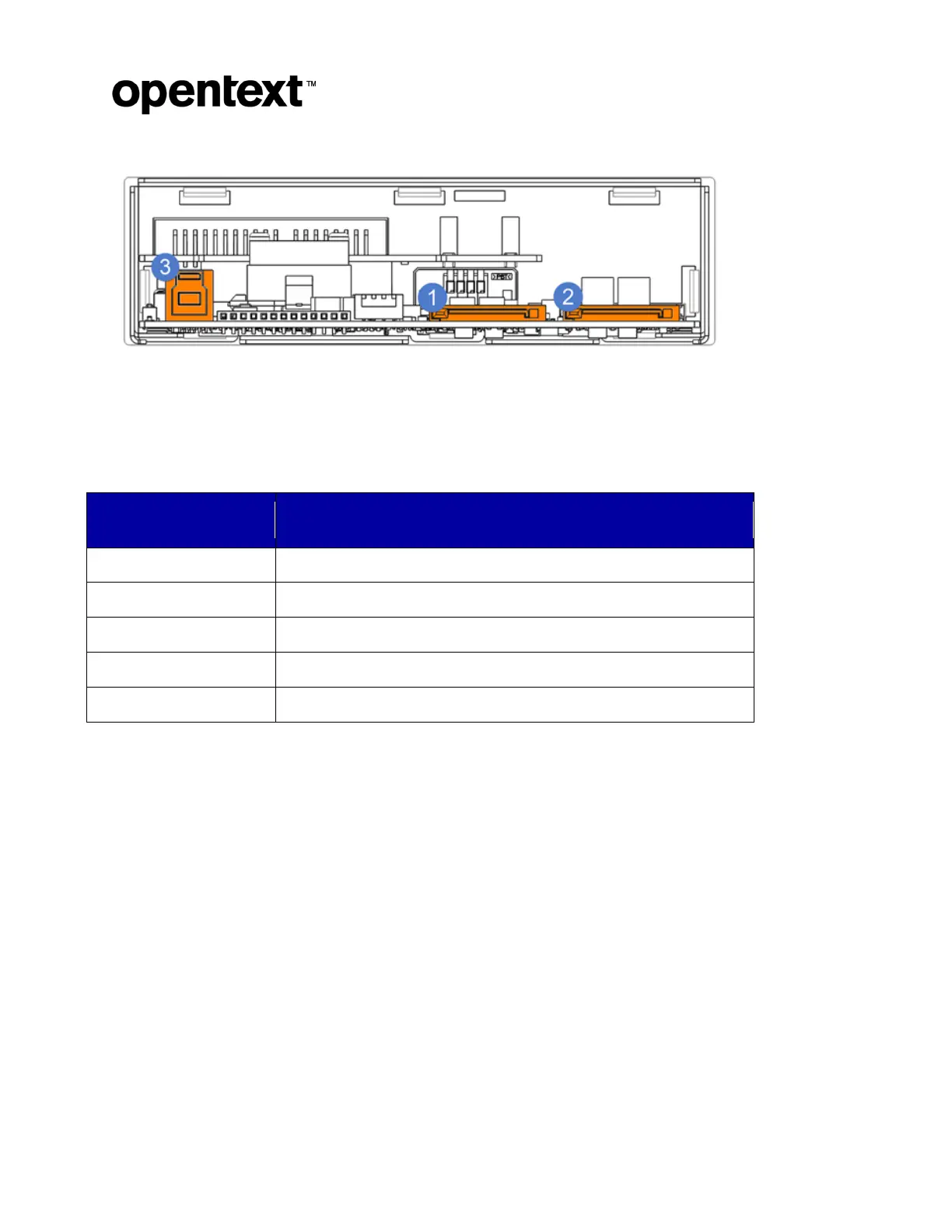

1. SATA power connector 1
2. SATA power connector 2
3. USB 3.0 female connector
The Universal Bridge kit includes the following device cables:
Model
Description
TC2-8-R2
Molex to 3M drive power cable: 8"
TC4-8-R2
Unified SATA/SAS signal and power cable (3M-style): 8"
TC6-8
IDE cable: 8"
TC-USB3
USB 3.0 A to B cable: 6'
TC7-9-9
FireWire 800 9-pin to 9-pin cable: 6'
A PCIe device cable is included with optional Tableau PCIe adapters (see the Tableau
PCIe Adapters web page at
https://security.opentext.com/tableau/hardware?types=Adapters for more information).
OpenText does not provide SATA power or USB 3.0 host computer cables with the
Universal Bridge. The SATA power cables are provided by the computer power supply,
and the USB 3.0 host cable varies in length and connector type depending on the size of
the computer, the location of the bridge, and the USB 3.0 controller. Care should be
taken by the integrator to minimize cable length and to route the USB 3.0 cable away
from possible sources of interference.
3.2 Power requirements
The internal circuitry of the Universal Bridge typically consumes approximately 10.0W of
power during normal operation: 8.2W from the +5V rail for internal logic and 1.8W from
the +12V rail for the internal cooling fan. Power for external source drive connections is
also provided, as shown in the table below.
