Oppermann Regelgeräte KRM - Installation

Duct Smoke Detector KRM
6 | 9 | Fire Protection | Data sheet No. 41300 | Version 06-2012

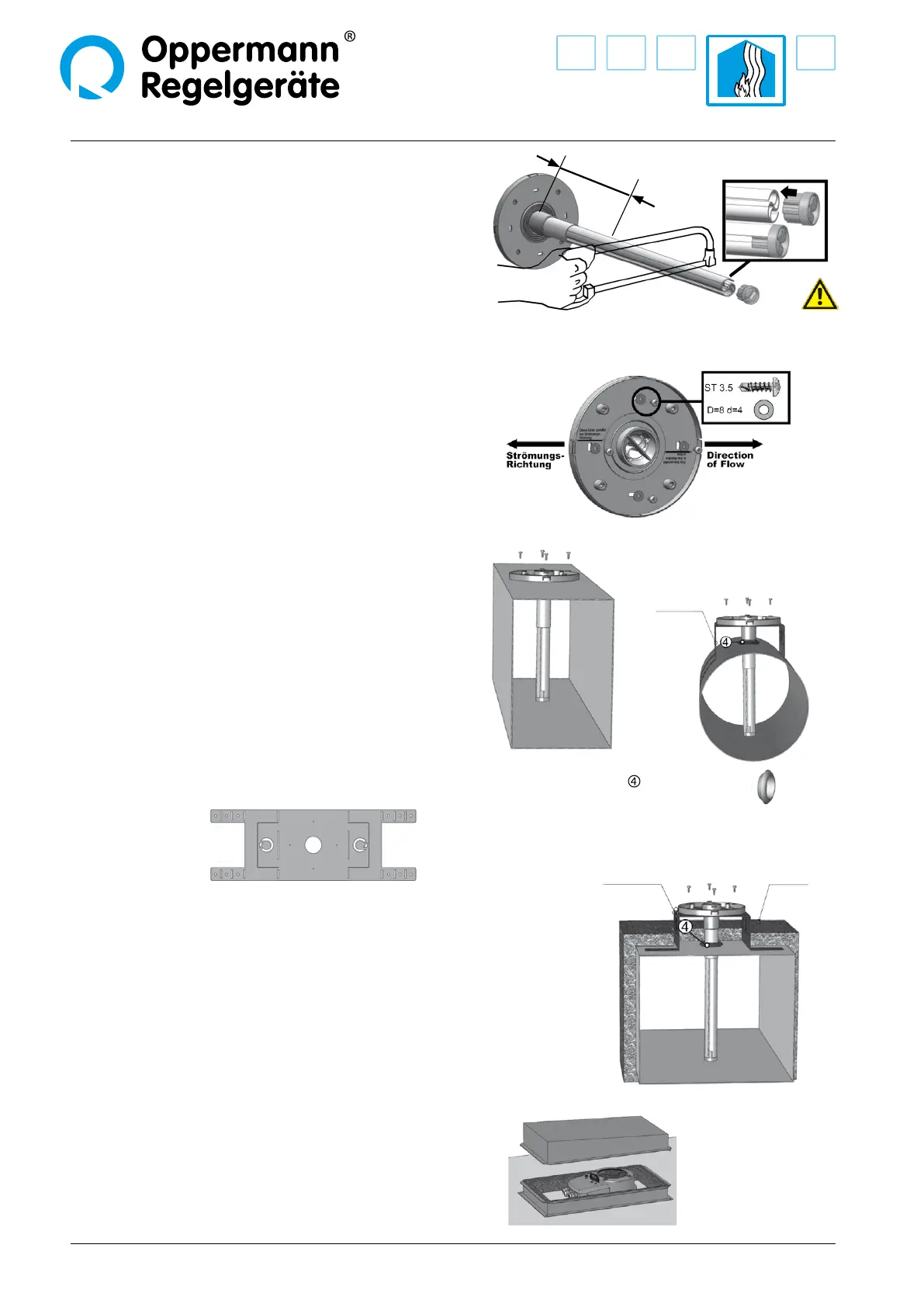

Installation
1.
Drill a hole 43 – 44 mm in diameter at the intended mounting location.
Note: Installation of the TurboTube measuring tube is possible either from
the top, bottom or side of the channel for all duct
cross-sections (for round ducts as well).
2.
• Determine how long the measuring tube must be.
• If necessary, shorten the tube. Minimum length 160 mm.
• Deburr the cutting face and put the end plug back on up
to the stop collar.
Note: Depending on delivery batch, either the transparent end caps
displayed here or black end caps with a slightly dierent geometry will be
included in the delivery.
3.
• Determine the direction of ow and t the adapter plate so that
the line on the adapter plate under the text ”Strömungsrichtung” is
parallel to the ow direction.
• Four self-tapping screws serve for attaching it to the sheet metal
duct (not included in delivery).
4. Installation on a rectangular air duct
• see picture at right
5. Installation on a circular air duct
• For mounting on a circular air duct use mounting bracket type KS
and the rubber bushing
. Thanks to the bend
perforations they can be adapted to a round duct.
The type KS mounting
bracket is supplied at.
6. Installation on air ducts with insulation
• Use the rubber bushing and insert it into the ø 43 – 44 mm
open ing in the air duct.
• Install the mounting bracket.
• Insert the assembled adapter plate into the measuring tube by
sliding the measuring tube through the grommet, and screw the
adapter plate onto the mounting bracket using the 4 self-tapping
screws. Then the insulation can be installed.
7. Installation outdoors or in a cold environment
• As protection for smoke detectors which are exposed to the open
air or in a cold environment there is a special WDG type splash-proof
housing. This enclosure prevents the warm air in the smoke detector
duct from condensing.
The interior of the housing is insulated with
foam rubber.
min. 160 mm
Mounting
bracket
Rubber bushing
inner
Mounting bracket Insulation
outer
Attention: Operation without
end plug not permitted.
