Optex FTN-R User Manual

14

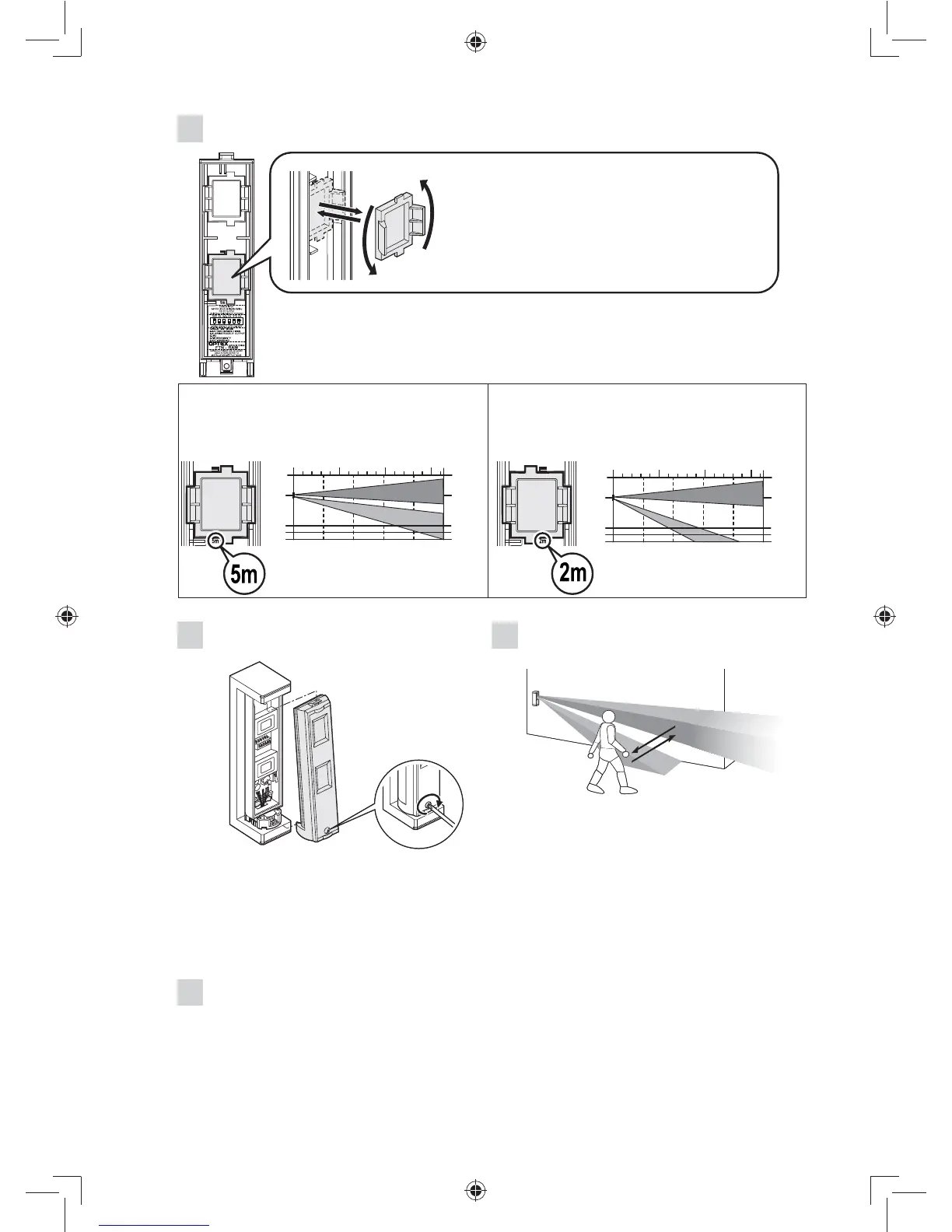

Determine the detection length. (2 m or 5 m)
If 2 m is required, rotate the lower lens
180 degrees.
Note>>
Do not remove the upper lens.•
5 m detection length
(Factory default)
2 m detection length
Side view
0' 5' 10' 15'
0.8
0
(m)
1.0
1.2
2'7"
0'
(ft.)
3'3"
3'11"
102345
(m)
(ft.)
0' 5' 10' 15'
2'7"
0'
(ft.)
3'3"
3'11"
0.8
0
(m)
1.0
1.2
(ft.)
102345
(m)
Side view
15
Attach the main unit cover.
Note>>
To prepare for walk test, check that DIP
switch 1 (WALK TEST MODE) is set to
“ON (TEST)” before attaching main unit
cover.
•
16
Perform walk test.
For details, refer to page 13.
17
After walk test is complete, set DIP
switch 1 (WALK TEST MODE) from
“ON” to “OFF”.
Note>>
The battery life will be shortened unless
the DIP switch 1 is set to “OFF”.
•
- 10 -
