Optex FTN-R User Manual

6
Open the knockout.
Wiring knockout
(For side-by-side method)
Main unit
(Back surface)
Wiring knockout
(For top-to-bottom
method)
Separate box
(Back surface)
Wiring knockout
(For side-by-side method)
Main unit
(Back surface)
Wiring knockout
(For top-to-bottom
method)
Separate box
(Back surface)
Separate box
Wall mounting
knockout
Wall mounting
knockout
Wiring
knockout
Separate box
Wall mounting
knockout
Wall mounting
knockout
Wiring
knockout

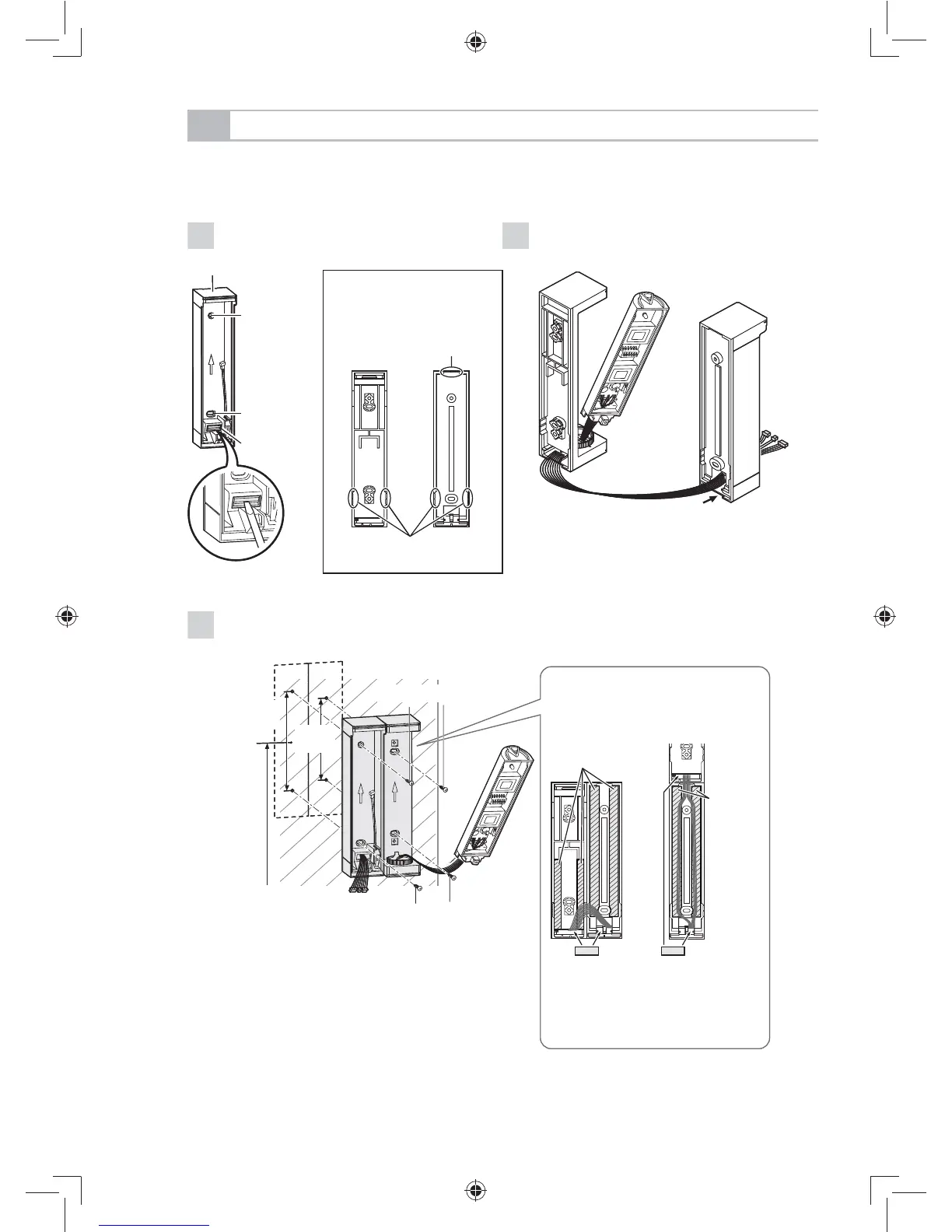

2-5 SIDE-BY-SIDE AND TOP-TO-BOTTOM METHOD
For the stacking method, refer to page 7.
7
Pull the wire connectors through
wiring knockout.
8
Mount the bracket and the separate box to the wall.
Wiring
Side-by-side
method
Screw (3 × 20 mm)
Screw (3 × 20 mm)
Top-to-bottom
method
Double-
sided tape
Sponge Sponge
Mounting
height:
0.8 – 1.2 m
(2'7" – 3'11")
83.5 mm
(3.29")
Note>>
Be careful not to pinch wires.•
Wiring
Side-by-side
method
Screw (3 × 20 mm)
Screw (3 × 20 mm)
Top-to-bottom
method
Double-
sided tape
Sponge Sponge
Mounting
height:
0.8 – 1.2 m
(2'7" – 3'11")
83.5 mm
(3.29")
Note>>
Be careful not to pinch wires.•
100 mm
(3.94
"
)
Double-sided tape
