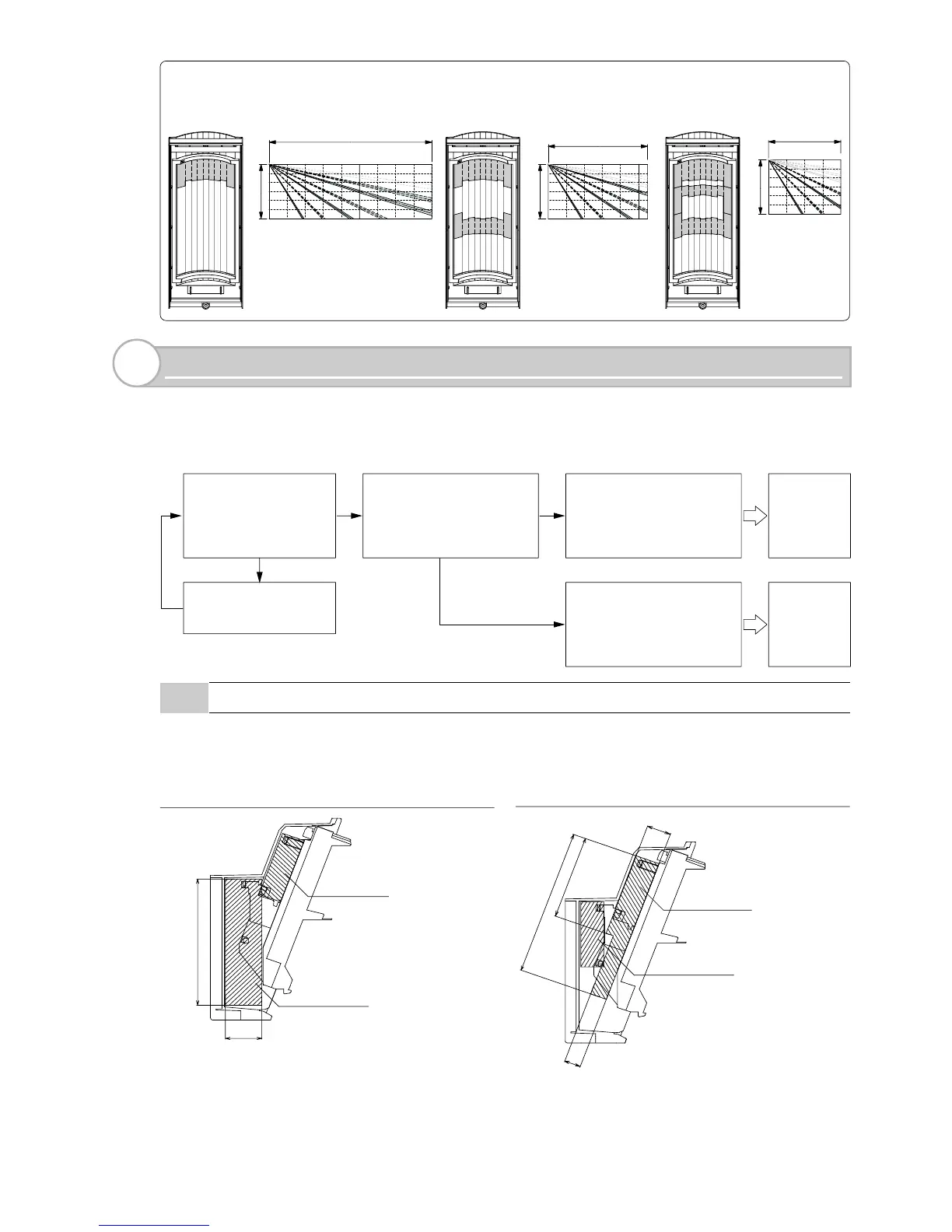

-3-
To use HX-40RAM, transmitter and battery should be prepared.
First check the following flowchart.
PREPARATIONS
2
9.0 m (30 ft.)
3.0 m (10 ft.)
5.5 m (18.3 ft.)
3.0 m (10 ft.)
4.0 m (13.3 ft.)
3.0 m (10 ft.)
1
3
2
11
2
Yes Yes
No
No
• transmitter size • battery type
• battery preparation • Reference
Is it possible to
accommodate the
transmitter in the space
between Base and Main
unit (refer to 2-1)?
Change the transmitter.
Is the battery in the transmitter
CR123, CR2, or 1/2AA?
It is possible to share the
batteries of HX-40RAM.
Prepare the required batteries
which are the same type as
used in the transmitter.
It is not possible to share the
batteries of HX-40RAM.
Prepare the required batteries
for HX-40RAM.
Refer to
“Battery
Sharing
Possible
case” in 2-2.
Refer to
“Battery
Sharing
Impossible
case” in 2-2.
Apply area masking seal to limit the detection length. Note that there are three
different types of seal.
Note : How to change detection length>>
122
33
22
80
140
15
Transmitter
Battery box
Battery box
Transmitter
Case 1) 122 × 50 × 33 mm
The transmitter that HX-40RAM can accommodate are either 1 or 2 below:
Note that a transmitter with greater dimensions than these is not applicable.
Installation position for the transmitter and the battery box differ depending on their dimensions.
Case 2) 80 × 50 × 22 mm
2-1
TRANSMITTER PREPARATION
To Next Page
