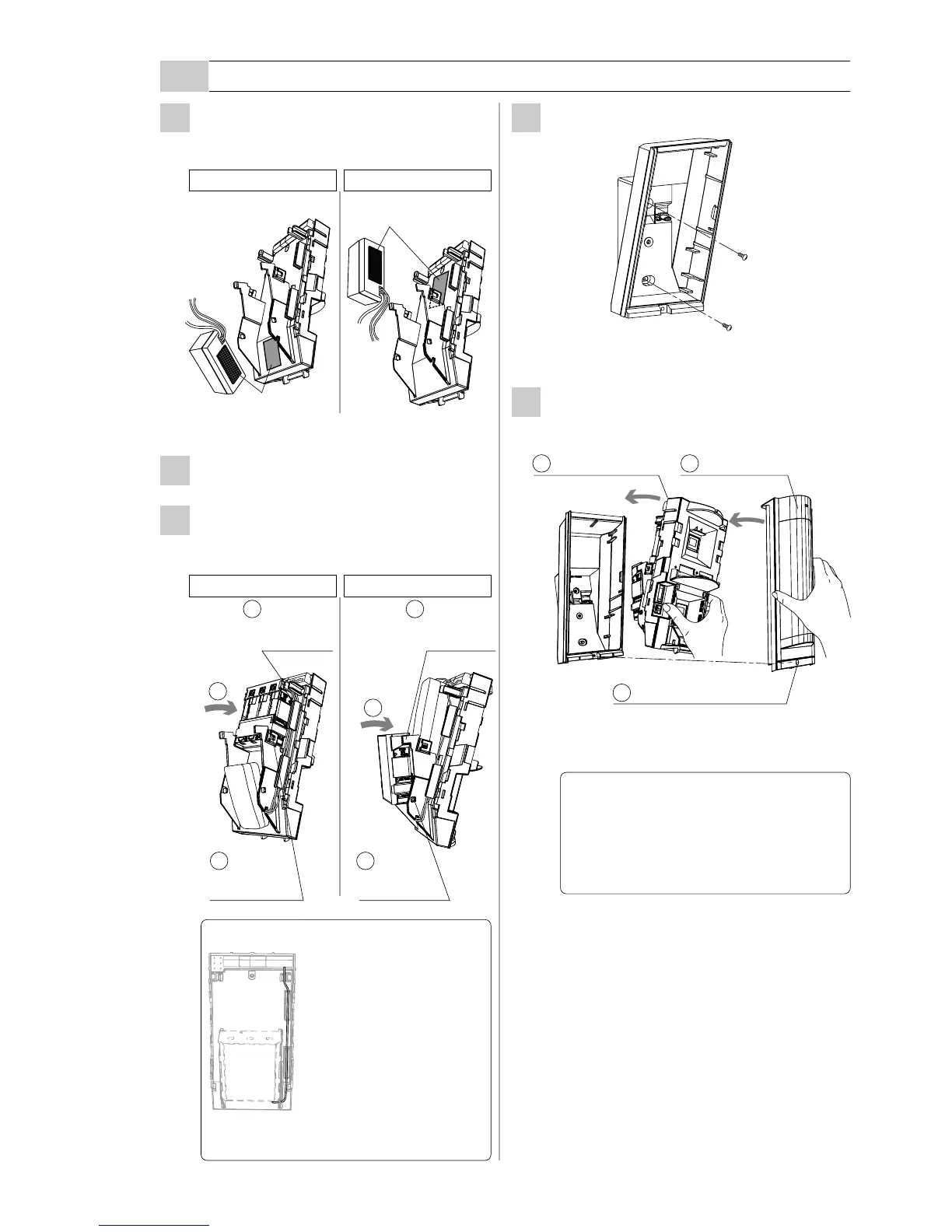

Optex HX-40RAM - 3-3 MOUNTING THE TRANSMITTER AND THE BATTERY BOX

-7-
2
1
3
2
1
3
1 2
3
Velcro tape
Velcro tape
1
2
3
4
5
Using a Velcro tape (included in the set),
fix the transmitter to the main unit.
Connect the alarm cable to the terminal
block of the main unit.
Install the battery box into the main unit
and connect the necessary wires to the
terminal block. (refer to “3-6 Wiring”)
Fix the base to the wall surface.
Mount the main unit and the lens onto
the base.
Example of Case 1
Example of Case 2
Example of Case 1
Example of Case 2
Insert and
secure here.
Engage
the claws
(at 2 places).
Engage
the bosses
(at 2 places)
Insert and
secure here.
Engage
the claws
(at 2 places).
Engage
the bosses
(at 2 places)
Place the main unit Put the cover on
Tighten the locking screws.
Caution>>
Fix the battery leads and
alarm cable through the
grooves as shown in the
diagram.
Cut off the excessive
portion of wiring to the
necessary length.
Protruding wires, if any,
may be caught by the
base.
Caution>>
If the main unit does not easily fit on
to the base, the transmitter may be in
contact or the wiring may have
become caught.
(See 2-1) (See 2-1)
3-3
MOUNTING THE TRANSMITTER AND THE BATTERY BOX
