PUSH
TO OPEN
OA-603
OA-603
Position Sensor
Activate Input
Safety Input
Yellow
Blue
Door Controller
Motor
Red
+ -
Black
Brown
Orange
POWER
12-24 AC
12-30 DC
OC-904C
Sensor Cable
Green
Stall Input
Purple
Activate Signal
(N.O.only)
Relay1
Output
Relay2
Delaye
d
Output
Time Delay Module
Activation
Input
Knowing Act
Devices
(i.e.Push Plate)
Push Plate
OR
Electric
Lock
75 (3")
38.5 (1 1/2)
26 (1")
(0.5～10sec)
SAFETY
OUTPUT
ACTIVATE
OUTPUT
MOTOR
INPUT
YELLOWBLUE
RED
BLACK
ORANGE
BROWN
:
:
:
:
POWER:AC 12‑24V,DC 12‑30V
N.O. N.C.
Auto
Knowing
Act
OC‑904C
SAFETY
OUTPUT
HOLD TIME
MaxMin MaxMin
SAFETY
RELAY CONTACT
ACTIVATION
OPERATION
5728760
POWER
:
ACTIVATE
INPUT
PURPLE
DIRECTIONAL PLUG
WIRING
1 2 3 4
(0.5～10sec)
STALL
OUTPUT
HOLD TIME
N.O. N.C.
STALL
RELAY CONTACT
STALL
OUTPUT
GREEN
:
FUTURE
DEVELOPMENT
Power Supply 12 - 24V AC, 12 - 30V DC
Current Draw 500mA max.*
Output Activate Output : Form A Relay 50V, 0.1A(Resistance Load)
Safety Output : Form C Relay 50V, 0.1A (Resistance Load)
Stall Output : Form C Relay 50V, 0.1A (Resistance Load)
Relay Hold Time(Safety&Stall Output only) 0.5 to 10s
Response Time < 0.3s
Operation Indicator Green: Standby
Red: Door Opening
Orange: Lockout
Operating Temperature -20 - +55degrees (-4F - +131Fdegrees)
Weight 50g (1.8oz.)
Accessories 1 Two sided tape
2 T-tap connector
*When a unit of the 2 OA-603 and 1 OC-904C used.
OUTER DIMENSIONS
SPECIFICATIONS
[mm (inch)]
WIRING
The specifications herein are subject to change without prior notice due to improvements.

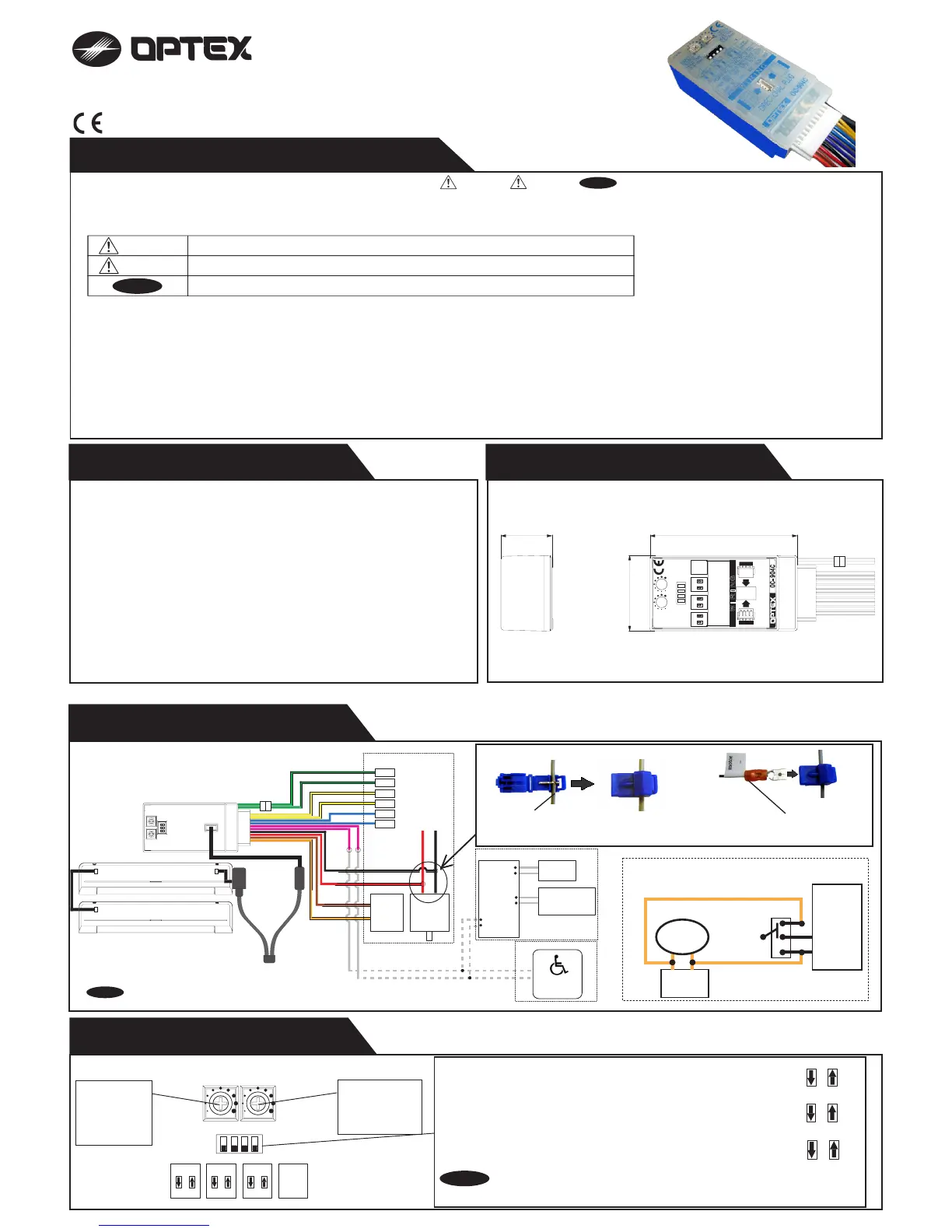

OC-904C
Swing Door
Sensor Controller
ADJUSTMENT
Dipswitch Settings
INSTALLATION
MANUFACTURER'S STATEMENT
Use the T-tap connector unless there are wiring terminals
Stall Output
Hold Time
Factory setting
: 0.5sec
Safety Output
Hold Time
Factory setting
:0.5sec
3 ACTIVATION OPERATION
(factory setting:Auto)
If uses push button for activate,select the knowing act.
1 SAFETY RELAY CONTACT
(factory setting:NO)
Choose the Relay Contact.
2 STALL RELAY CONTACT
(factory setting:NO)
Choose the Relay Contact.
4 FUTURE DEVELOPMENT(NOT USED)
(0.5-10sec)
(0.5-10sec)
SAFETY
OUTPUT
HOLD TIM
E
MaxMin MaxMin
1 2 3 4
STALL
OUTPUT
HOLD TIME
N.O. N.C. Auto
Knowing
Act
SAFETY
RELAY CONTACT
ACTIVATION
OPERATION
N.O. N.C.
STALL
RELAY CONTACT
FUTURE
DEVELOPMENT
For Knowing Act application,
Connect purple wire to Activate output from push button.
The approach side sensor will be inactive on full-closed position with this function.
OC-904Cmotor wire
5913001 2008.3
2-1
For ease of installation and proper operation read thru this manual (especially
) prior to installing and adjusting the sensor system.
Failure to read and follow the instructions in this manual may cause improper sensor operation resulting in serious injury or death.
This product is a non-contact activating switch intended for door mounted of an automatic door.
Do not use it for any other applications; otherwise proper operation and safety cannot be guaranteed.
1.Set door speeds and verify proper operation of door manufacturer’s equipment prior to applying power to the sensor system.
2.Do not install the sensor where it might be directly sprayed with rainwater.
3.Verify proper wiring prior to applying power to the sensor system to prevent damage to equipment.
4.When setting the sensor’s area pattern, make sure there is no traffic around the installation site.
5.Do not attempt to rebuild or repair sensor heads or control unit. Contact an address in this manual for replacement products.
6.Only use the sensor as specified in the supplied instructions.
7.Walk test the installation to verify operation is in compliance with all local laws, codes and standards of your country.
8.Upon completion of installation and adjustments, instruct the owner/operator on proper operation of the door and sensor system.
Identify any switches/breakers that will place the door out of service when unsafe or improper operation is identified.
WARNING
CAUTION
NOTE
Disregard of warning may cause the improper use causing death or serious injury of person.
Special attention for the setting and adjustment of section of this symbol is required.
Disregard of caution may cause the improper use causing injury of person or damage to
object.
How to use T-tap connector
Close connector
Door
Controller
motor wire
Hold Open
ACT
COM
ACT
OC-904
Auto
Off
Standard Optional On / Off / Hold Switch
OEM
Door
Control
Motion
Sensor
For manufacture specific connections
refer to the Connection Matrix.
To Next Page
