33
Torque on small pulley [Nm]
→

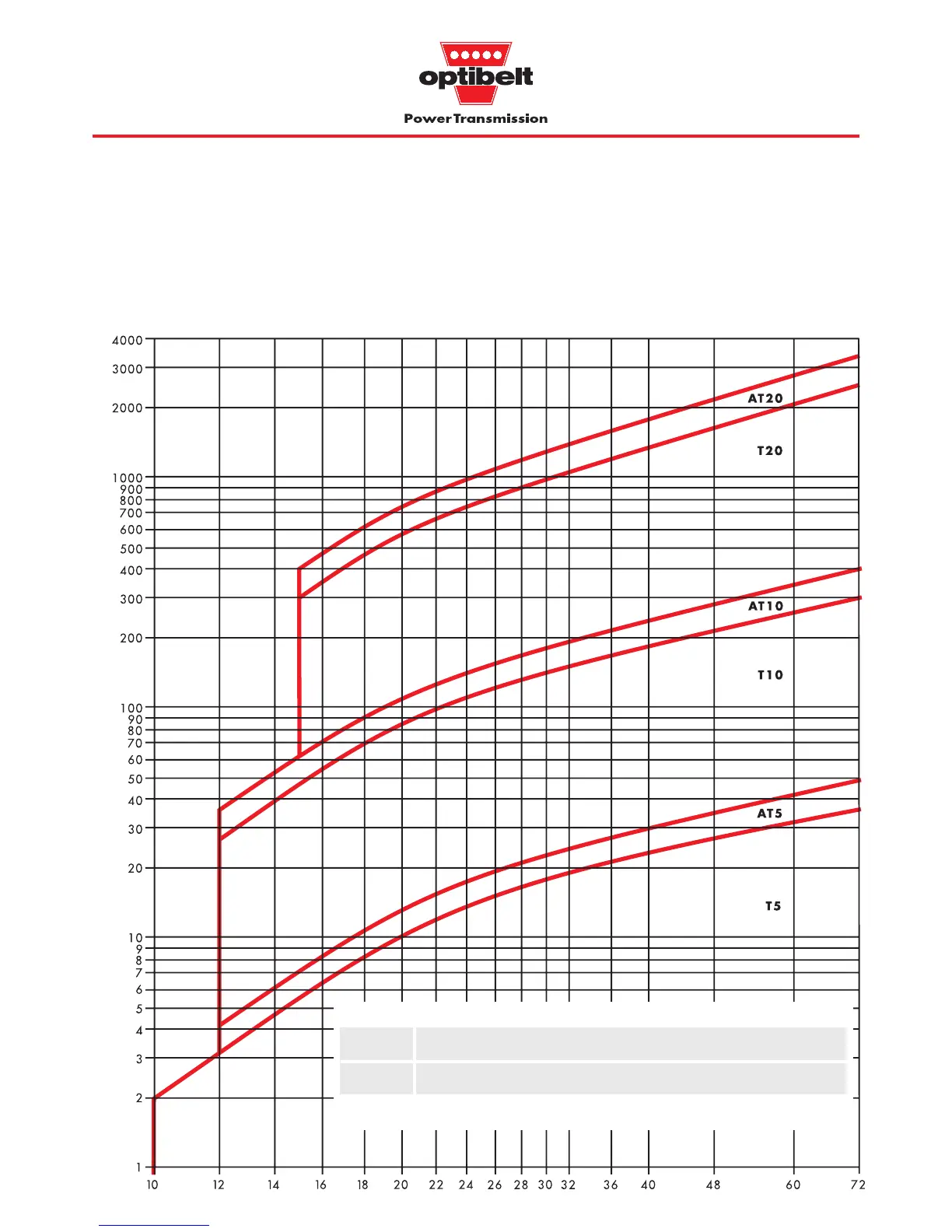

4.2 ZRL graph of torque
Torque/speed graph for section selection of open-ended optibelt ZRL-M (z
emax
= 12)
and
optibelt ZRL-V joined endless timing belts (z
emax
= 6)
In each case, the maximum width from the combination of standard
timing belts and standard pulleys has been assumed (see
Table 4.2).
The speed of the ZRL-V timing belt should not exceed 2 m/s. Further
notes will be found on page 37.
Number of teeth on small pulley z
k
→
Section XL L H XH T5 T10 T20 AT5 AT10 AT20* 5M* 8M* 14M*
b
St
** (mm) 9.5 25.4 76.2 101.6 25 50 100 25 50 100 50 85 115
Table 4.2: Maximum standard width
* Non stock, but 8M and 14M can be supplied as ZRL-M ex stock
** Maximum width from standard timing belt and standard pulley
Graph 4.2: ZRL torque ranges
