Optibelt ZRP - Clamping Plates

91
noitangiseD
hctiP
t
)mm(
htdiw
b
)mm(
lairetaM
B
)mm()mm(
L
)mm(
e
)mm(
H
)mm(
d
)mm(
thgieW

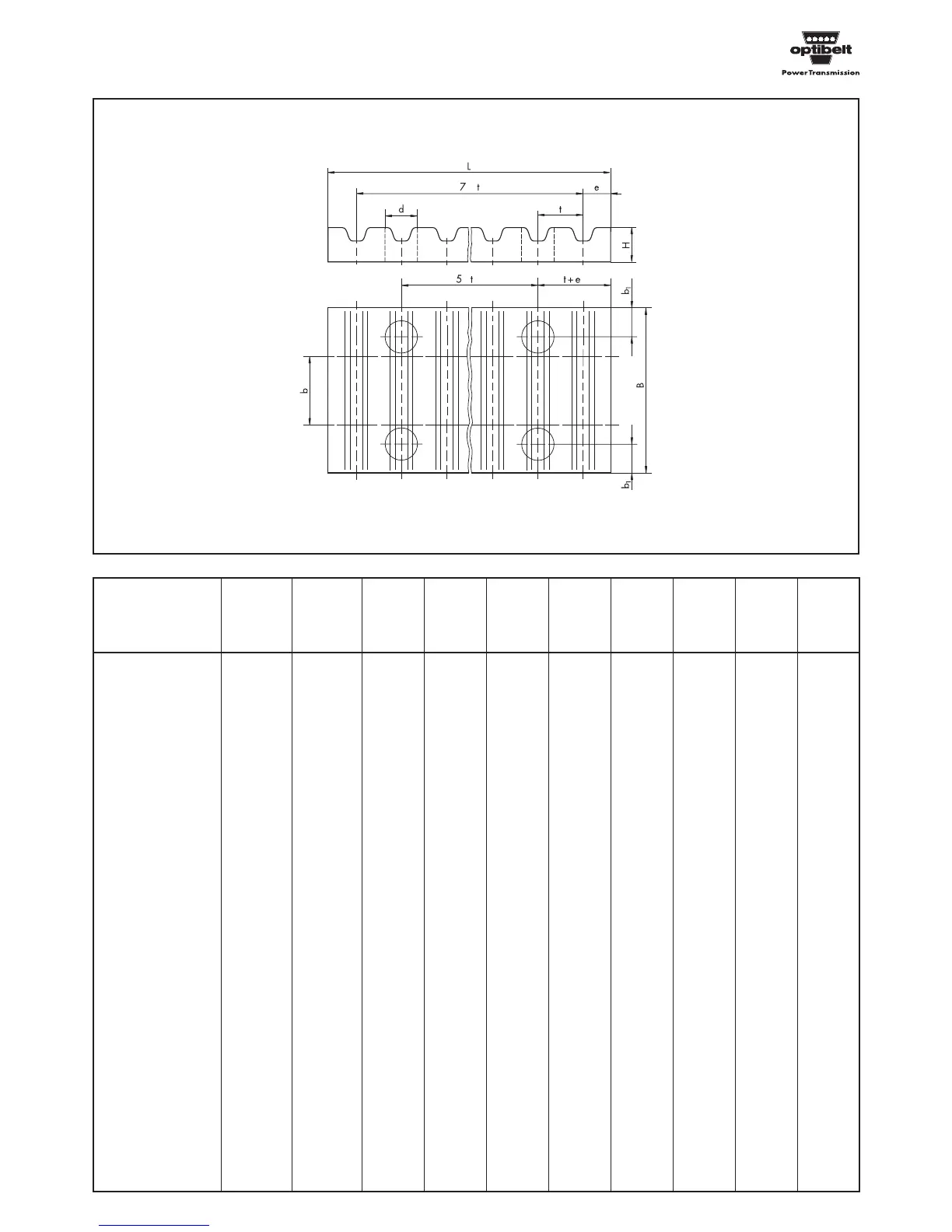

optibelt CP Clamping plates
Further sizes on request. O Non stock items Al = Aluminium
b
1
CP-XL 025 5.080 6.35 Al 25.5 6.0 42.5 3.5 8.0 5.5 0.020
CP-XL 037 5.080 9.53 Al 28.5 6.0 42.5 3.5 8.0 5.5 0.025
CP-XL 050 5.080 12.70 Al 32.0 6.0 42.5 3.5 8.0 5.5 0.027
CP-XL 075 5.080 19.05 Al 38.0 6.0 42.5 3.5 8.0 5.5 0.032
CP-XL 100O 5.080 25.40 Al 45.0 6.0 42.5 3.5 8.0 5.5 0.038
CP-L 037 9.525 9.53 Al 36.0 8.0 76.6 5.0 15.0 9.0 0.095
CP-L 050 9.525 12.70 Al 39.0 8.0 76.6 5.0 15.0 9.0 0.104
CP-L 075 9.525 19.05 Al 45.0 8.0 76.6 5.0 15.0 9.0 0.121
CP-L 100 9.525 25.40 Al 51.5 8.0 76.6 5.0 15.0 9.0 0.140
CP-L 150 9.525 38.10 Al 64.0 8.0 76.6 5.0 15.0 9.0 0.177
CP-L 200 9.525 50.80 Al 77.0 8.0 76.6 5.0 15.0 9.0 0.215
CP-H 050 12.700 12.70 Al 45.0 10.0 106.9 9.0 22.0 11.0 0.050
CP-H 075 12.700 19.05 Al 51.0 10.0 106.9 9.0 22.0 11.0 0.075
CP-H 100 12.700 25.40 Al 57.5 10.0 106.9 9.0 22.0 11.0 0.100
CP-H 150 12.700 38.10 Al 70.0 10.0 106.9 9.0 22.0 11.0 0.150
CP-H 200 12.700 50.80 Al 83.0 10.0 106.9 9.0 22.0 11.0 0.200
CP-H 300 12.700 76.20 Al 108.0 10.0 106.9 9.0 22.0 11.0 0.300
CP-H 400O 12.700 101.60 Al 134.0 10.0 106.9 9.0 22.0 11.0 0.400
CP-5M 06 5.000 6.00 Al 25.0 6.0 41.8 3.2 8.0 5.5 0.015
CP-5M 09 5.000 9.00 Al 28.0 6.0 41.8 3.2 8.0 5.5 0.018
CP-5M 15 5.000 15.00 Al 34.0 6.0 41.8 3.2 8.0 5.5 0.022
CP-5M 25 5.000 25.00 Al 44.0 6.0 41.8 3.2 8.0 5.5 0.030
CP-8M 10 8.000 10.00 Al 35.0 8.0 66.0 5.0 15.0 9.0 0.075
CP-8M 15 8.000 15.00 Al 40.0 8.0 66.0 5.0 15.0 9.0 0.085
CP-8M 20 8.000 20.00 Al 45.0 8.0 66.0 5.0 15.0 9.0 0.100
CP-8M 30 8.000 30.00 Al 55.0 8.0 66.0 5.0 15.0 9.0 0.120
CP-8M 50 8.000 50.00 Al 75.0 8.0 66.0 5.0 15.0 9.0 0.170
CP-8M 85 8.000 85.00 Al 110.0 8.0 66.0 5.0 15.0 9.0 0.250
CP-14M 25 14.000 25.00 Al 56.0 10.0 116.0 9.0 22.0 11.0 0.315
CP-14M 40 14.000 40.00 Al 71.0 10.0 116.0 9.0 22.0 11.0 0.405
CP-14M 55 14.000 55.00 Al 86.0 10.0 116.0 9.0 22.0 11.0 0.495
CP-14M 85 14.000 85.00 Al 116.0 10.0 116.0 9.0 22.0 11.0 0.860
CP-14M 115O 14.000 115.00 Al 146.0 10.0 116.0 9.0 22.0 11.0 1.195
(≈ kg)
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
