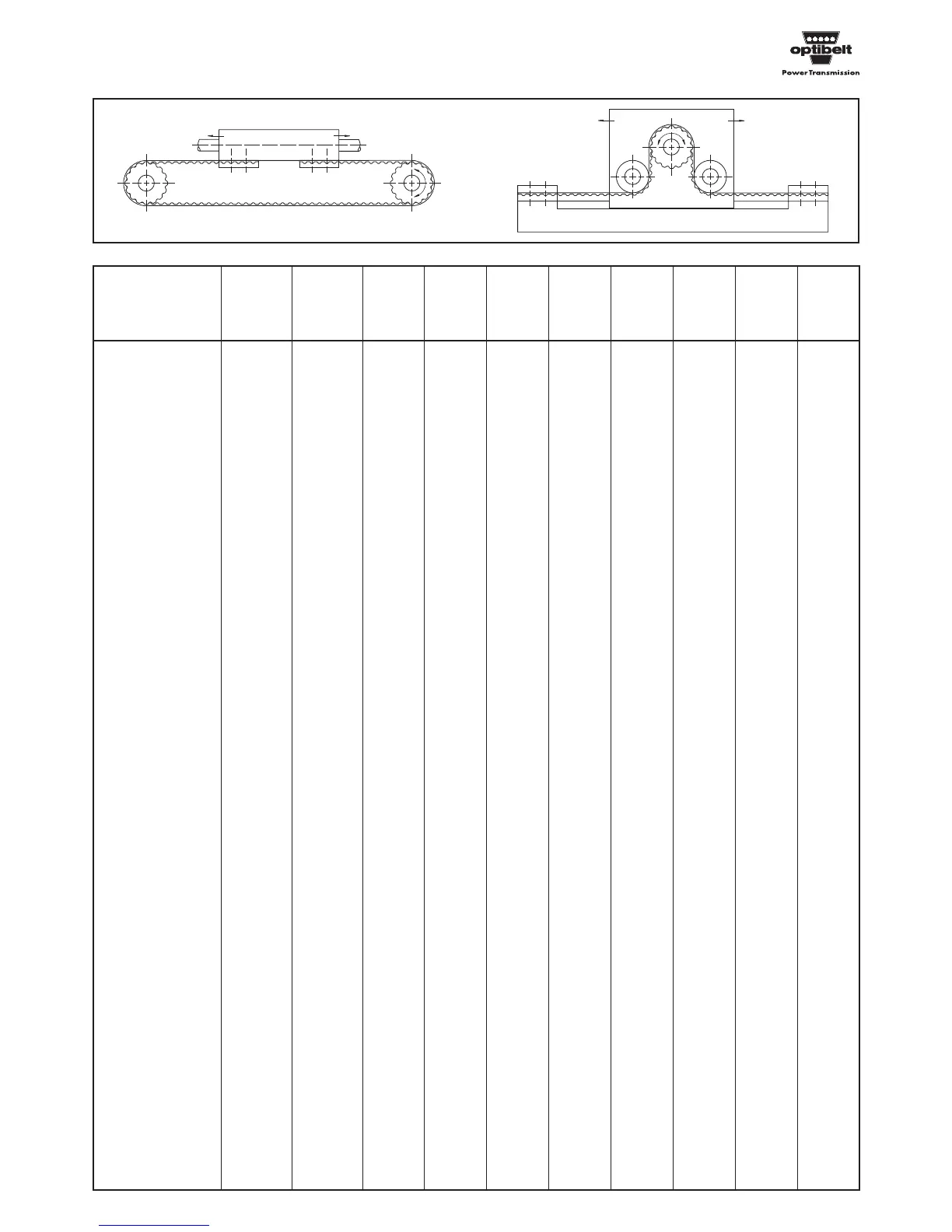

optibelt CP Clamping plates
Further sizes on request. O Non stock items Al = Aluminium
b
1
(≈ kg)
•
•
•
•
•
•
•
•
•
•• •
•
•
•
•
••• •
•
•
•
•
•
• • • • • • ••
•
•
•
•
•
•
•
•
•
•
•
•••
•
•
•
•••
•
•
•
•
••
••
•
•
•
•
CP- 6 T5 5.000 6.00 Al 25.0 6.0 41.8 3.2 8.0 5.5 0.020
CP- 10 T5 5.000 10.00 Al 29.0 6.0 41.8 3.2 8.0 5.5 0.025
CP- 16 T5 5.000 16.00 Al 35.0 6.0 41.8 3.2 8.0 5.5 0.030
CP- 25 T5 5.000 25.00 Al 44.0 6.0 41.8 3.2 8.0 5.5 0.036
CP- 32 T5 5.000 32.00 Al 51.0 6.0 41.8 3.2 8.0 5.5 0.042
CP- 50 T5O 5.000 50.00 Al 69.0 6.0 41.8 3.2 8.0 5.5 0.051
CP- 16 T10 10.000 16.00 Al 41.0 8.0 80.0 5.0 15.0 9.0 0.115
CP- 25 T10 10.000 25.00 Al 50.0 8.0 80.0 5.0 15.0 9.0 0.140
CP- 32 T10 10.000 32.00 Al 57.0 8.0 80.0 5.0 15.0 9.0 0.160
CP- 50 T10 10.000 50.00 Al 75.0 8.0 80.0 5.0 15.0 9.0 0.215
CP- 75 T10O 10.000 75.00 Al 100.0 8.0 80.0 5.0 15.0 9.0 0.290
CP-100 T10O 10.000 100.00 Al 125.0 8.0 80.0 5.0 15.0 9.0 0.370
CP- 25 T20 20.000 25.00 Al 56.0 10.0 160.0 10.0 20.0 11.0 0.385
CP- 32 T20 20.000 32.00 Al 65.0 10.0 160.0 10.0 20.0 11.0 0.450
CP- 50 T20 20.000 50.00 Al 81.0 10.0 160.0 10.0 20.0 11.0 0.570
CP- 75 T20 20.000 75.00 Al 106.0 10.0 160.0 10.0 20.0 11.0 0.755
CP-100 T20O 20.000 100.00 Al 132.0 10.0 160.0 10.0 20.0 11.0 0.940
CP- 6 AT5 5.000 6.00 Al 25.0 6.0 41.8 3.2 8.0 5.5 0.016
CP- 10 AT5 5.000 10.00 Al 29.0 6.0 41.8 3.2 8.0 5.5 0.019
CP- 16 AT5 5.000 16.00 Al 35.0 6.0 41.8 3.2 8.0 5.5 0.024
CP- 25 AT5 5.000 25.00 Al 44.0 6.0 41.8 3.2 8.0 5.5 0.031
CP- 32 AT5 5.000 32.00 Al 51.0 6.0 41.8 3.2 8.0 5.5 0.036
CP- 50 AT5O 5.000 50.00 Al 61.0 6.0 41.8 3.2 8.0 5.5 0.043
CP- 16 AT10 10.000 16.00 Al 41.0 8.0 80.0 5.0 15.0 9.0 0.110
CP- 25 AT10 10.000 25.00 Al 50.0 8.0 80.0 5.0 15.0 9.0 0.135
CP- 32 AT10 10.000 32.00 Al 57.0 8.0 80.0 5.0 15.0 9.0 0.155
CP- 50 AT10 10.000 50.00 Al 75.0 8.0 80.0 5.0 15.0 9.0 0.205
CP- 75 AT10 10.000 75.00 Al 100.0 8.0 80.0 5.0 15.0 9.0 0.280
CP-100 AT10O 10.000 100.00 Al 125.0 8.0 80.0 5.0 15.0 9.0 0.350
CP- 25 AT20 20.000 25.00 Al 56.0 10.0 160.0 10.0 20.0 11.0 0.385
CP- 32 AT20 20.000 32.00 Al 65.0 10.0 160.0 10.0 20.0 11.0 0.450
CP- 50 AT20 20.000 50.00 Al 81.0 10.0 160.0 10.0 20.0 11.0 0.570
CP- 75 AT20 20.000 75.00 Al 106.0 10.0 160.0 10.0 20.0 11.0 0.755
CP-100 AT20O 20.000 100.00 Al 132.0 10.0 160.0 10.0 20.0 11.0 0.940
