16
–5.2TnoitceS
mm5.2hctipmm5.2hctip
mm5.2hctip
mm5.2hctipmm5.2hctip
mm5hctip–5TnoitceS mm01hctip–01TnoitceS
.oNtleB
hctiP
)mm(
.oN
hteetfo.oNtleB
hctiP
)mm(
.oN
hteetfo.oNtleB
hctiP
)mm(
.oN
hteetfo.oNtleB
hctiP
)mm(
.oN
hteetfo
Standard widths b
St
(mm):
4, 6, 8, 10, 12
Standard widths b
St
(mm):
6, 8, 10, 12, 16, 20, 25
Standard widths b
St
(mm):
10, 12, 16, 20, 25, 32, 50

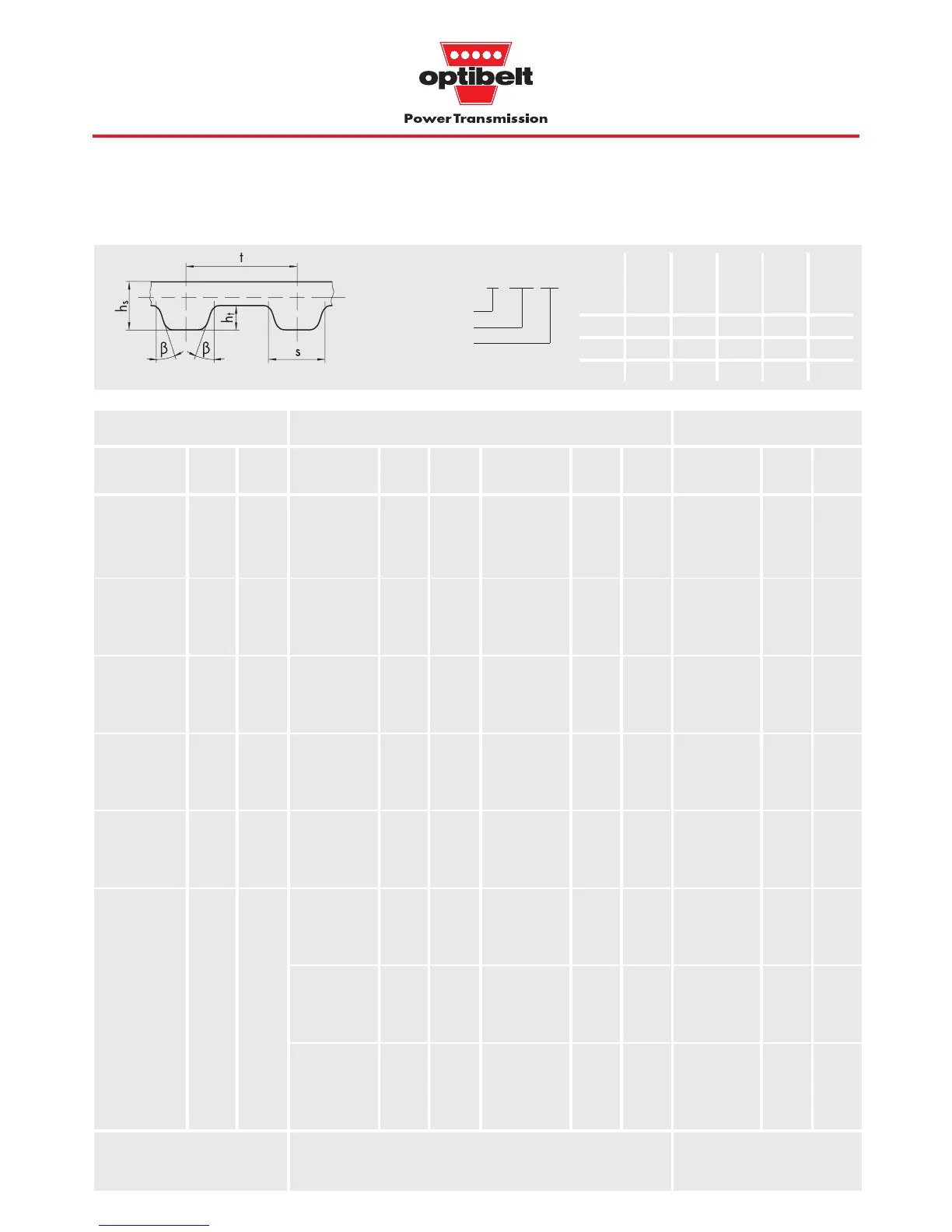

3.2 ZRM/ZRP timing belt range
optibelt
ZRM timing belts, metric sizes
Further sizes on request. * Non stock
Section Pitch Tooth Overall Tooth Tooth
depth belt width angle
thickness
th
t
h
s
s2 β
(mm) (mm) (mm) (mm) (°)
T2.5 2.5 0.70 1.30 1.50 40
T5 5.0 1.20 2.20 2.65 40
T10 10.0 2.50 4.50 5.30 40
Construction: polyurethane with steel tension cord
Table 3.2: ZRM timing belt range
L
wSt
T2.5/120 120.0 48
T2.5/160 160.0 64
T2.5/177.5 177.5 71
T2.5/200 200.0 80
T2.5/230 230.0 92
T2.5/245 245.0 98
T2.5/265 265.0 106
T2.5/285 285.0 114
T2.5/305 305.0 122
T2.5/317.5 317.5 127
T2.5/330 330.0 132
T2.5/380 380.0 152
T2.5/420 420.0 168
T2.5/480 480.0 192
T2.5/500 500.0 200
T2.5/540 540.0 216
T2.5/600 600.0 240
T2.5/650 650.0 260
T2.5/780 780.0 312
T2.5/915 915.0 366
T2.5/950 950.0 380
T5/165 165.0 33
T5/185 185.0 37
T5/200 200.0 40
T5/215 215.0 43
T5/220 220.0 44
T5/225 225.0 45
T5/245 245.0 49
T5/250 250.0 50
T5/255 255.0 51
T5/260 260.0 52
T5/270 270.0 54
T5/275 275.0 55
T5/280 280.0 56
T5/295 295.0 59
T5/300 300.0 60
T5/305 305.0 61
T5/325 325.0 65
T5/330 330.0 66
T5/340 340.0 68
T5/350 350.0 70
T5/355 355.0 71
T5/360* 360.0 72
T5/365 365.0 73
T5/375 375.0 75
T5/390 390.0 78
T5/400 400.0 80
T5/410 410.0 82
T5/420 420.0 84
T5/425 425.0 85
T5/440* 440.0 88
T5/445* 445.0 89
T5/450 450.0 90
T5/455 455.0 91
T5/460* 460.0 92
T5/475 475.0 95
T5/480 480.0 96
T5/500 500.0 100
T5/510 510.0 102
T5/525 525.0 105
T5/545 545.0 109
T5/ 550 550.0 110
T5/ 560 560.0 112
T5/ 575 575.0 115
T5/ 590* 590.0 118
T5/ 600 600.0 120
T5/ 610 610.0 122
T5/ 620 620.0 124
T5/ 625* 625.0 125
T5/ 630 630.0 126
T5/ 640 640.0 128
T5/ 650 650.0 130
T5/ 660 660.0 132
T5/ 675* 675.0 135
T5/ 690 690.0 138
T5/ 700 700.0 140
T5/ 720 720.0 144
T5/ 725 725.0 145
T5/ 750 750.0 150
T5/ 780 780.0 156
T5/ 800* 800.0 160
T5/ 815 815.0 163
T5/ 840 840.0 168
T5/ 850 850.0 170
T5/ 860* 860.0 172
T5/ 900 900.0 180
T5/ 940 940.0 188
T5/ 990 990.0 198
T5/1000 1000.0 200
T5/1075 1075.0 215
T5/1100 1100.0 220
T5/1115* 1115.0 223
T5/1140* 1140.0 228
T5/1215 1215.0 243
T5/1350* 1350.0 270
T5/1380 1380.0 276
T5/1440 1440.0 288
T10/ 260 260.0 26
T10/ 370 370.0 37
T10/ 400 400.0 40
T10/ 410 410.0 41
T10/ 440 440.0 44
T10/ 450 450.0 45
T10/ 500 500.0 50
T10/ 530 530.0 53
T10/ 550* 550.0 55
T10/ 560 560.0 56
T10/ 600 600.0 60
T10/ 610 610.0 61
T10/ 630 630.0 63
T10/ 650 650.0 65
T10/ 660 660.0 66
T10/ 690 690.0 69
T10/ 700 700.0 70
T10/ 720 720.0 72
T10/ 750 750.0 75
T10/ 780 780.0 78
T10/ 800* 800.0 80
T10/ 810 810.0 81
T10/ 840 840.0 84
T10/ 850* 850.0 85
T10/ 880 880.0 88
T10/ 890 890.0 89
T10/ 900 900.0 90
T10/ 910 910.0 91
T10/ 920 920.0 92
T10/ 950 950.0 95
T10/ 960 960.0 96
T10/ 970 970.0 97
T10/ 980 980.0 98
T10/1000* 1000.0 100
T10/1010 1010.0 101
T10/1050 1050.0 105
T10/1080 1080.0 108
T10/1100 1100.0 110
T10/1110 1110.0 111
T10/1140 1140.0 114
L
wSt
L
wSt
L
wSt
z
R
z
R
z
R
z
R
Order example for ZRM: 10 T2.5/200
Width (mm)
Section
Pitch length (mm)
•
•
•
•
•••••
•
•
•
