Optibelt ZRP - Types and Sections

8
1 Product Description
1.3 Types and sections
Type ZRM ZRP ZRL
ZRL-M ZRL-V
Construction manufactured endless open-ended joined endless
metric inch metric and inch
Section T2.5 MXL* T5 AT5 XL T5 AT5 XL
T5 T5D AT5* XL 5M* L L
T10 T10D AT10* L T10 AT10 8M* H T10 AT10 H
T20* T20D* AT20* T20 AT20* 14M* XH T20 XH
5M 8M 14M
Verzahnung ??? single, double (D) single single
Standard tension cord steel (St), MXL = Aramid (AR) steel (St), Aramid (AR)
Special tension cord Aramid (AR) —
Table 1.3: Types and sections
∗ Non stock (8M and 14M with steel tension cord can be supplied from stock)
Sections AT5; AT10; AT20 Sections 5M; 8M; 14M

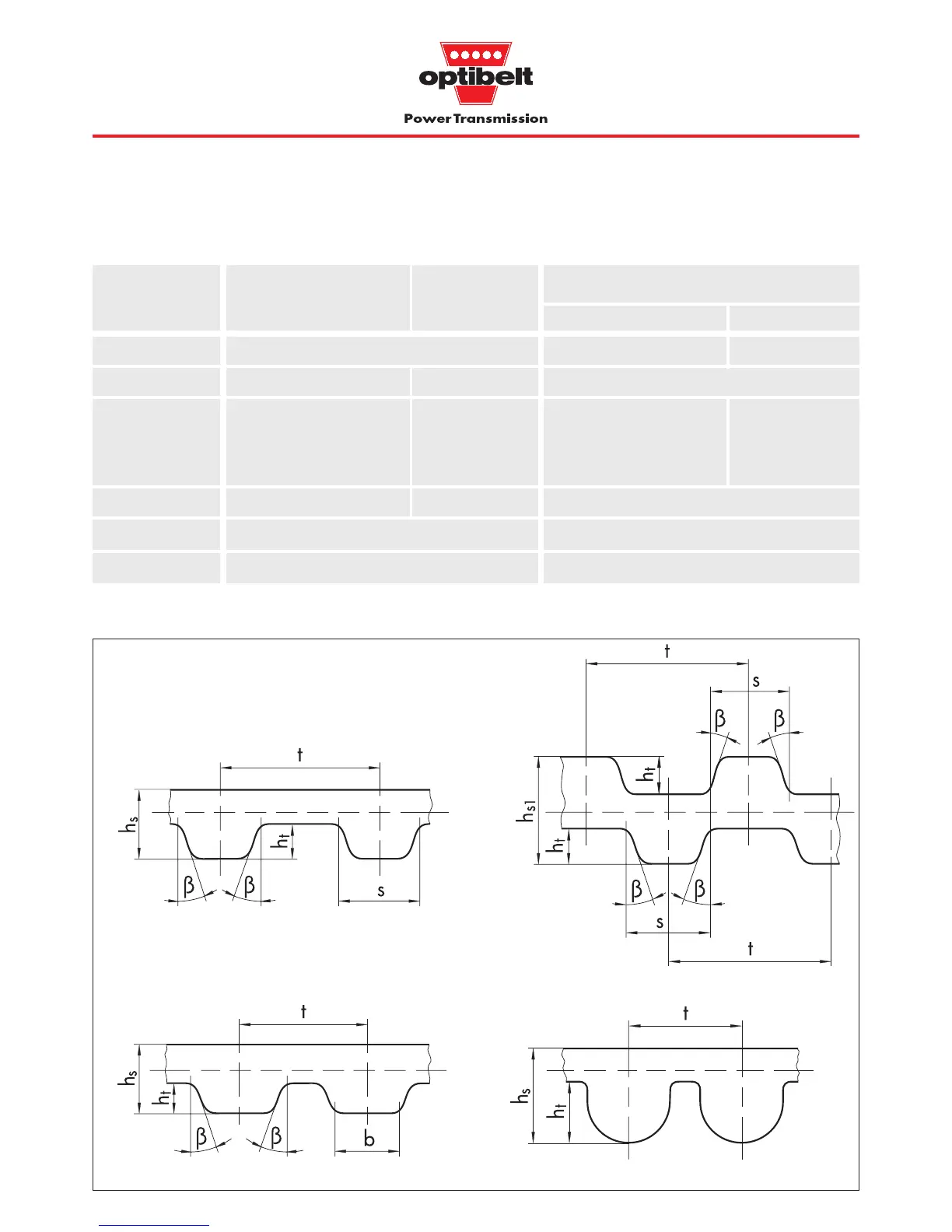

Fig. 1.5: Sections, section dimensions see Table 1.1, page 5
Sections MXL; XL; L; H; XH; T2.5; T5; T10; T20
Sections T5D; T10D; T20D
Measurement/
identification units
•
•
•
•
•••••
•
•
•
•
•
•
••
•• •
•
•
•
•
•
•
•
•
•
•
•••••••
•
•
•
•
•
•
•• • •
•
•
•
