Al = Aluminium We reserve the right to make technical changes.
Section AT10 – Pitch 10 mm for belt width 32 mm
Section AT10 – Pitch 10 mm for belt width 50 mm
47 AT10/18-2 18 6F Al 57.29 55.45 60 37 47 40 10 22 0.253
47 AT10/19-2 19 6F Al 60.48 58.60 66 37 47 44 10 22 0.286
47 AT10/20-2 20 6F Al 63.66 61.80 66 37 47 46 12 24 0.322
47 AT10/22-2 22 6F Al 70.03 68.15 75 37 47 52 12 28 0.393
47 AT10/24-2 24 6F Al 76.39 74.55 83 37 47 58 12 30 0.475
47 AT10/25-2 25 6F Al 79.58 77.70 83 37 47 60 12 30 0.527
47 AT10/26-2 26 6F Al 82.76 80.90 87 37 47 60 12 30 0.564
47 AT10/27-2 27 6F Al 85.95 84.10 91 37 47 60 12 30 0.602
47 AT10/28-2 28 6F Al 89.13 87.25 93 37 47 60 12 30 0.642
47 AT10/30-2 30 6F Al 95.49 93.65 97 37 47 60 12 30 0.740
47 AT10/32-2 32 6F Al 101.86 100.00 106 37 47 65 12 32 0.844
47 AT10/36-2 36 6F Al 114.59 112.75 119 37 47 70 16 35 1.083
47 AT10/40-2 40 6F Al 127.32 125.45 131 37 47 80 16 40 1.317
47 AT10/44-0 44 6 Al 140.06 138.20 — 37 47 88 16 46 1.611
47 AT10/48-0 48 6 Al 152.78 150.95 — 37 47 95 16 48 1.931
47 AT10/60-0 60 6 Al 190.98 189.10 — 37 47 110 16 60 3.004
66 AT10/18-2 18 6F Al 57.29 55.45 60 56 66 40 10 22 0.422
66 AT10/19-2 19 6F Al 60.48 58.60 66 56 66 44 10 22 0.466
66 AT10/20-2 20 6F Al 63.66 61.80 66 56 66 46 12 24 0.520
66 AT10/22-2 22 6F Al 70.03 68.15 75 56 66 52 12 28 0.570
66 AT10/24-2 24 6F Al 76.39 74.55 83 56 66 58 12 30 0.736
66 AT10/25-2 25 6F Al 79.58 77.70 83 56 66 60 12 30 0.766
66 AT10/26-2 26 6F Al 82.76 80.90 87 56 66 60 12 30 0.816
66 AT10/27-2 27 6F Al 85.95 84.10 91 56 66 60 12 30 0.946
66 AT10/28-2 28 6F Al 89.13 87.25 93 56 66 60 12 30 0.960
66 AT10/30-2 30 6F Al 95.49 93.65 97 56 66 60 12 30 1.169
66 AT10/32-2 32 6F Al 101.86 100.00 106 56 66 65 12 32 1.300
66 AT10/36-2 36 6F Al 114.59 112.75 119 56 66 70 16 35 1.637
66 AT10/40-2 40 6F Al 127.32 125.45 131 56 66 80 16 40 1.999
66 AT10/44-0 44 6 Al 140.06 138.20 — 56 66 88 16 46 2.357
66 AT10/48-0 48 6 Al 152.78 150.95 — 56 66 95 16 48 2.830
66 AT10/60-0 60 6 Al 190.98 189.10 — 56 66 110 16 60 4.366
optibelt
ZRS

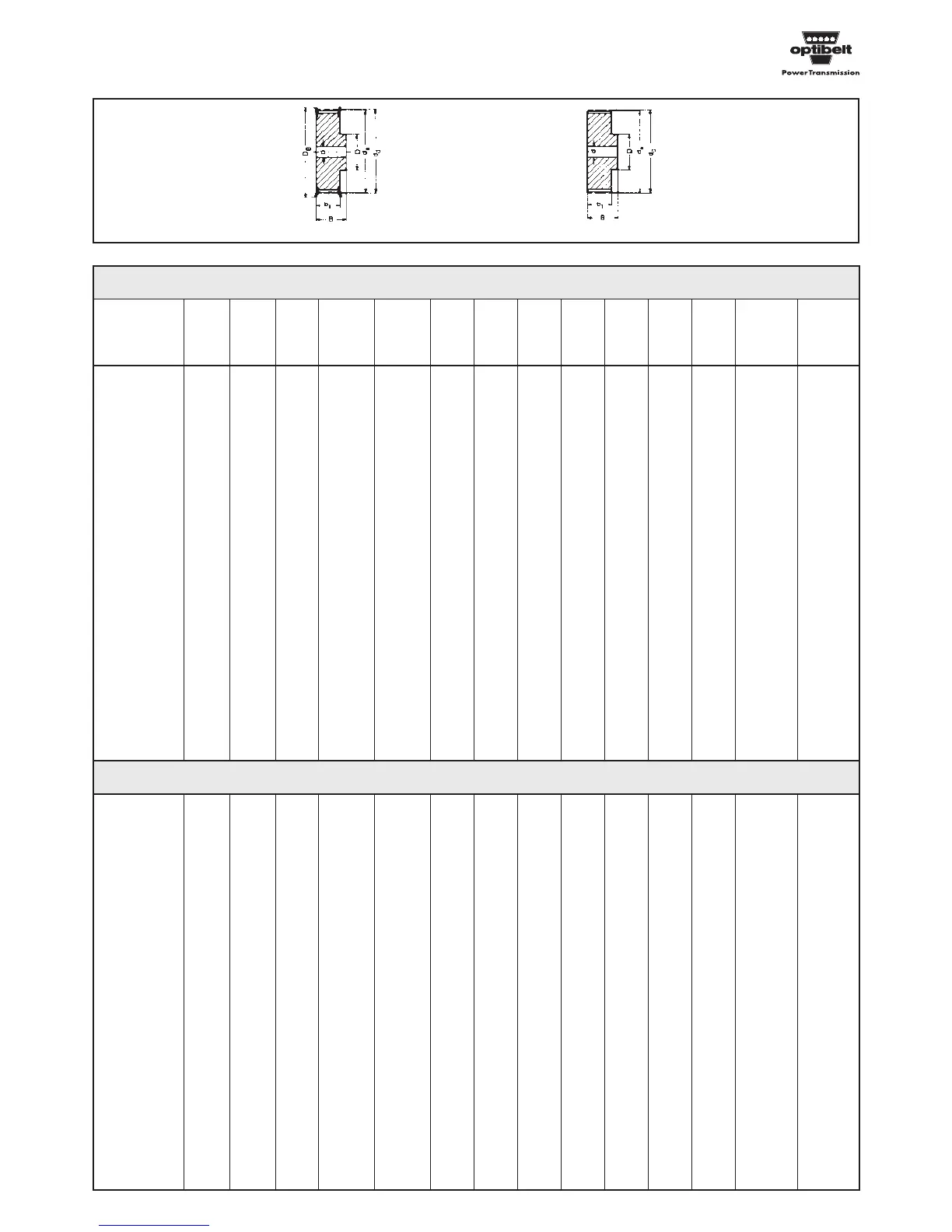

Metric timing belt pulleys for plain boring
d
d
(mm)
Part No.
No.
of
teeth
Type
Material
d
a
(mm)
D
B
(mm)
b
1
(mm)
B
(mm)
D
(mm)
Pilot
bore
d
(mm)
Finished
bore
d
max
(mm)
Weight
(≈ kg)
Type 6F Type 6
