Feature Function
9. Temperature Compensation On Illuminates green after making a quick set selection as it
monitors the ambient air temperature and digitally controls the
charging process by ambient air temperature.
10. Battery Connected Illuminates green after making a quick set selection.
Check mark LED is on confirming battery is connected.
11. Check Battery Fault warning LED will illuminate red only if there is a
connection or battery problem requiring attention in addition
to LCD fault messaging.
12. Fill Gauge Illuminated LEDs indicate empty to full pre-charge status, charge
and auto-maintain mode gauge.
13. Mode/Fault Message Center Displays charging, conditioning and auto maintain mode status
and fault condition.
14. Volts DC Display Displays pre-charge status, charging and auto maintain
charger voltage.
15. Amps DC Display Displays charging and auto maintain charger amperage.

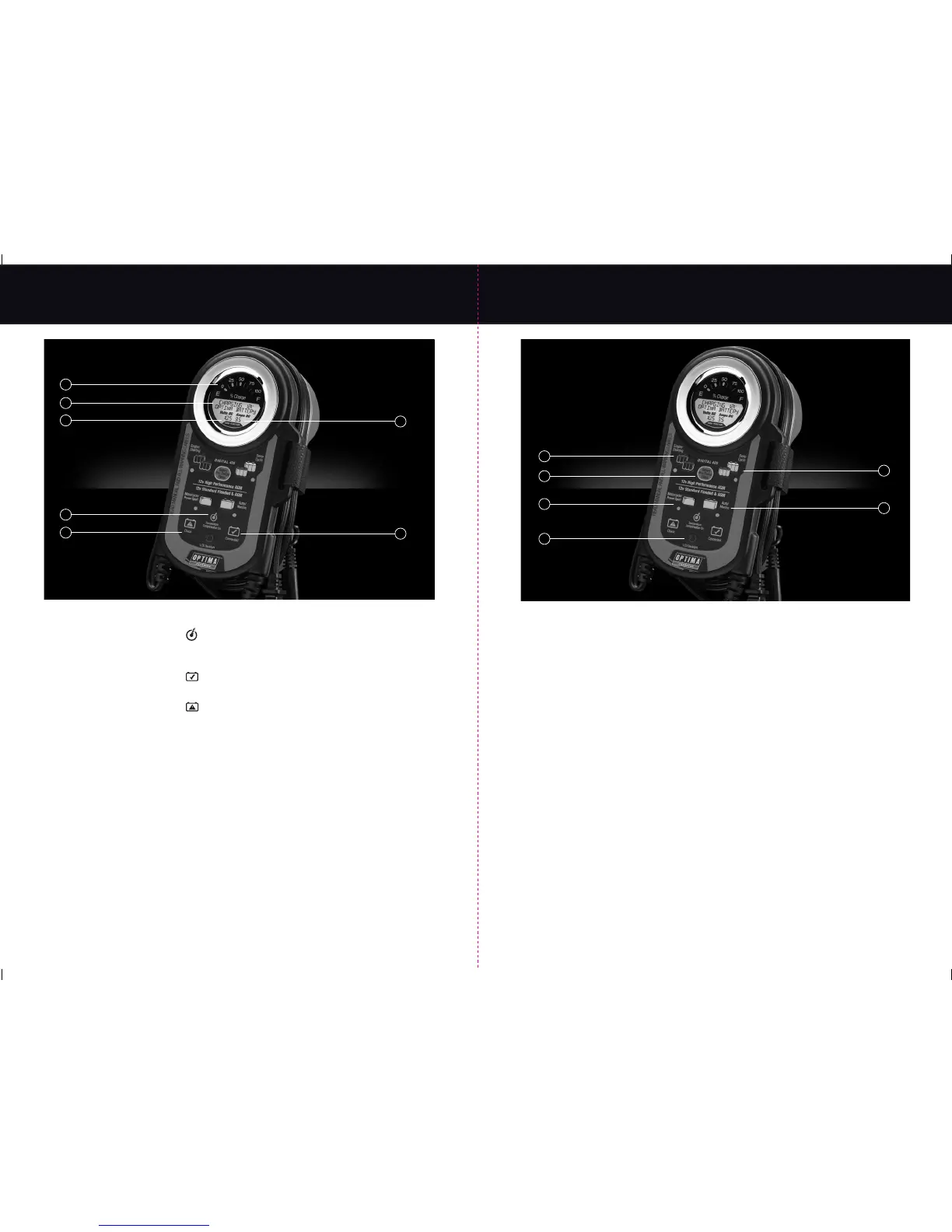

Getting to Know your Charger
15
Getting to Know your Charger
Feature Function
16. OPTIMA
®
Starting Charge Profile For quick set automatic selection of OPTIMA
®
REDTOP and BLUETOP
AGM STARTING batteries or other High Performance starting AGM's.
17. OPTIMA
®
Deep Cycle Charge Profile For quick set automatic selection of OPTIMA
®
YELLOWTOP and
BLUETOP AGM DEEP CYCLE batteries
and/or other High
Performance deep cycle AGM's.
18. (Small) Standard Flooded Charge Profile For quick set selection of standard 12V motorcycle, power sports, tractor
(small) AGM and Flooded batteries. Up to 40 Amp hour rated batteries.
19. (Large) Standard Flooded Charge Profile For quick set selection of standard 12V auto, marine, truck, RV
(large) AGM and Flooded batteries. 40 - 130 Amp hour rated batteries.
20. LCD Backlight The LCD display will turn off when a battery is fully charged and
is being automatically maintained. To turn off/on the LCD back
light simply touch this button.
21. Pre-Charge Battery Status Prior to charging your battery you may select this function.
ENGINE MUST BE OFF to have the charger identify the state
of charge of your battery before charging.
16
9
10
11
12
13
14
15
16
17
18
19
20
21
