Getting to Know your Charger
Feature Function
1. LED/LCD Battery Charging Gauge LCD display for charging, maintaining, and fault mode indication.
Gauge displays battery charging (fill) rate with charger mode and
f
ault messages. See pages 21-24.
2. Quick Set Charging Selector Quick and easy selection of charge profiles by battery type.
(Engine starting, deep cycle, auto/marine and motorcycle).
See page 17.
3. On Unit Cord Storage Stores AC and DC cables when not in use.
4. AC Power Plug Do not alter.
5. DC Charging Clamps Red (+) and gray (-) heavy duty battery clamps.
6. DC Charging Ring Terminals Interchangable DC ring terminals for permanent installation. Additional
sets available as an option.
7. Hood Latch Hook and Kickstand This convenient hook allows the unit to hang from a hood latch
or other vehicle hardware or as a “kickstand” on a hard flat surface.
8. Wall Bracket* Convenient wall bracket for storage or location near vehicle.
Provides additional storage for all cables.
*Wall bracket must be installed securely, either to a stud in the wall or using appropriate anchor fasteners for
the wall the bracket is installed on. Damage due to improper installation is not covered under warranty.

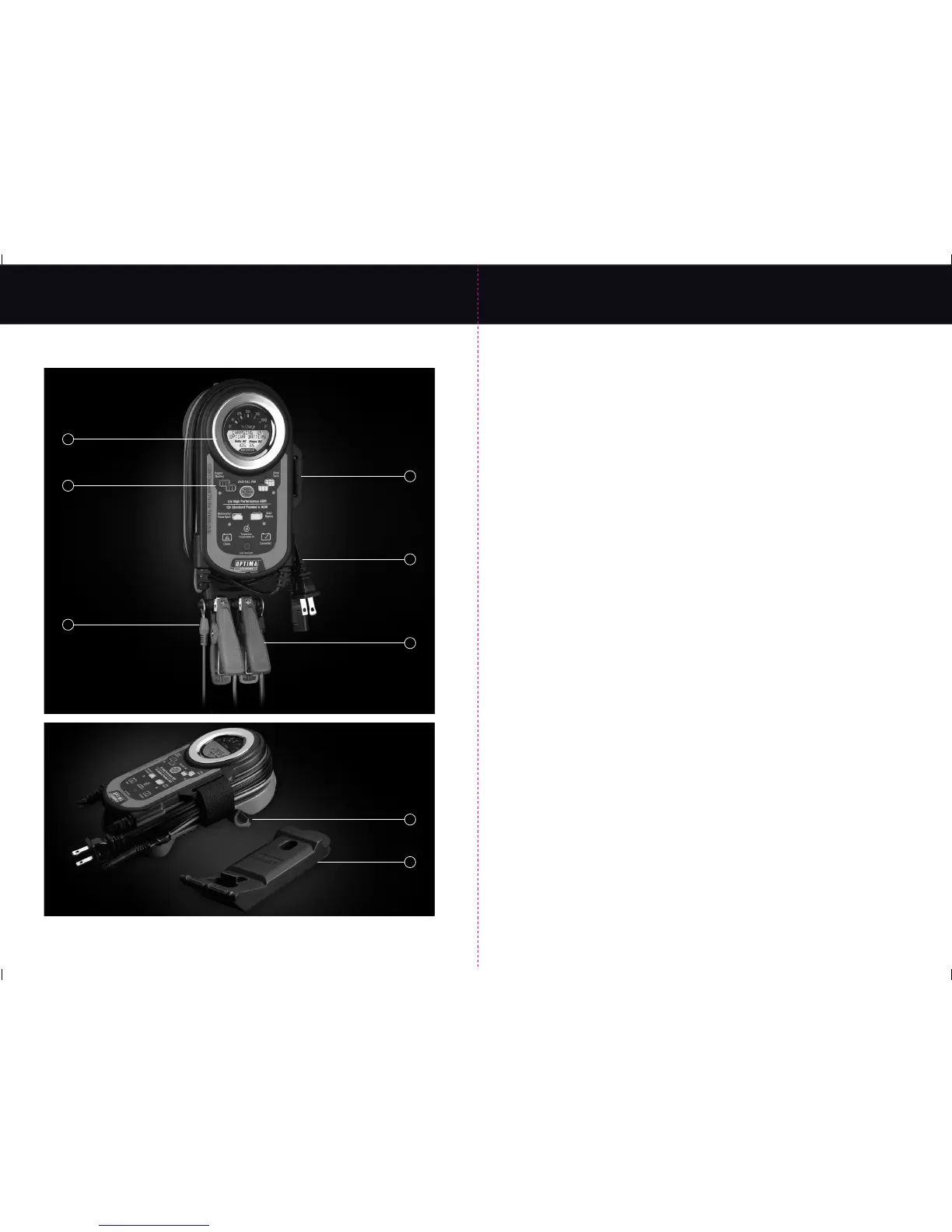

Getting to Know your Charger
This section of the manual is designed to give you a complete understanding of the features,
functions and operation of your OPTIMA
®
Digital 400.
6
2
1
3
4
5
7
8
