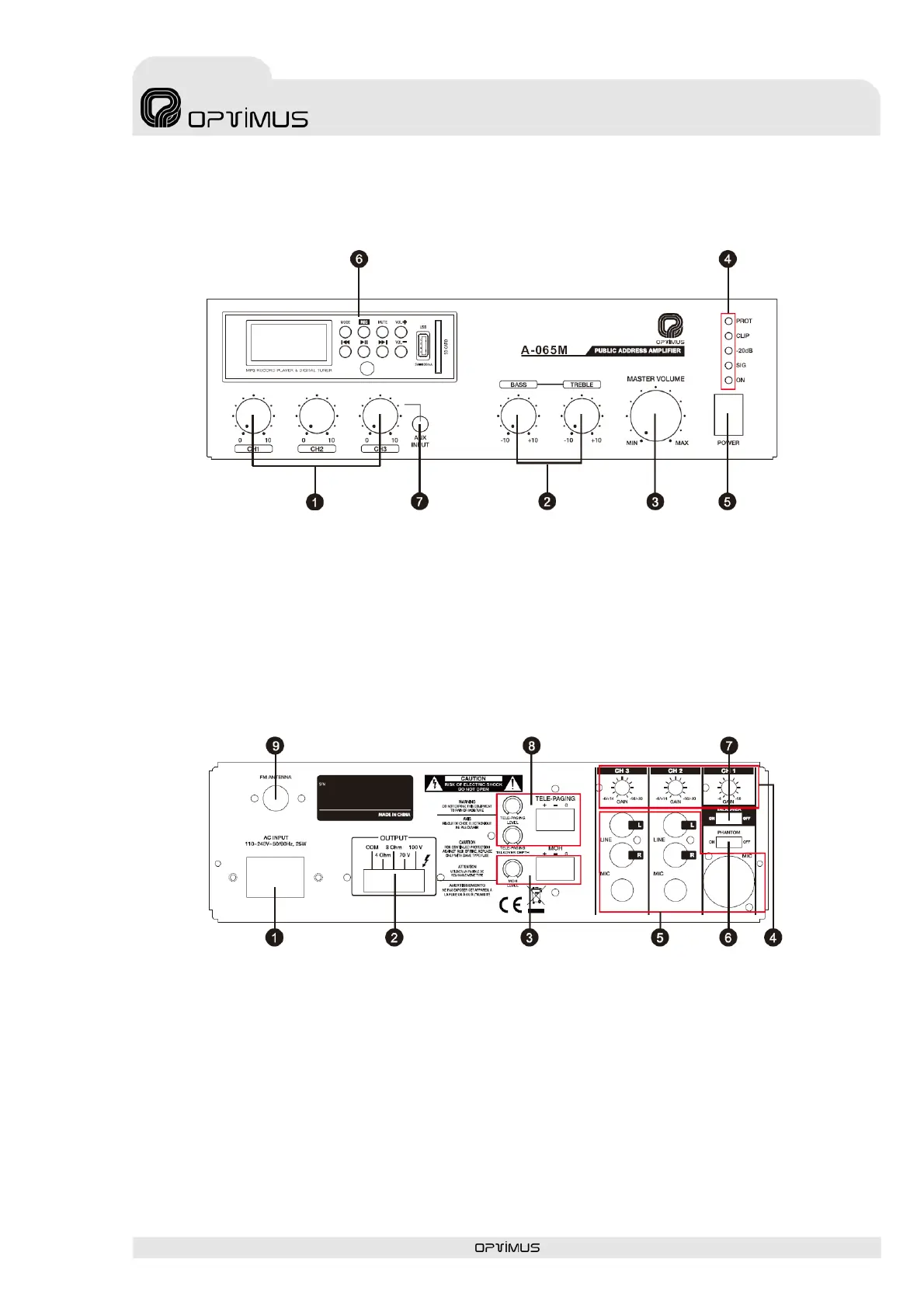

2. DESCRIPTION
2.1. Front panel
2.2. Rear panel
1. AC mains connector 110~240 Vac.
2. Speaker outputs connector (COM, 4-Ω, 8-Ω, 70 V, 100 V).
3. MOH (Music On Hold) Terminal with level Control.
4. Gain controls.
5. Signal input connectors. XLR (CH1), JACK/RCA (CH2 & CH3 MIC/LINE).
6. Phantom ON/OFF switch.
7. Priority switch.
8. Tel-paging input with level and TALKOVER depth controls.
9. FM Antenna connector.
1. Input channel volumes.
2. Two bands tone controls.
3. Master volume control.
4. Indicators (Protection/output/Power).
5. Power switch.
6. BGM source. MP3 Player, SD card and FM Tuner.
7. Aux input.
