A-065M Version 1.0 Page 6 of 13
-065M
Amplifier
3.3. Speaker lines connection
For the amplifier output connectors is recommended to use high-quality cable. To prevent the
possibility of short-circuits, insulate exposed loudspeaker cable connectors.

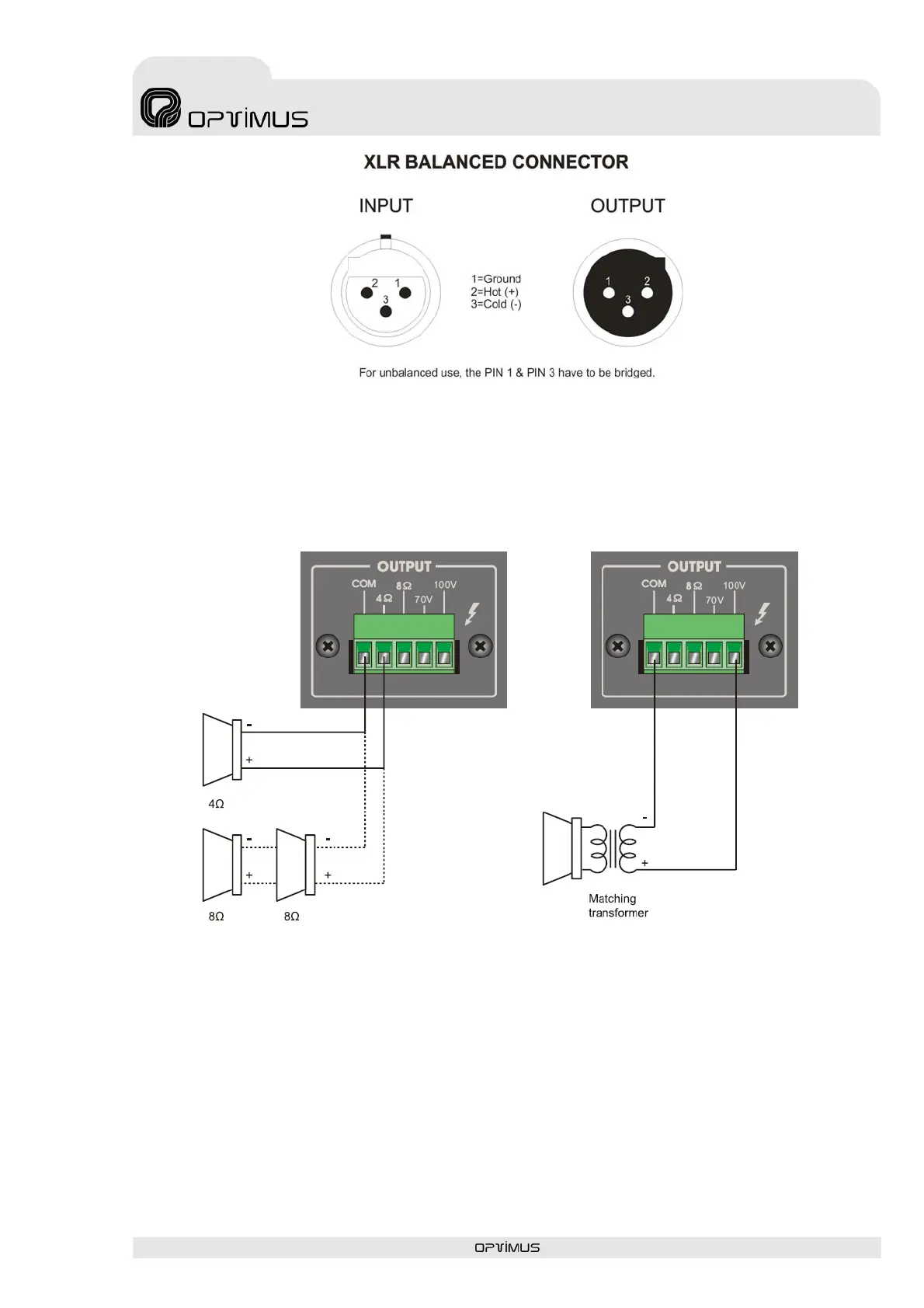

The equipment includes two low impedance terminals 4 Ω and 8 Ω, and two high impedance
terminals 70 V and 100 V. The wiring is shown in the following pictures.
Never use different output terminals at the same time.
