Introduction
7
Views of Projector

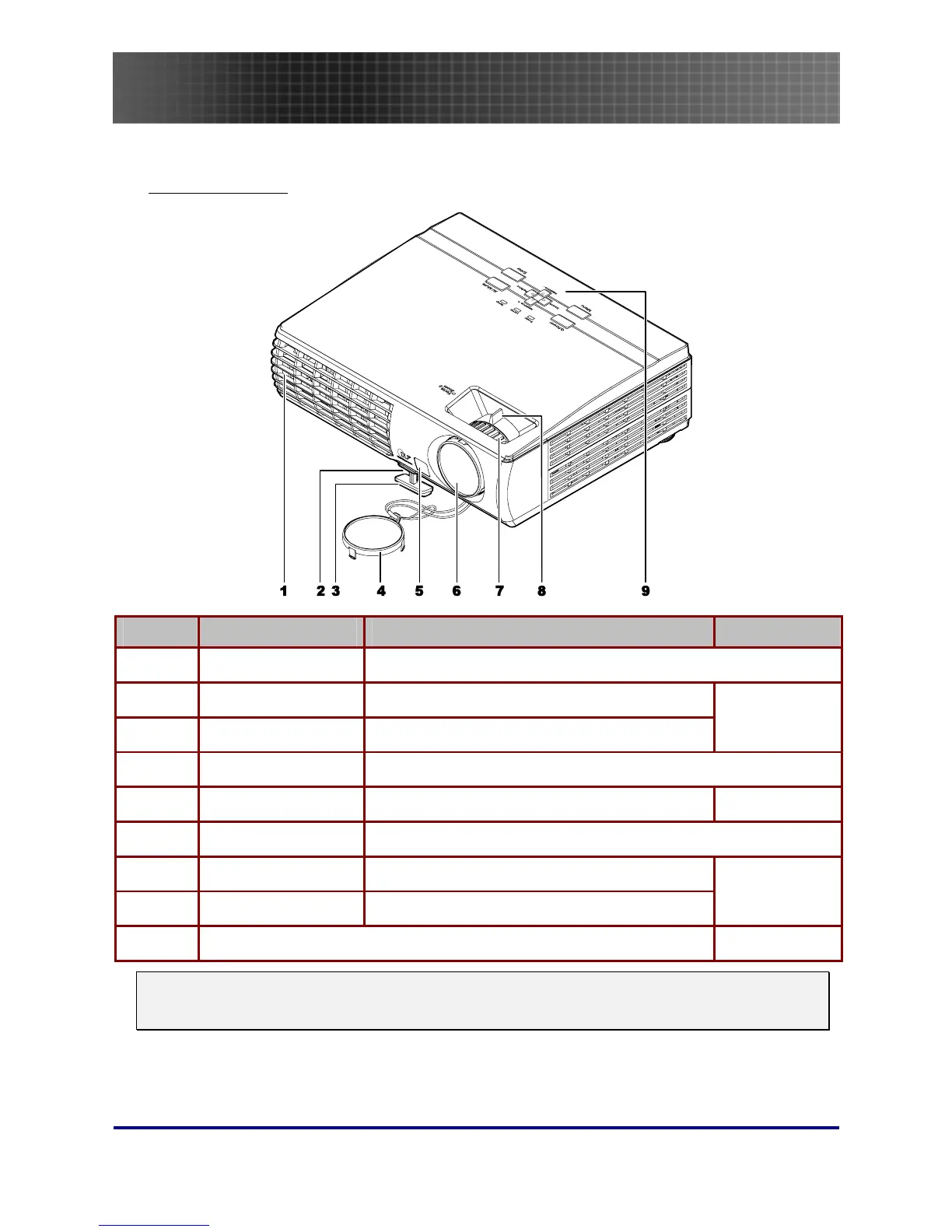

Front-right View
ITEM LABEL DESCRIPTION SEE PAGE:
1.
Ventilation opening To keep the projector lamp cool
2.
Height-adjuster button Push to release height adjustor
3.
Height-adjuster Adjusts level of projector
20
4.
Lens cap Attach to protect lens when not in use
5.
IR receiver Receiver for IR signal from remote control
11
6.
Lens Adjust focus/zoom on top opening
7.
Focus Focuses the projected image
8.
Zoom Enlarges the projected image
21
9.
See “Top view—OSD buttons and LEDs”
8
Important:
Ventilation openings on the projector allow for good air circulation, which keeps the projector lamp
cool. Do not obstruct any of the ventilation openings.
