Optoma EX762 - 6-5 Setup Procedure (HDMI)

EX762/EW762
Condential
6-6
6-5 Setup Procedure (HDMI)

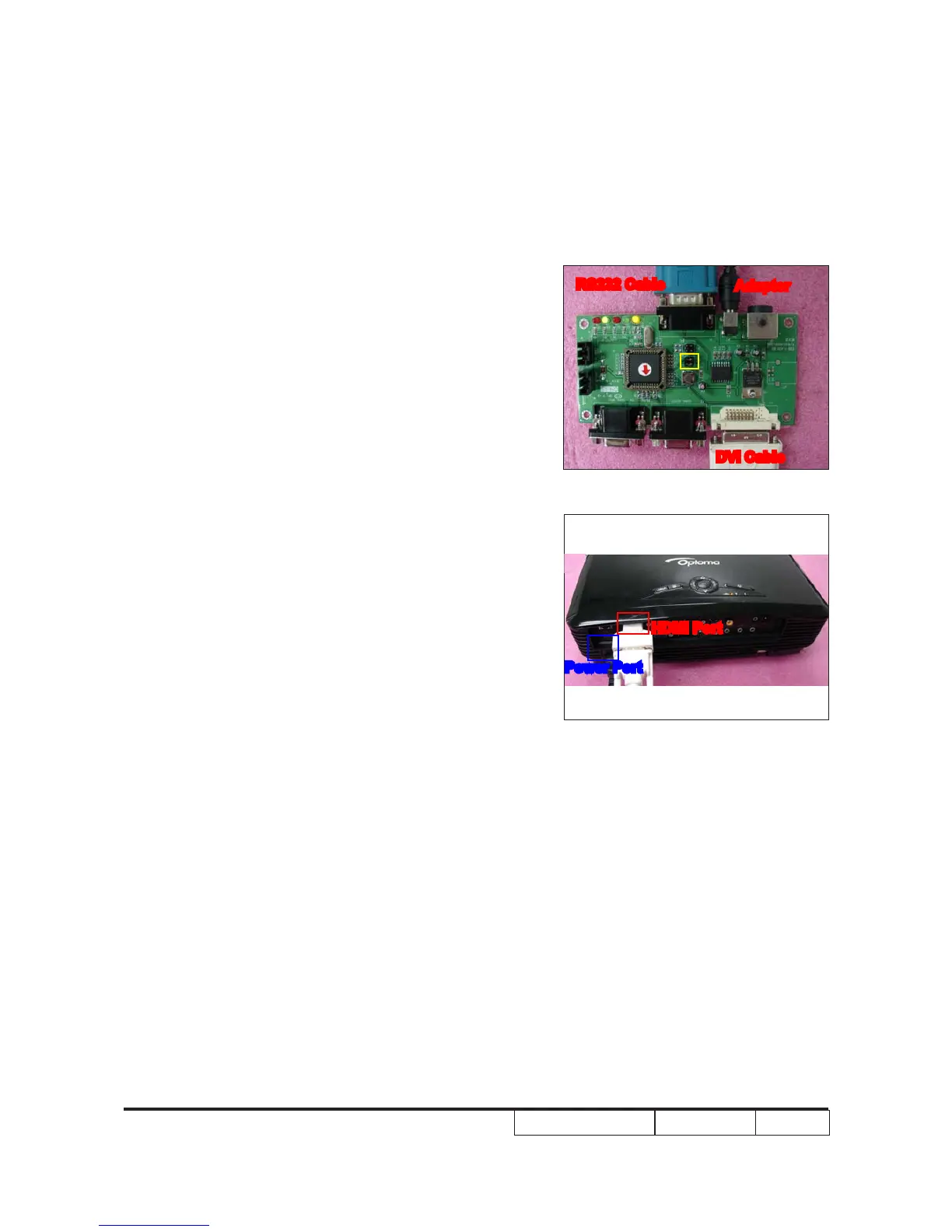

1. Connect all ports
(1) Connect P1 of xture with COM Port of
PC/Laptop by RS232 Cable.
(2) Connect P5 of xture with HDMI Port of
projector by DVI Cable.
(3) Plug Power Adapter to JP1 of xture.
(4) Power on xture.
(5) Plug Power Cord to projector.
Note:You must conrm that the JP3 is closed in
all procedure.
RS232 Cable
DVI Cable
JP3
Adapter
JP1
P1
P5
RS232 Cable
DVI Cable
HDMI Port
Power Port
