EX762/EW762
Condential XIII

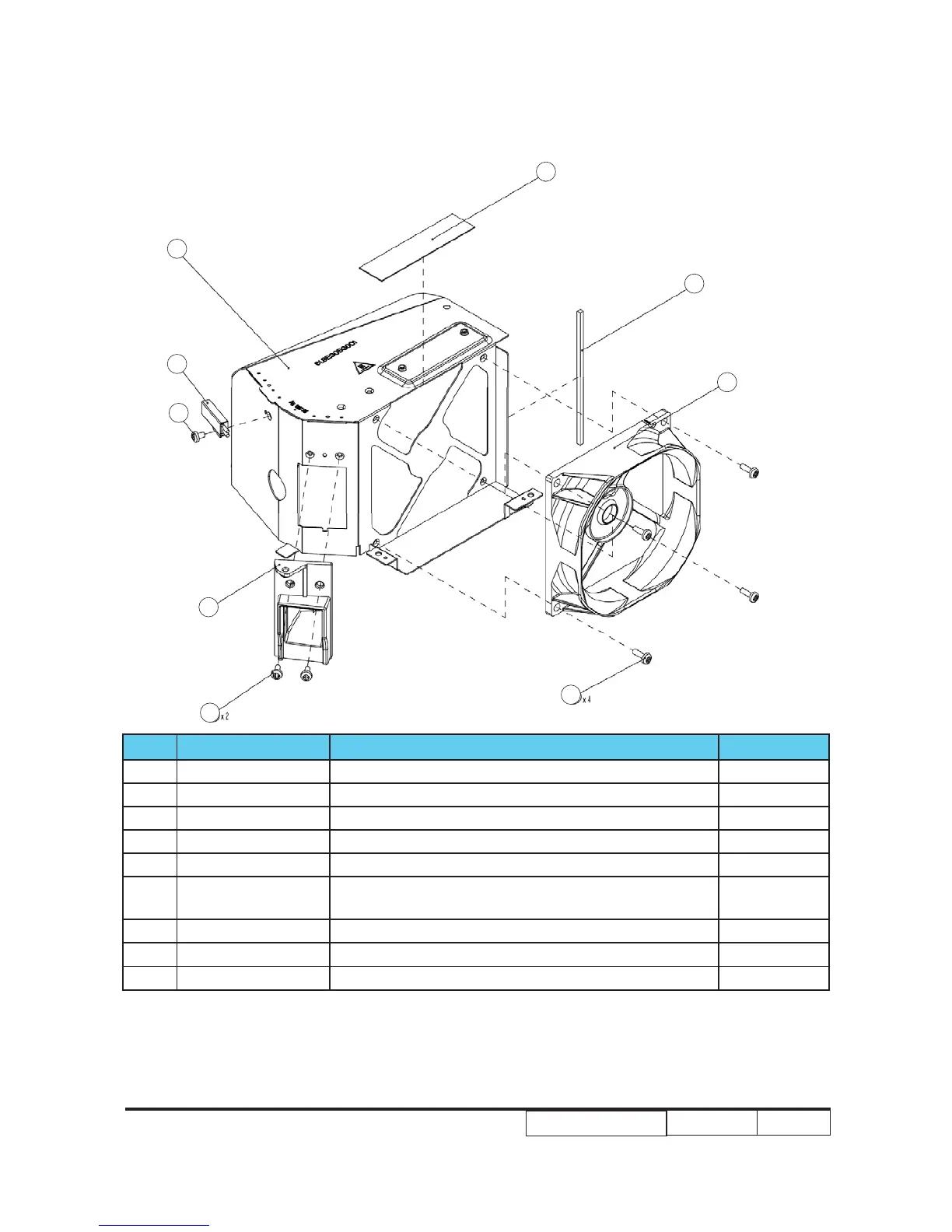

ASSY FAN SHIELDING MODULE
Item P/N Description Parts Supply
1 49.85M02G001 SYSTEM FAN / 55*55*15 mm V
2 61.8FB01G001 55-15 FAN SHIELDING
3 61.8FB05G001 LAMP BLOWER DUCT 280W EX762
4 85.1A123G080 PAN SCREW M3*8 FOR YM-64 FRONT CELL&SP
5 85.1A123G060 SCREW PAN MECH M3*6 NI
6 43.8FB17G001
EX762 THERMAL SWITCH WITH K5B RH CORE
AND KLIXON YS11 105C(WIRE LENGTH 165mm)
V
7 85.1A123G040 SCREW PAN MECH M3*4 Ni
8 51.81540G001 TAPE 3M J350 17*60mm
9 41.8EF01G001 EMI GASKET W5*H4*L80m
1
8
9
2
6
7
3
5
4
