Removing the Main Board

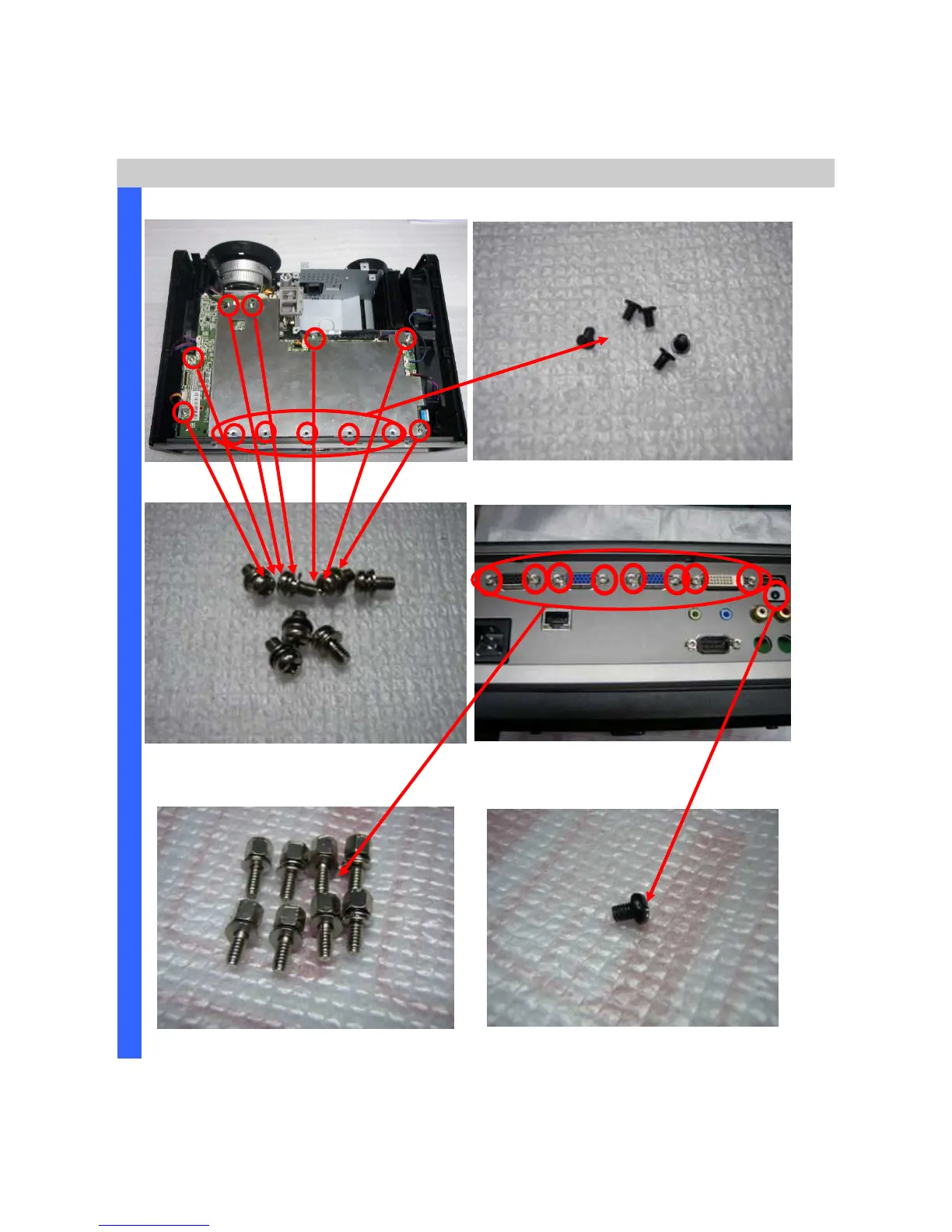

Remove these screws. Review the five piece screws ( S06) .
Review the seven piece screws (S05)
and take off the main shield.
Remove these eight + one screws.
D
I
S
A
S
S
E
M
B
L
Y
Review the eight screws ( S07) . Review the screws (S08).
