Optoma HD67 - 2-2 Disassemble Main Board Module

HD67
Condential 2-3

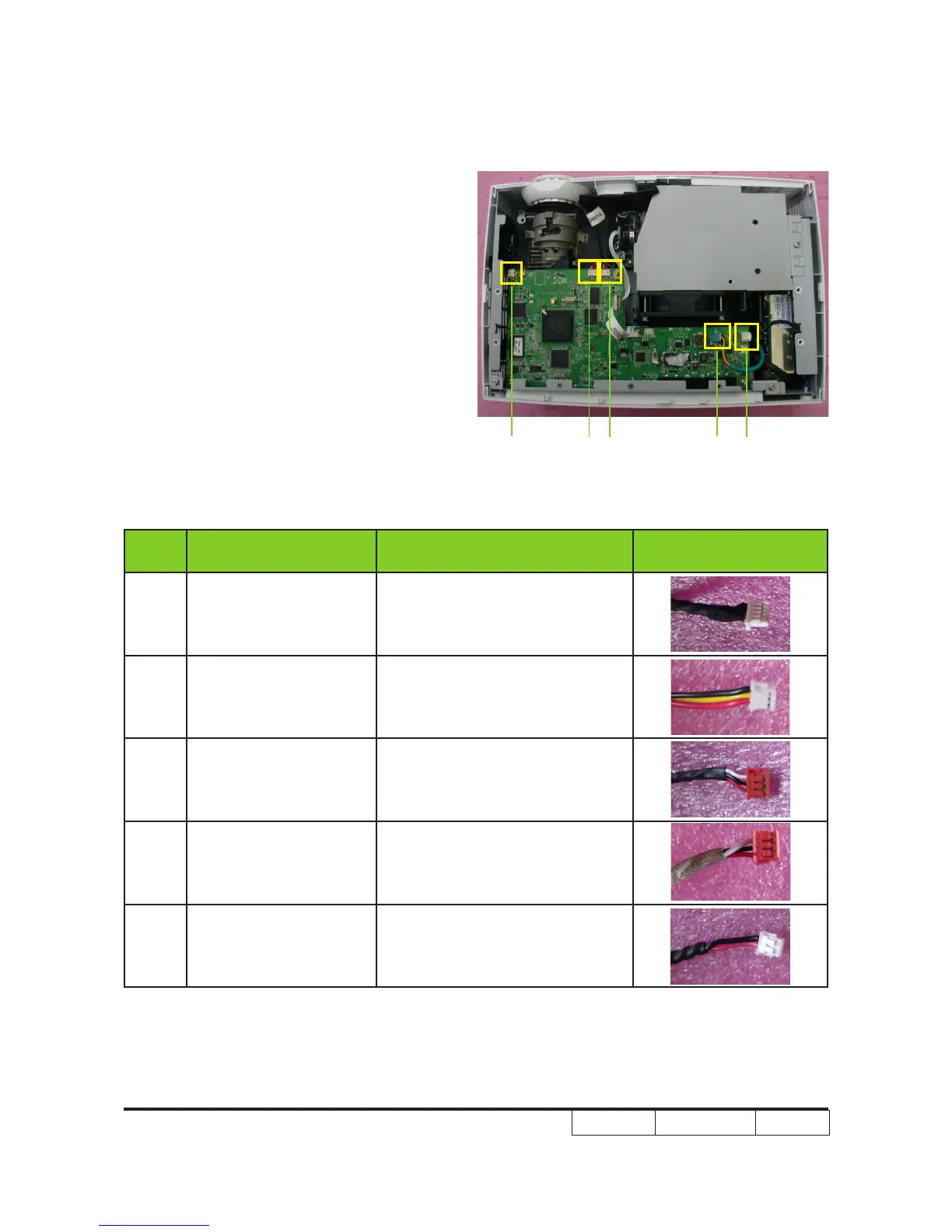

2-2 Disassemble Main Board
Module
Please refer to the below table details of
each connector on Main Board.
Item
Male Connector
on Main Board
The key feature Figure
A Lamp Driver Black wire tube (5 pin)
B Fan
Compose of Red/Yellow/Black
Wire (3 pin)
C Photo Sensor
Compose of Red/Black/White
Wire and Black wire tube (3 pin)
D IR
Compose of Red/Black/White
Wire and Gray wire tube (3 pin)
E Speaker
Compose of Red/Black Wire and
Black wire tube (2 pin)
A
B
C
DE
