Optoma HD71 - Installation; Connecting the Projector

12
English
Installation
DVD player, Set-top Box
HDTV receiver
DVD player, Set-top Box
HDTV receiver
S-Video Output
Video Output
+12V Relay Output
VGA, DVI
VGA, DVI

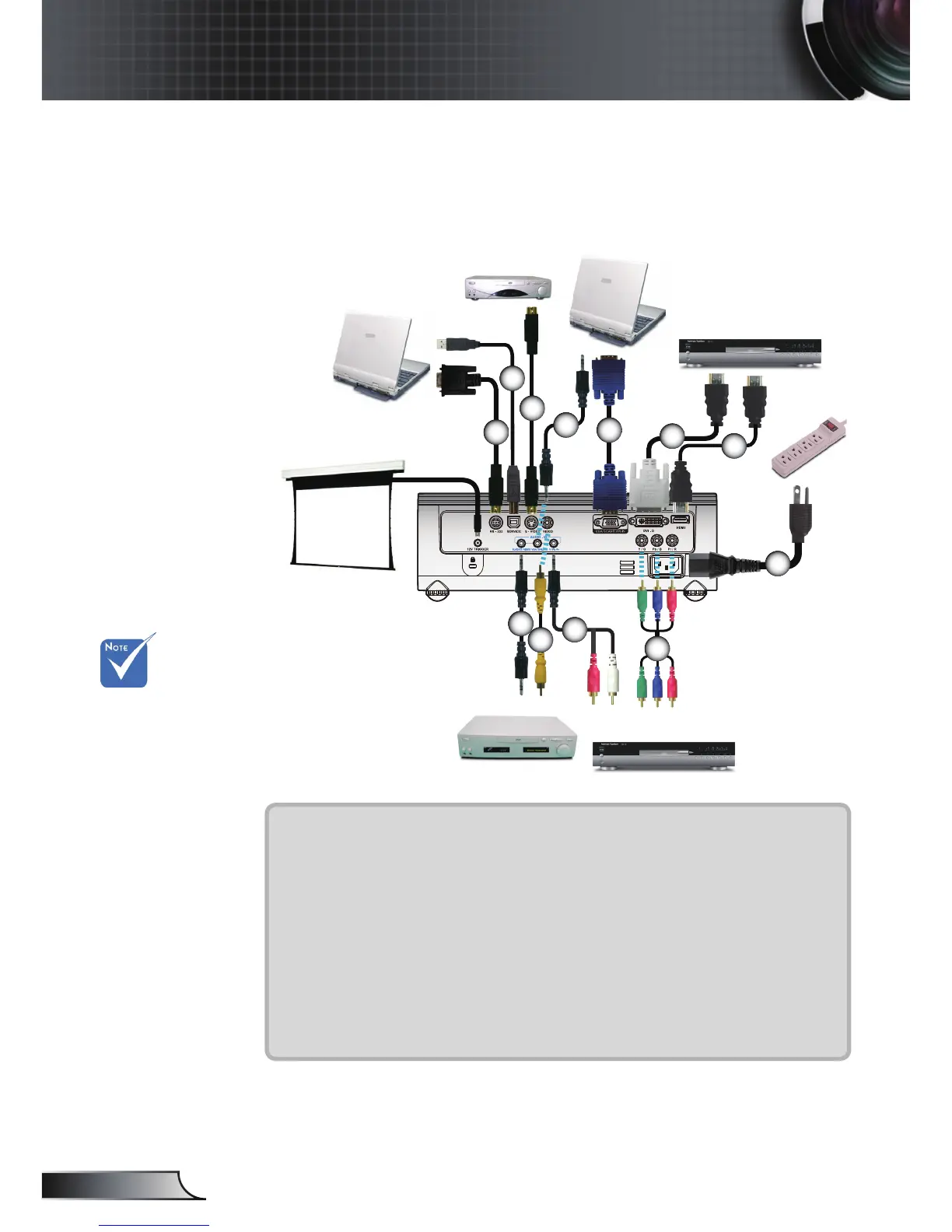

Connecting the Projector
Due to the
difference in
applications for
each country,
some regions may
have different
accessories.
1...............................................................................................................Power Cord
2..............................................................................................................HDMI Cable
3............................................................................................................. DVI-D Cable
4................................................................................................................VGA Cable
5...................................................................................................Audio Input Cable
6...........................................................................................................S-Video Cable
7................................................................................................................. USB Cable
8.............................................................................................................. RS232 Cable
9...................................................................................................Audio Input Cable
10........................................................................................ Composite Video Cable
11.................................................................................................Audio Input Cable
12......................................................................RCA Component Cable for YPbPr
1
2
3
4
5
6
7
8
9
10
11
12
