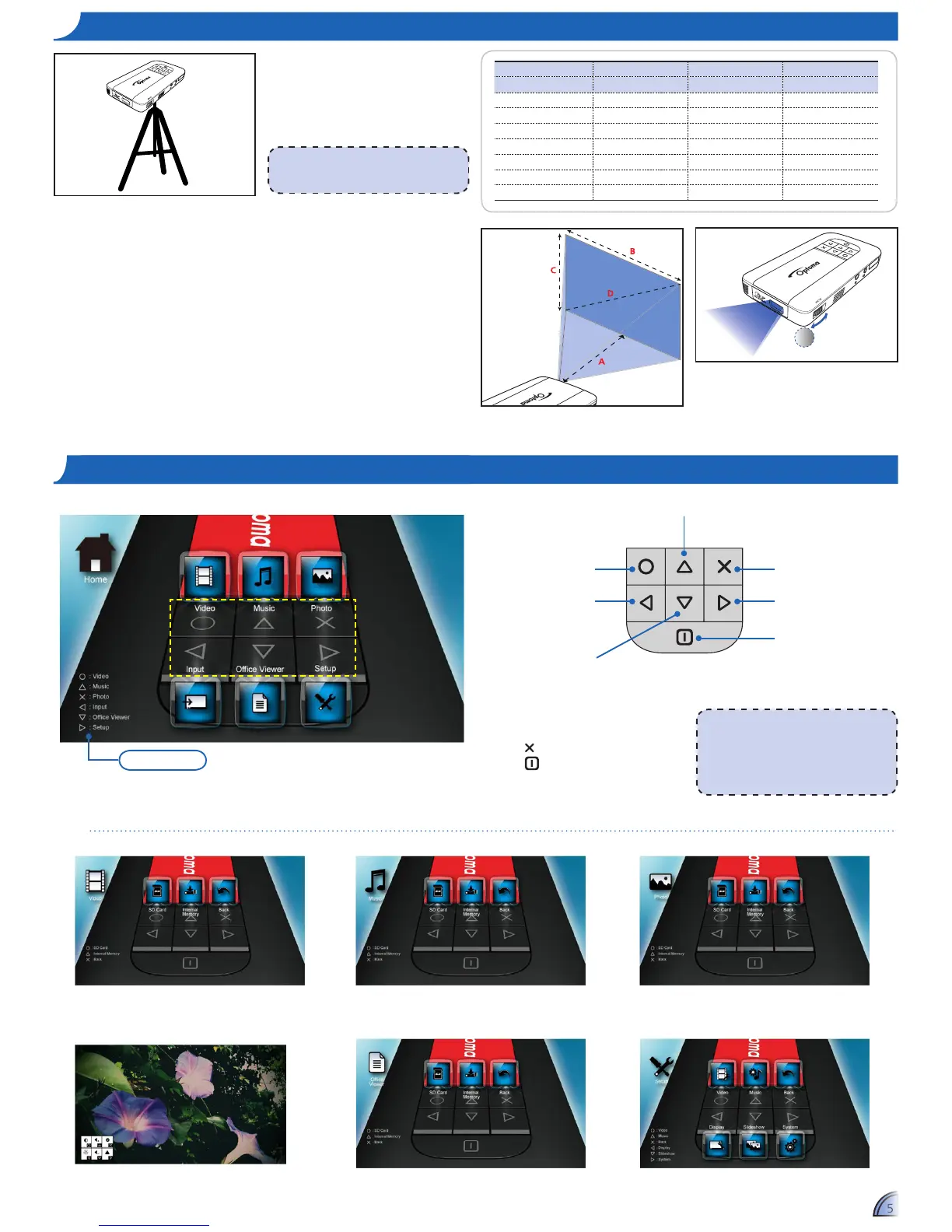

aD j u S t t h e pr o j e c t e D Im a g e
<Note>
A button guide appears on the lower left
corner of most screens. The guide varies
depending on the current mode.
Press the corresponding button to select
the option or operation.
Press the corresponding button of the •
desired option.
Press • to go back a previous screen.
Press • to return to the Home menu.
Or, press for 3 seconds to switch off
the projector.
Home menu
Button guide
Items
ho W t o uS e t h e me n u
5
UNIVERSAL I/O
Screw a standard tripod into the screw
hole on the projector.
B
micro SD
DC IN
RESET
Projection Distance (A) Screen Size - Width (B) Screen Size - Height (C) Screen Diagonal (D)
Meter inch (mm) (inch) (mm) (inch) (mm) (inch)
0.500 19.7 227 8.9 128 5.0 261 10.3
0.700 27.6 318 12.5 179 7.0 365 14.4
0.975 38.4 443 17.4 249 9.8 508 20.0
1.500 59.1 682 26.8 384 15.1 782 30.8
2.000 78.7 909 35.8 511 20.1 1043 41.1
2.500 98.4 1136 44.7 639 25.2 1304 51.3
3.215 126.6 1461 57.5 822 32.4 1677 66.0
UNIVERSAL I/O
1
Adjust the focus (

) until the image is
clear.
<Note>
The tripod is an optional accessory.
Enter Video menu
Select input
source signal
Enter Photo menu
Enter Setup menu
Enter Music menu
Browse documents with
Ofce Viewer
Press for 3 seconds to
switch off the projector
Video menu Music menu Photo menu
Input source screen Ofce Viewer menu Setup menu
uS e a tr I p o D St a n D

Optoma Pico PK120 Specifications

General

Projection distance	- m
Projection technology	LED
Contrast ratio (typical)	2000:1
Screen size compatibility	40 - 70 \
Audio input	Yes
Aspect ratio	16:9
RS-232 ports	0
Network ready	No
Power supply type	AC/DC
Dimensions (WxDxH)	60 x 117 x 21 mm
Connectivity technology	Wired
Focus	Manual
Focal length range	- mm
Lamps quantity	1 lamp(s)
Service life of light source	20000 h
RMS rated power	1 W
Audio formats supported	AAC, AMR, APE, MP3, MS-ADPCM, WMA
Image formats supported	BMP, JPG
Video formats supported	3GP, ASF, AVI, H.263, H.264, M-JPEG, MOV, MPEG4, VC-1, VOB, WMV, XVID
Document formats supported	DOC, DOCX, HTML, XLS, XLSM
Number of built-in speakers	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Compatible memory cards	SD, SDHC
Maximum memory card size	32 GB
Internal storage capacity	1 GB
Noise level	- dB
Product type	Portable projector
Product color	Black
Market positioning	Portable
Power source	AC/Battery
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Battery life (max)	1.5 h
Power consumption (standby)	- W
Cables included	AV, VGA

Weight and Dimensions

Depth	117 mm
Width	60 mm
Height	21 mm
Weight	145 g
