Installation

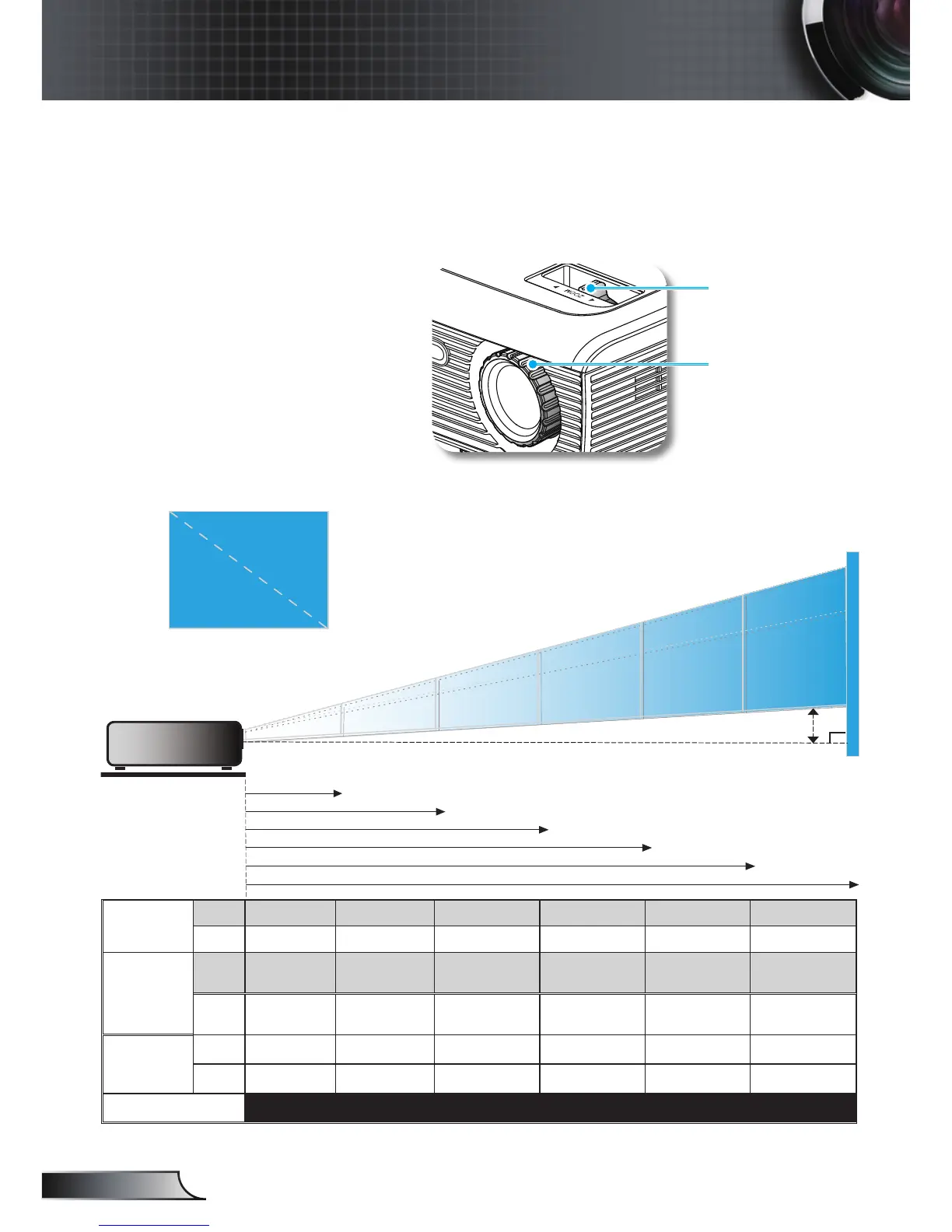

Adjusting the Projector’s Zoom / Focus
Focus Ring
Zoom Ring
You may turn the zoom ring to zoom in or out. To focus
the image, rotate the focus ring until the image is clear.
The projector will focus at distances from 3.9 to 39.4 feet (1.2
to 12.0 meters).
Adjusting Projection Image Size
Hd
68.8"
(174.8cm)
114.7"
(291.4cm)
160.6"
(407.9cm)
206.5"
(524.5cm)
275.3"
(699.3cm)
30.3"
(76.9cm)
75.7"
(192.3cm)
126.2"
(320.5cm)
176.7"
(448.7cm)
227.1"
(576.9cm)
302.9"
(796.2cm)
27.5"
(69.9cm)
3.9'
(1.2m)
39.4'(12.0m)
29.5'(9.0m)
23.0'(7.0m)
16.4'(5.0m)
9.8'(3.0m)
Width
Height
Diagonal
 This graph is for user’s reference only.
Screen
(Diagonal)
Max.
30.3” (76.9cm) 75.7” (192.3cm) 126.2” (320.5cm)176.7” (448.7cm)227.1” (576.9cm)302.9” (769.2cm)
Min.
27.5” (69.9cm) 68.8” (174.8cm) 114.7” (291.4cm)160.6” (407.9cm)206.5” (524.5cm)275.3” (699.3cm)
Screen
Size
Max.
(WxH)
24.2” x 18.2”
61.5 x 46.2cm
60.6” x 45.4”
153.8 x 115.4cm
101.0” x 75.7”
256.4 x 192.3cm
141.3” x 106.0”
359.0 x 269.2cm
181.7” x 136.3”
461.5 x 346.2cm
242.3” x 181.7”
615.4 x 461.5cm
Min.
(WxH)
22.0” x 16.5”
55.9 x 42.0cm
55.1” x 41.3”
139.9 x 104.9cm
91.8” x 68.8”
233.1 x 174.8cm
128.5” x 96.4”
326.3 x 244.8cm
165.2” x 123.9”
419.6 x 314.7cm
220.3” x 165.2”
559.4 x 419.6cm
Hd
Max.
2.73” (6.9cm) 6.81” (17.3cm) 11.36” (28.8cm) 15.9” (40.4cm) 20.44” (51.9cm) 27.26” (69.2cm)
Min.
2.48” (6.3cm) 6.19” (15.7cm) 10.32” (26.2cm) 14.45” (36.7cm) 18.58” (47.2cm) 24.78” (62.9cm)
Distance
3.9’ (1.2m) 9.8’ (3.0m) 16.4’ (5.0m) 23.0’ (7.0m) 29.5’ (9.0m) 39.4’ (12.0m)
