Optoma PRO150S - Connecting and Powering On

11
English
Installation
VGA1- IN / SCART
S-VIDEO VIDEO
RS232
AUDIO-OUT
AUDIO-IN
VGA-OUT
VGA2- IN
E62405SP
R
Connecting the Projector
Due to the
difference in
applications
for each
country, some
regions may
have different
accessories.
(*) Optional
accessory

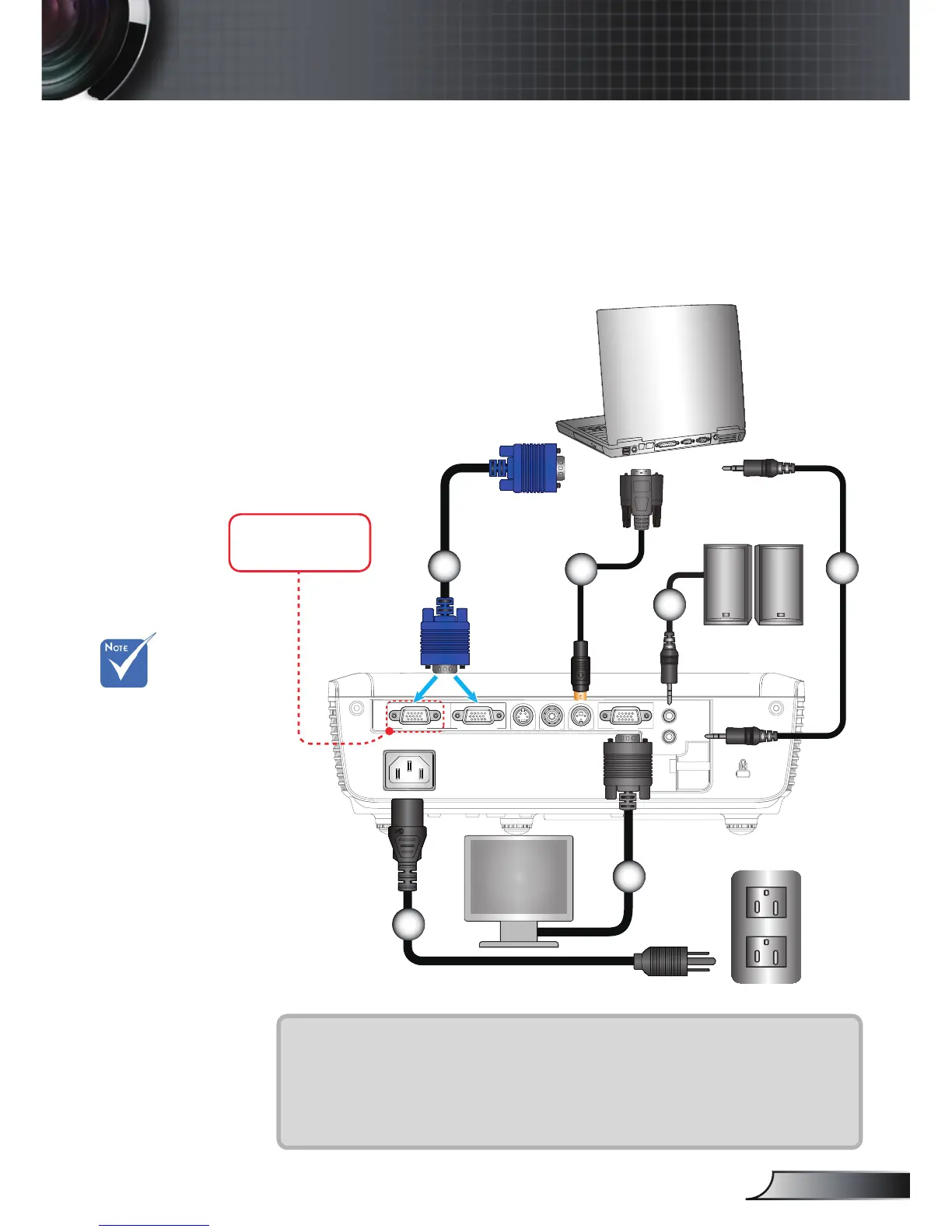

Connect to Computer/Notebook
1
3
1....................................................................................................Power Cord
2.....................................................................................................VGA Cable
3................................................................................................*RS232 Cable
4.........................................................................................*Audio Input Cable
5........................................................................................*VGA Output Cable
6......................................................................................*Audio Output Cable
4
2
Only present on
XGA models.
5
6
