Optoma PRO150S - Input; Output Connections

9
English
Introduction

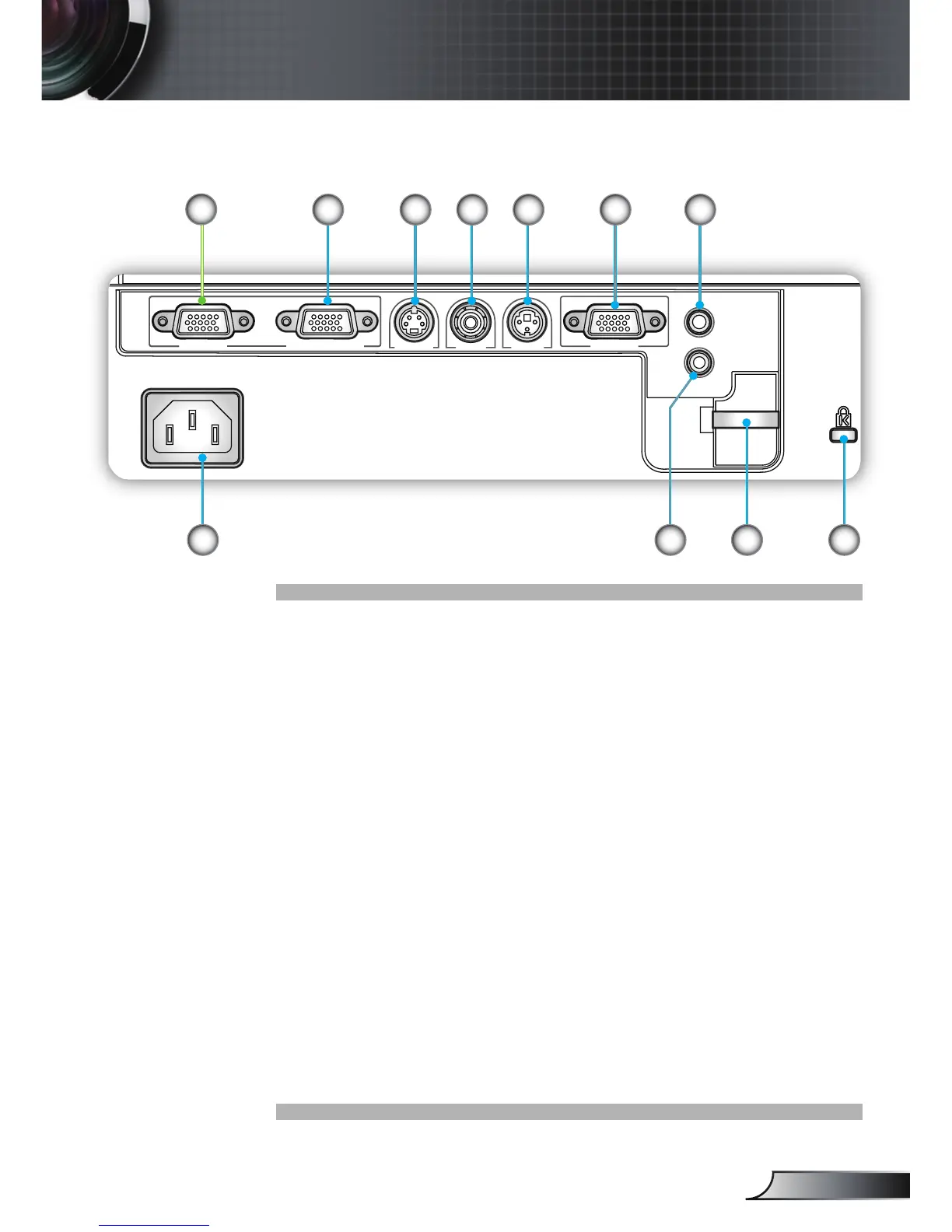

Input / Output Connections
1. VGA1-In/SCART Connector
(PC Analog Signal/Component Video Input/HDTV/SCART)
2. S-Video Input Connector
3. Composite Video Input Connector
4. RS-232 Connector (3-pin)
5. Audio Output Connector (3.5mm Mini Jack)
6. Power Socket
7. Audio Input Connector (3.5mm Mini Jack)
8. Security Bar
9. Kensington
TM
Lock Port
10. VGA-Out Connector (Monitor Loop-through Output)
VGA1- IN / SCART
S-VIDEO VIDEO
RS232
AUDIO-OUT
AUDIO-IN
VGA-OUT
VGA2- IN
4 5321
6 87 9
The items below are only for models that operate
with XGA model:
11. VGA2-In Connector
(PC Analog Signal/Component Video Input/HDTV)
11
10
