Installation
Connecting the Projector
Due to the
difference in
applications for
each country,
some regions may
have different
accessories.
(*) Optional
accessory

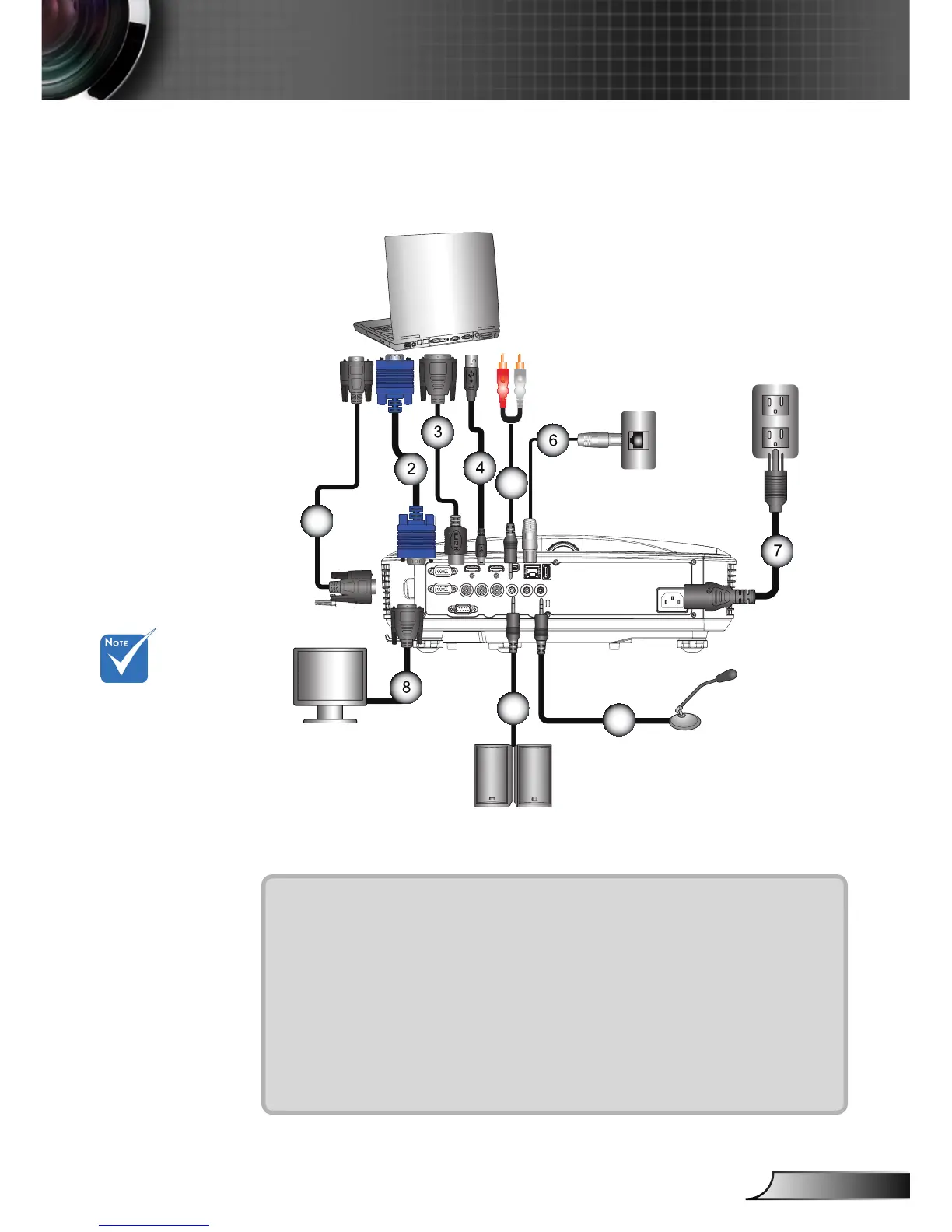

Connect to Computer/Notebook
E62405SP
R
MOLEX
1
5
9
10
Audio Output
Microphone
External
Display
Router / Network Switch
1................................................................................................*RS232 Cable
2................................................................................................... *VGA Cable
3..................................................................................................*HDMI Cable
4....................................................................................................*USB Cable
5......................................................................................... *Audio Cable/RCA
6.................................................................................................. *RJ45 Cable
7....................................................................................................Power Cord
8........................................................................................*VGA Output Cable
9............................................................................................Interactive Cable
10....................................................................................*Audio Output Cable
11 .......................................................................................*Audio Input Cable
