Introduction

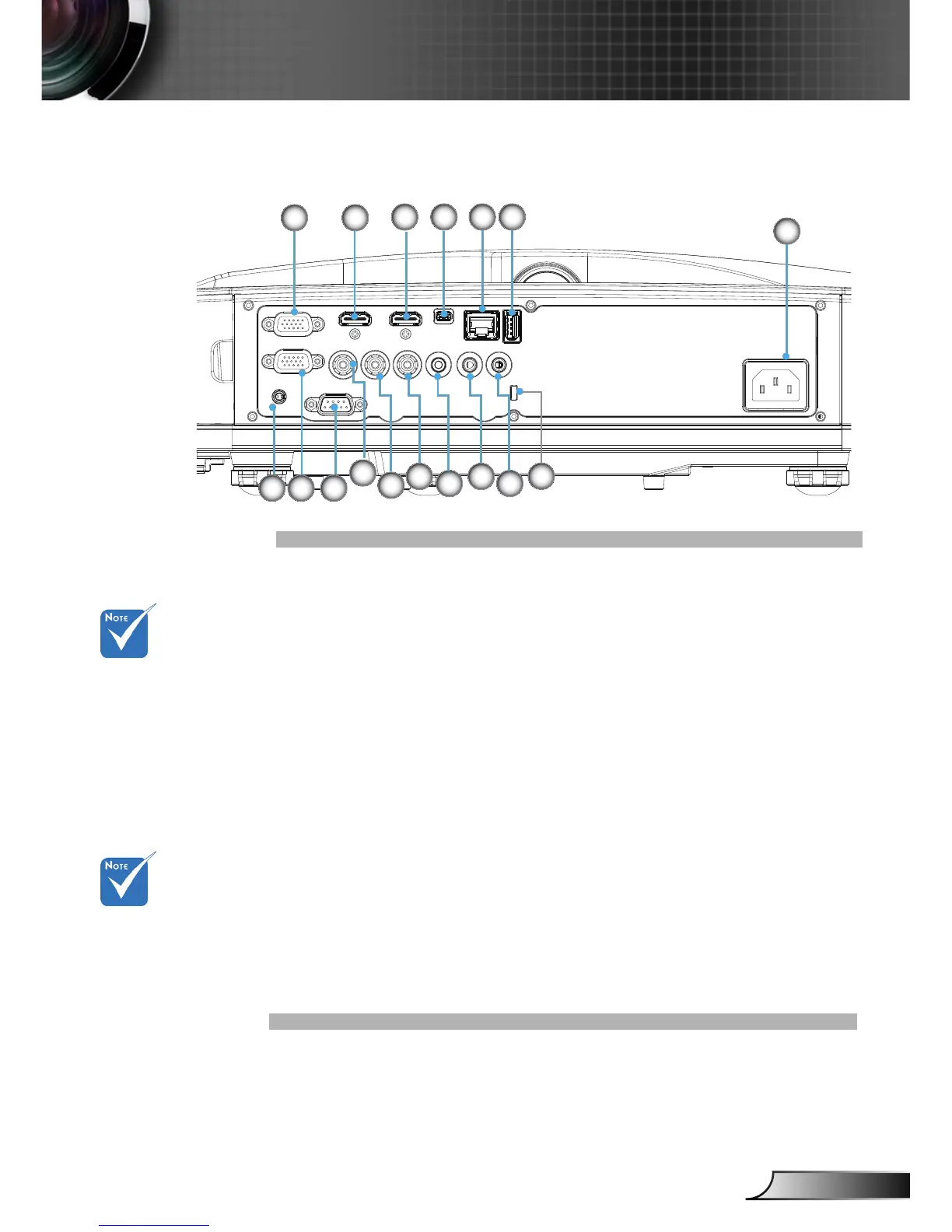

Input/Output Connections
Monitor loop
through only
support in VGA1-
In/YPbPr.
VGA1-In/YPbPr Connector 1.
(PC Analog Signal/Component Video Input/HDTV/YPbPr)
HDMI2 Input Connector 2.
HDMI1 Input Connector 3.
USB Connector (Connect to PC for Remote Mouse 4.
function)
RJ45 connector (Optional)5.
USB Type A Connector (Optional)6.
Power Socket7.
Interactive connector (3.5mm mini-jack, optional)8.
VGA-Out/VGA2-In Connector9.
RS-232 Connector (9-pin DIN Type)10.
Composite Video Input Connector11.
Composite Audio Input (right) Connector 12.
Composite Audio Input (left) Connector 13.
Audio Output Connector (3.5mm mini jack) 14.
Audio Input Connector (3.5mm mini jack) 15.
Audio Input Connector (microphone) 16.
Kensington17.
TM
Lock Port
The interface
is subject to
model’s
specications.
7
1 2
4
10
14
53
11
12
16
6
9
13 15
17
8
