Optoma UHD50 User Manual

English
15
SETUP AND INSTALLATION
Adjusting the projector image

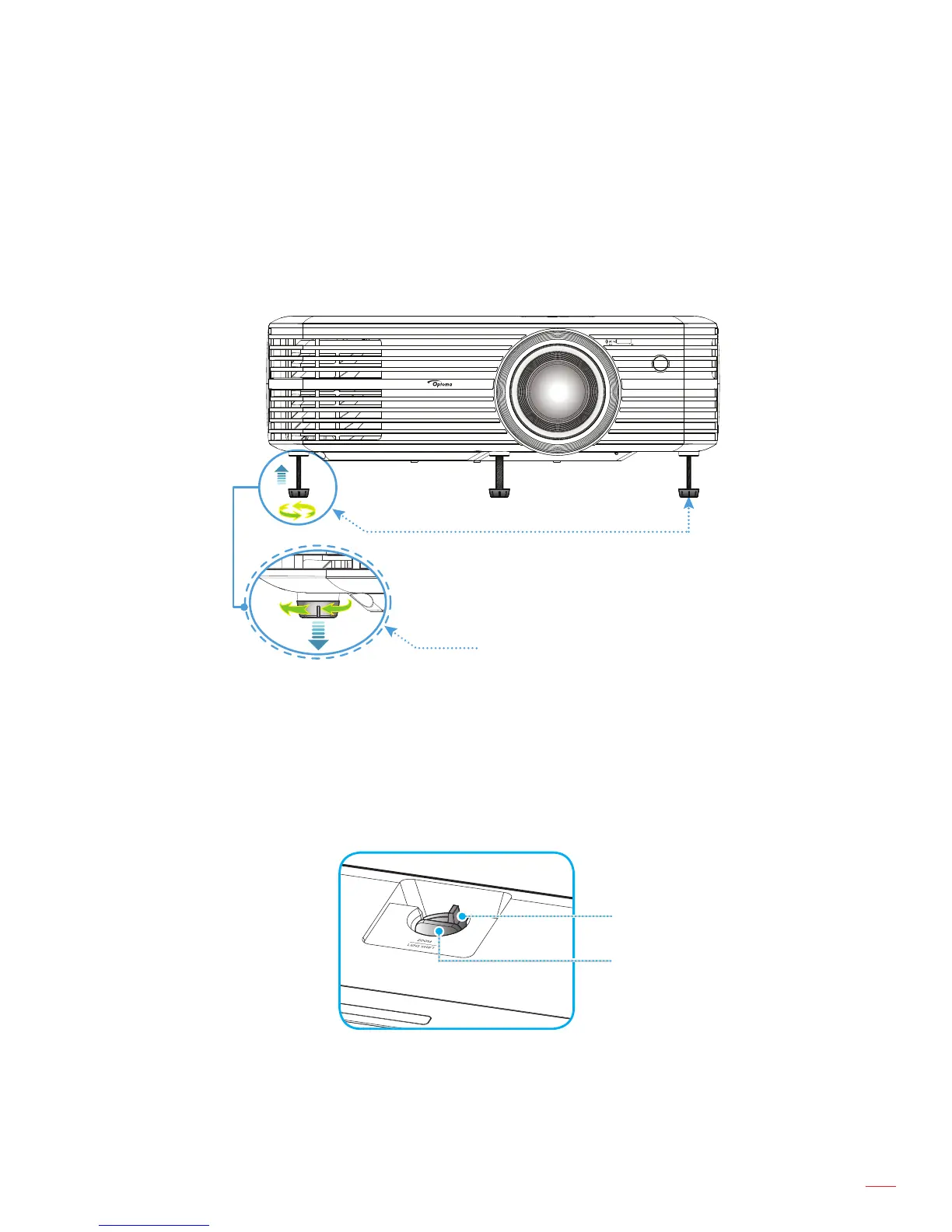

Image height
The projector is equipped with elevator feet for adjusting the image height.
1. Locate the adjustable foot you wish to adjust on the underside of the projector.
2. Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector.
Tilt-Adjustment Feet
Tilt-Adjustment Ring
Zoom, lens shift, and focus
 To adjust the image size and position, do the following:
a. To adjust the image size, turn the zoom lever clockwise or counterclockwise to increase or decrease
the projected image size.
b. To adjust the image position, turn the lens shift dial clockwise or counterclockwise to adjust the
position of the projected image vertically.
Zoom Lever
Lens Shift

Optoma UHD50 Specifications

General

Number of colors	1.073 billion colors
Native aspect ratio	16:9
Projection distance	0.8 - 10.6 m
Vertical scan range	24 - 120 Hz
Horizontal scan range	31000 - 135000 kHz
Projection technology	DMD
Supported aspect ratios	4:3, 16:9
Contrast ratio (typical)	500000:1
Screen size compatibility	34.1 - 302.4 \
Projector native resolution	2160p (3840x2160)
Keystone correction, vertical	-40 - 40 °
Lamp power	240 W
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	10000 h
Focus	Manual
Offset	100 %
Focal length range	20.91 - 32.62 mm
Aperture range (F-F)	2.5 - 3.2
Full HD	Yes
Supported video modes	480i, 480p, 720p, 1080i, 1080p, 2160p
Analog signal format system	-
Supported graphics resolutions	640 x 480 (VGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 1920 x 2160
Serial interface type	RS-232C
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	0
Noise level	28 dB
Noise level (economic mode)	25 dB
Card reader integrated	No
Sustainability certificates	RoHS
RMS rated power	10 W
Placement	Desktop
Product type	Standard throw projector
Product color	White
Market positioning	Presentation
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	348 W
Power consumption (standby)	- W
Power consumption (typical)	317 W
Power consumption (economy mode)	259 W
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	0 - 85 %
Remote control type	IR

Weight and Dimensions

Depth	129.5 mm
Width	391.1 mm
Height	281.9 mm
Weight	5330 g
