MAINTENANCE
Replacing the lamp (continued)
3
2
1
1
6
4
5

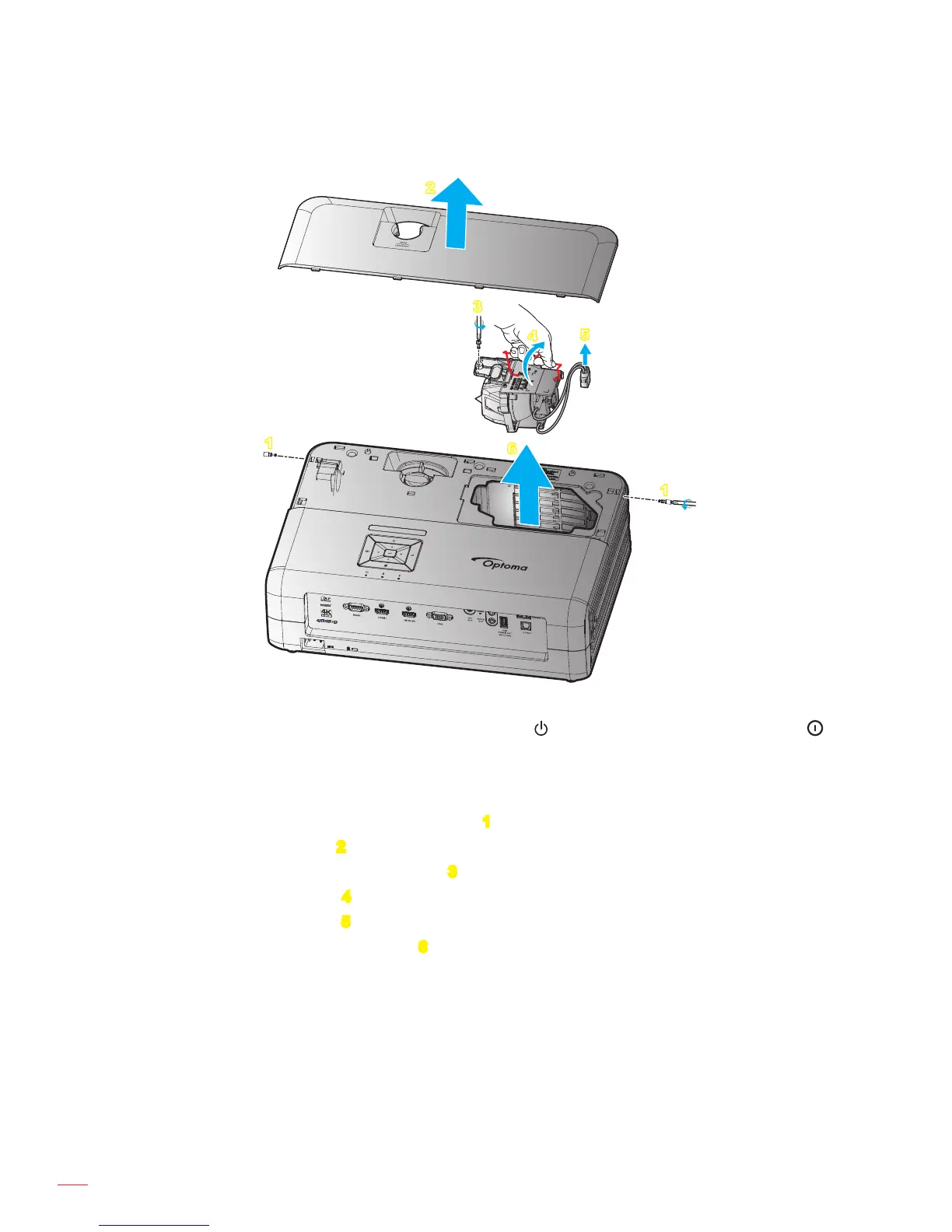

Procedure:
1. Switch off the power to the projector by pressing the “ ” button on the projector keypad or the “ ”
button on the remote control.
2. Allow the projector to cool down for at least 30 minutes.
3. Disconnect the power cord.
4. Remove the 2 screws securing the top cover. 1
5. Remove the top cover. 2
6. Remove the screw on the lamp module. 3
7. Lift up the lamp handle. 4
8. Remove the lamp cord. 5
9. Remove the lamp module carefully. 6
10. To replace the lamp module, reverse the previous steps.
11. Turn on the projector and reset the lamp timer.
12. Lamp Reset: (i) Press "Menu"  (ii) Select "Setup"  (iii) Select "Lamp Settings"

(iv) Select "Lamp
Reset"

(v) Select "Yes".
Note:
 The projector cannot be turned on if the lamp cover has not been placed back on the projector.
 Do not touch the glass area of the lamp. Hand oil can cause the lamp shatter. Use a dry cloth to clean
the lamp module if it was accidentally touched.

Optoma UHD50 Specifications

General

Number of colors	1.073 billion colors
Native aspect ratio	16:9
Projection distance	0.8 - 10.6 m
Vertical scan range	24 - 120 Hz
Horizontal scan range	31000 - 135000 kHz
Projection technology	DMD
Supported aspect ratios	4:3, 16:9
Contrast ratio (typical)	500000:1
Screen size compatibility	34.1 - 302.4 \
Projector native resolution	2160p (3840x2160)
Keystone correction, vertical	-40 - 40 °
Lamp power	240 W
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	10000 h
Focus	Manual
Offset	100 %
Focal length range	20.91 - 32.62 mm
Aperture range (F-F)	2.5 - 3.2
Full HD	Yes
Supported video modes	480i, 480p, 720p, 1080i, 1080p, 2160p
Analog signal format system	-
Supported graphics resolutions	640 x 480 (VGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 1920 x 2160
Serial interface type	RS-232C
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	0
Noise level	28 dB
Noise level (economic mode)	25 dB
Card reader integrated	No
Sustainability certificates	RoHS
RMS rated power	10 W
Placement	Desktop
Product type	Standard throw projector
Product color	White
Market positioning	Presentation
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	348 W
Power consumption (standby)	- W
Power consumption (typical)	317 W
Power consumption (economy mode)	259 W
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	0 - 85 %
Remote control type	IR

Weight and Dimensions

Depth	129.5 mm
Width	391.1 mm
Height	281.9 mm
Weight	5330 g
