optris Xi 400 - PIN Allocation XI 80;410

Electrical Installation 55-
4.1.3 PIN allocation Xi 80/410

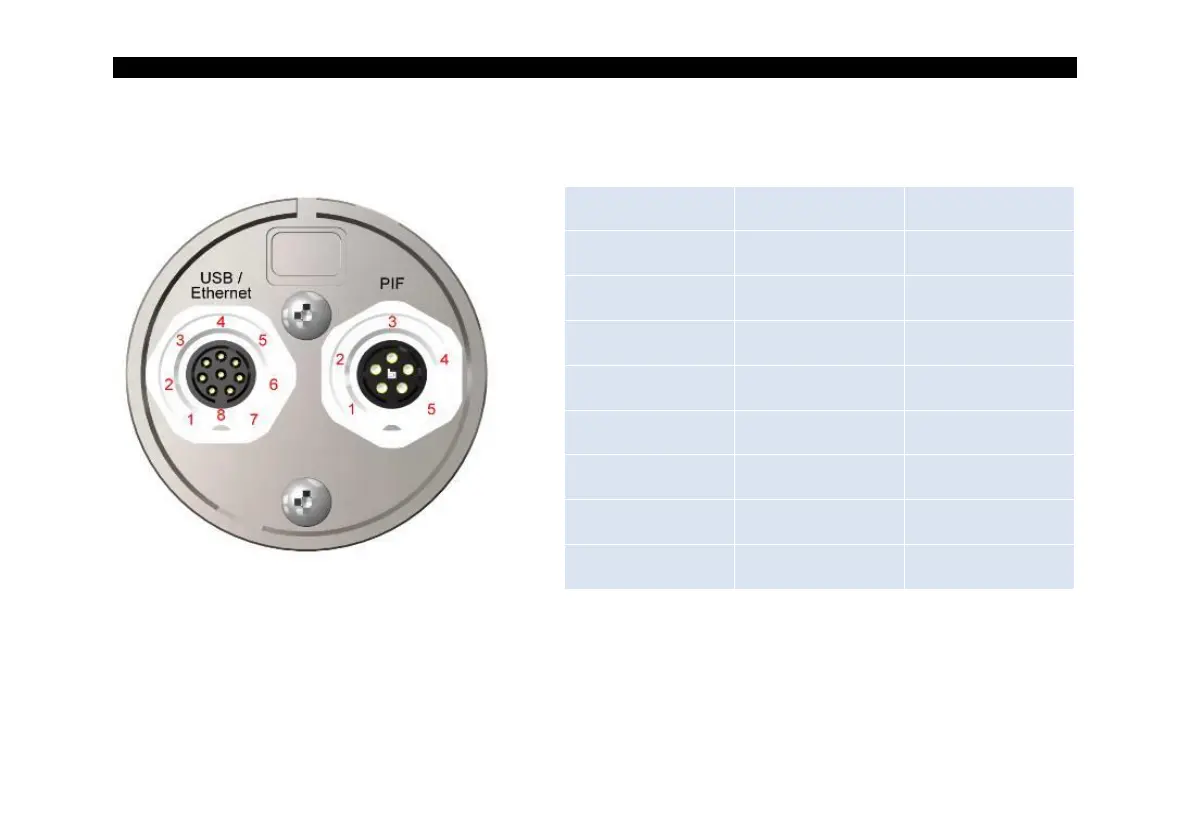

Figure 26: Rear side of Xi 80/410
USB
Ethernet
PIF
1 VCC
1 VCC
2 D +
2 RS485 or AO
3 D -
3 RS485 or AI
4
Tx +
4 GND
5
Tx -
5 GND-ISO
6
Rx +
7
Rx -
8 GND
