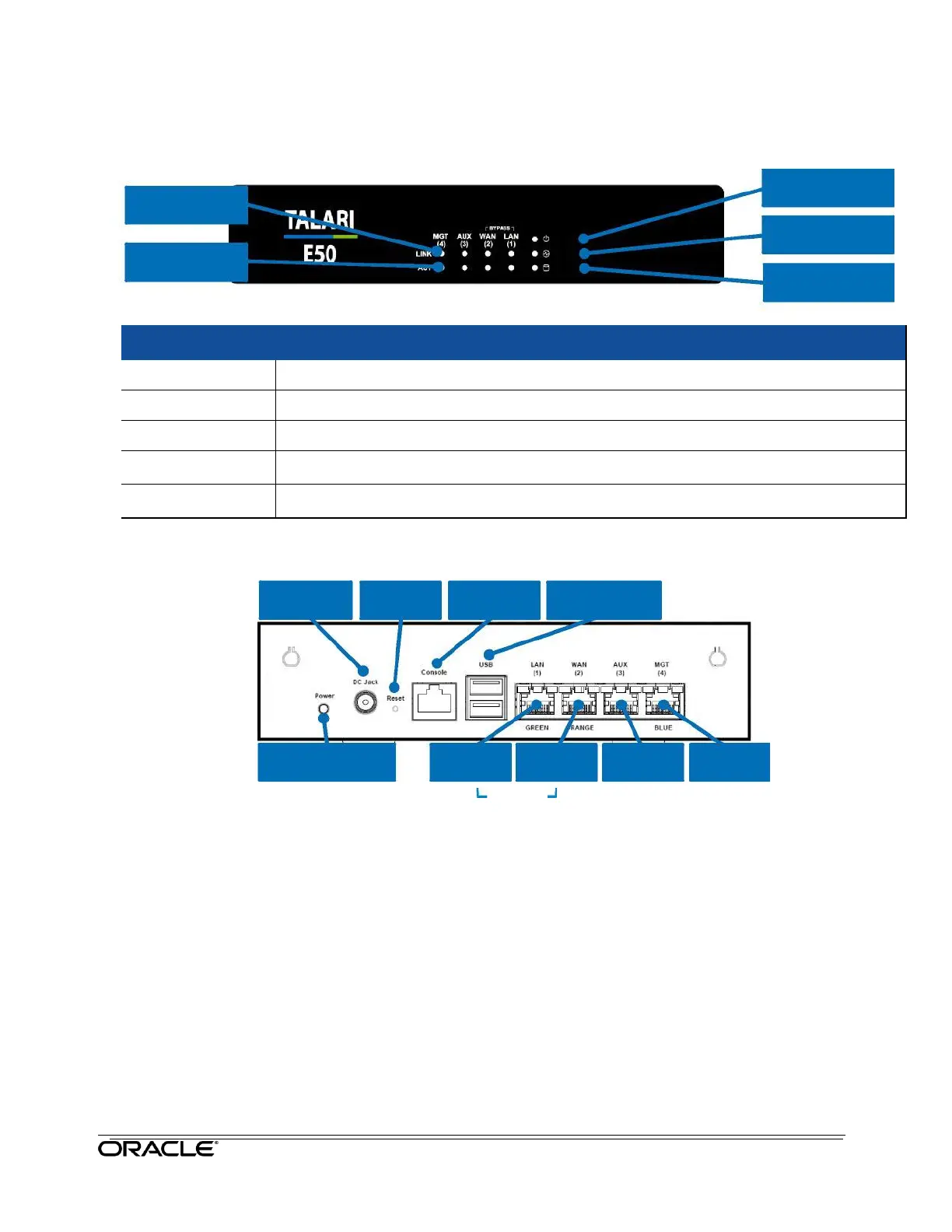

DC Jack Reset Console USB Ports
Power Button Port 1 Port 2 Port 3 Port 4
Ports BYPASS
Oracle Talari E100 Hardware Guide
Front Panel Configuration
LED Description
Link/Speed
Green = 100Mbps; Amber = 1000Mbps
Activity
Flashing Amber = Network Activity
Power Status
Green = Power On
Future Option
Reserved for future use
SSD Status
Flashing Amber = Disk Activity
Rear Panel Configuration
Link/Speed
Activity
Power Status
Future Option
SSD Status
Front LED Codes
