Reimaging of the E100
1. Connect a serial cable to the Console port. It will be configured at 115200 baud.
2. Insert the USB flash drive into the USB port and power cycle the unit.

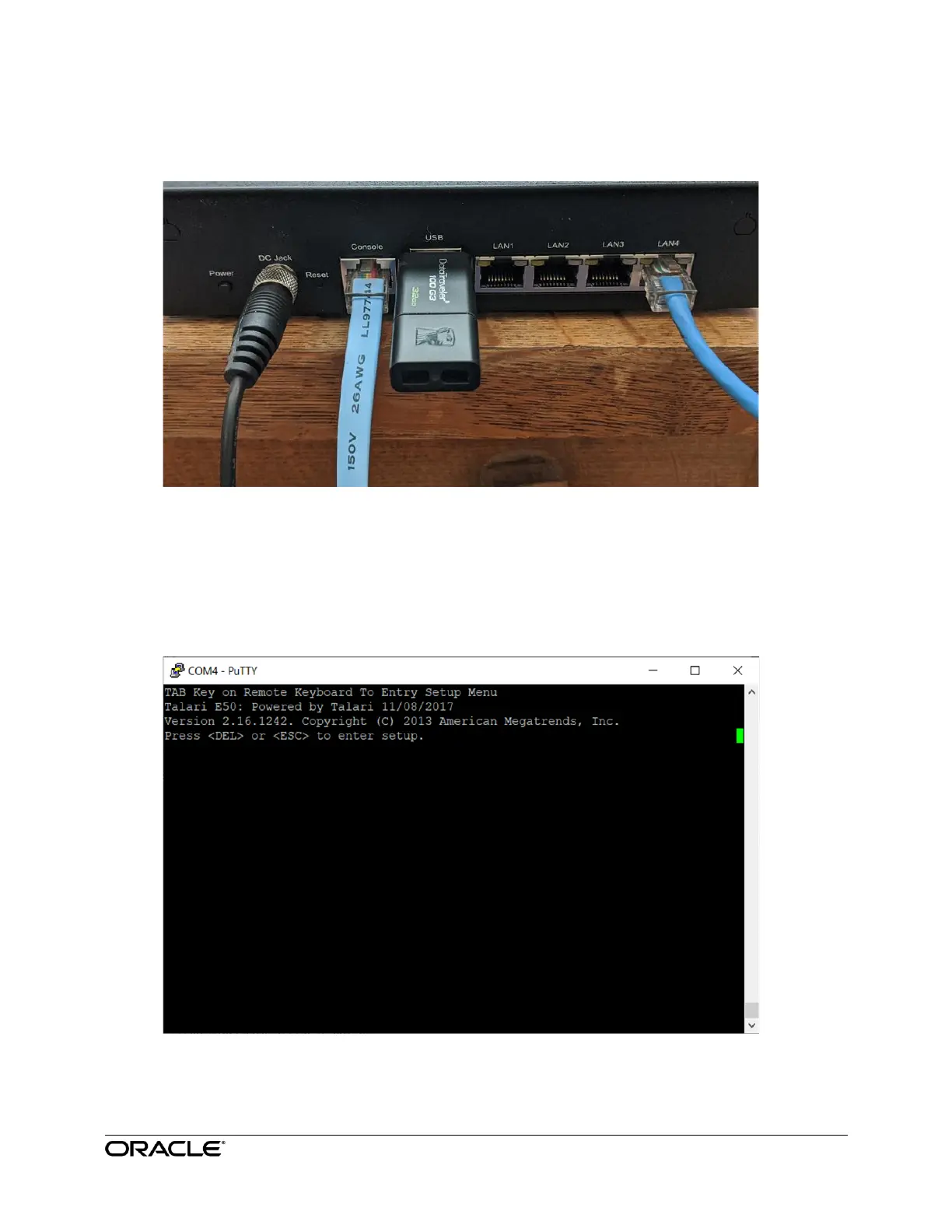

The E50 shown in the image above also has the management port
connected in the LAN4 port.
3. Enter the BIOS to set the USB stick to first in the boot order.
About 30 seconds after the appliance is power cycled, the following screen
appears.
Press DEL a few times until the password prompt appears.
