Oransi OVHM80 User Manual

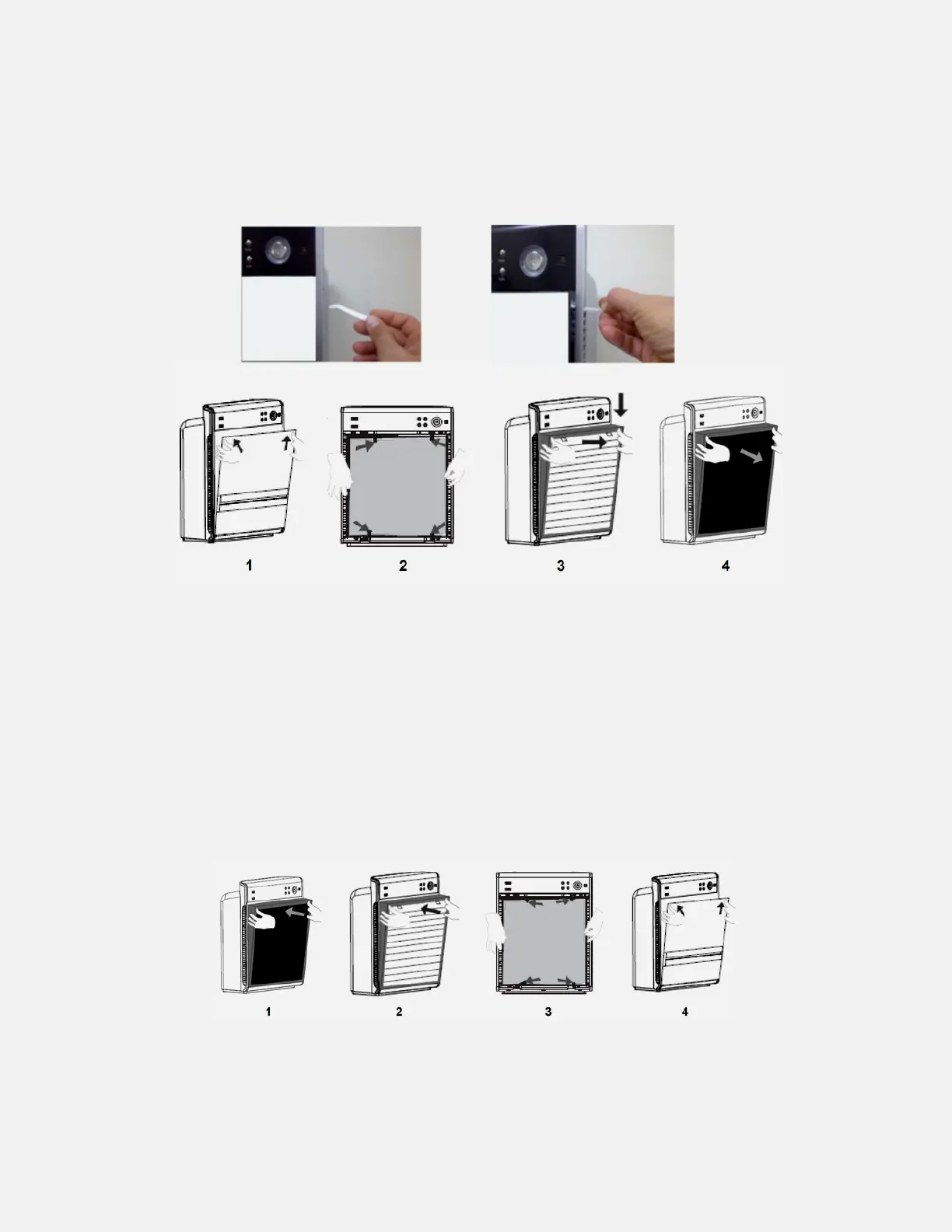

Using the front cover removal tool, or any non-conductive item such as the handle of a
plastic utensil, a wooden chopstick or similar item can be used in place of the tool provided
with your unit. Insert the tool into the uppermost side air intake slot and gently push
outwards against the back surface of the front cover until the top corner of the front panel
‘pops’ free, as shown below. Repeat this process for the other side and then lift the entire
front panel up and away from the main body, exposing the filter compartment. Place the
front panel out of the way and protect it from damage.
Pre-filter: Turn the 4 locks per the direction of the arrows to release the pre-filter.
HEPA Filter: Hold the small ribbon and pull the filter out.
Carbon Filter: Hold the small ribbon and pull the filter out.
Disassembly
1.
2.
3.
4.
M A I N T E N A N C E
12
INSTRUCTIONS ARE LISTED IN NUMERICAL ORDER. USE AIR PURIFIER
OVERVIEW AND PHOTOS FOR REFERENCE.
Carbon Filter: Put the filter in place from the bottom and then push it into the cabinet.
HEPA Filter: Put the filter in place from the bottom and then push it into the cabinet.
Pre-filter: Place in the pre-filter and turn the locks to secure it.
Front cover: Secure the interlock at the bottom first and push the whole cover inwards at
the top two corners to secure it
Assembly
1.
2.
3.
4.

Oransi OVHM80 Specifications

General

Brand	Oransi
Model	OVHM80
Category	Air Cleaner
Language	English
