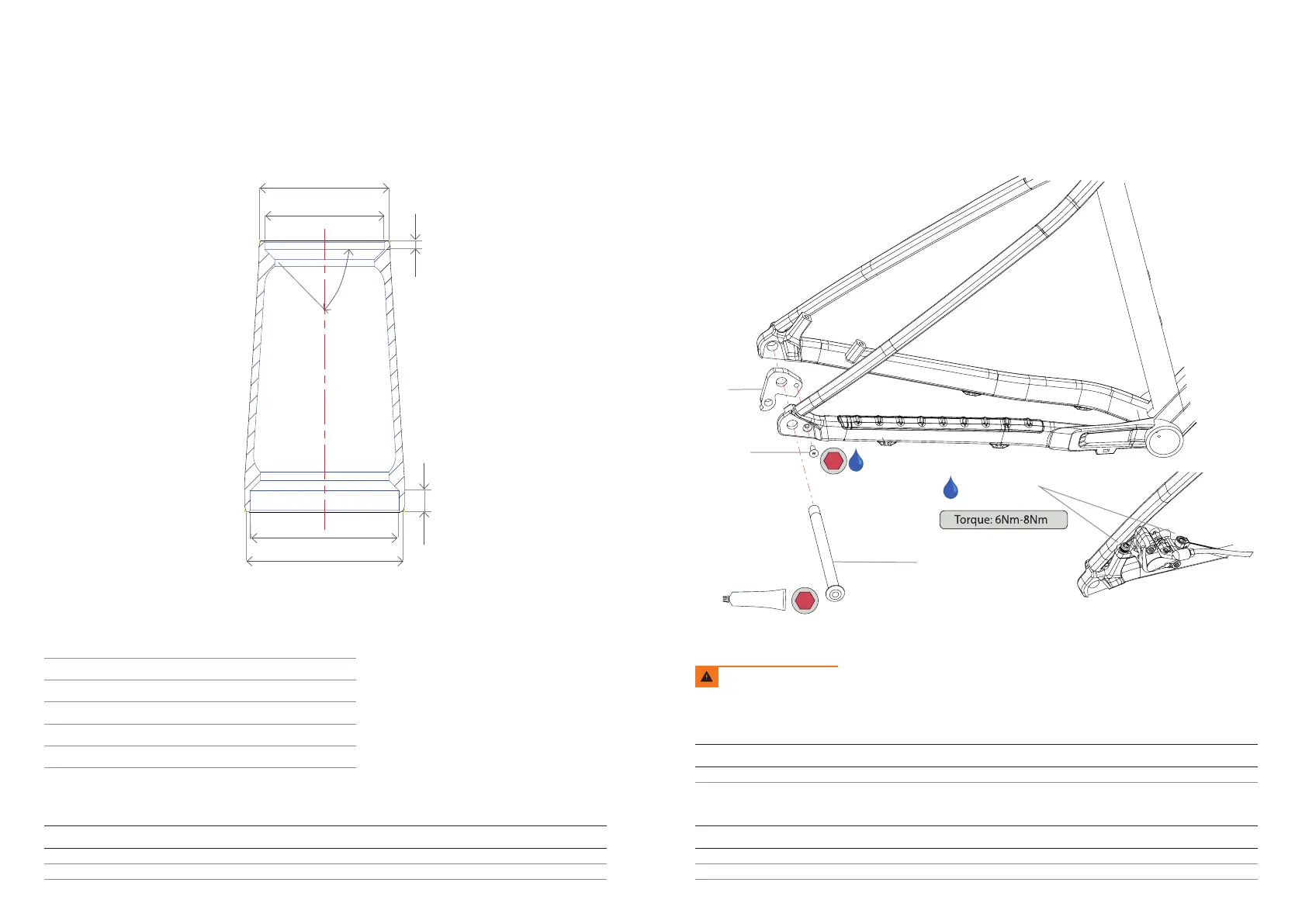

TECHNICAL MANUAL BLUE PAPER ALMA· HYDRO 202122 | ORBEA ORBEA | 23
EN
HEADSET
HEADTUBE DIMENSIONS
REAR AXLE / DERAILLEUR HANGER
EXTERNAL HEADTUBE DIAMETER OD46
TOP BEARING IS42/28.6
TOP BEARING ANGLE 45º
BOTTOM BEARING IS52/40
BOTTOM BEARING ANGLE 45º
HEADSET SHIS CODE
MTB INTEGRATED HEADSET 1” 1/81” 1/2
ART Nº: X0230000 QUANTITY
ACROS 1-1/8"-1-1/2" INTEGRATED HEADSET 1
TOPCAP+STARNUT 1-1/8" 1
01 ORBEA THRU-AXLE 12x168 (1.5x12)
ART Nº: X0800000 QUANTITY
ORBEA THRU-AXLE 12x168 (1.5x12) 1
02 REAR DERAILLEUR HANGER STD X12
ART Nº: X0810000 QUANTITY
2.1 BOLT M5x12 1
2.2 DER. HANGER MTB STD X12 1
Ø 46
Ø 42
3
7.5
45º
Ø 52.1
Ø 56
1
3
3 N.m
6
10 N.m
GREASE
1
2.2
2.1
Fixing bolts
Always follow the recommended
torque settings.
