TECHNICAL MANUAL BLUE PAPER ALMA· HYDRO 202124 | ORBEA ORBEA | 25
EN

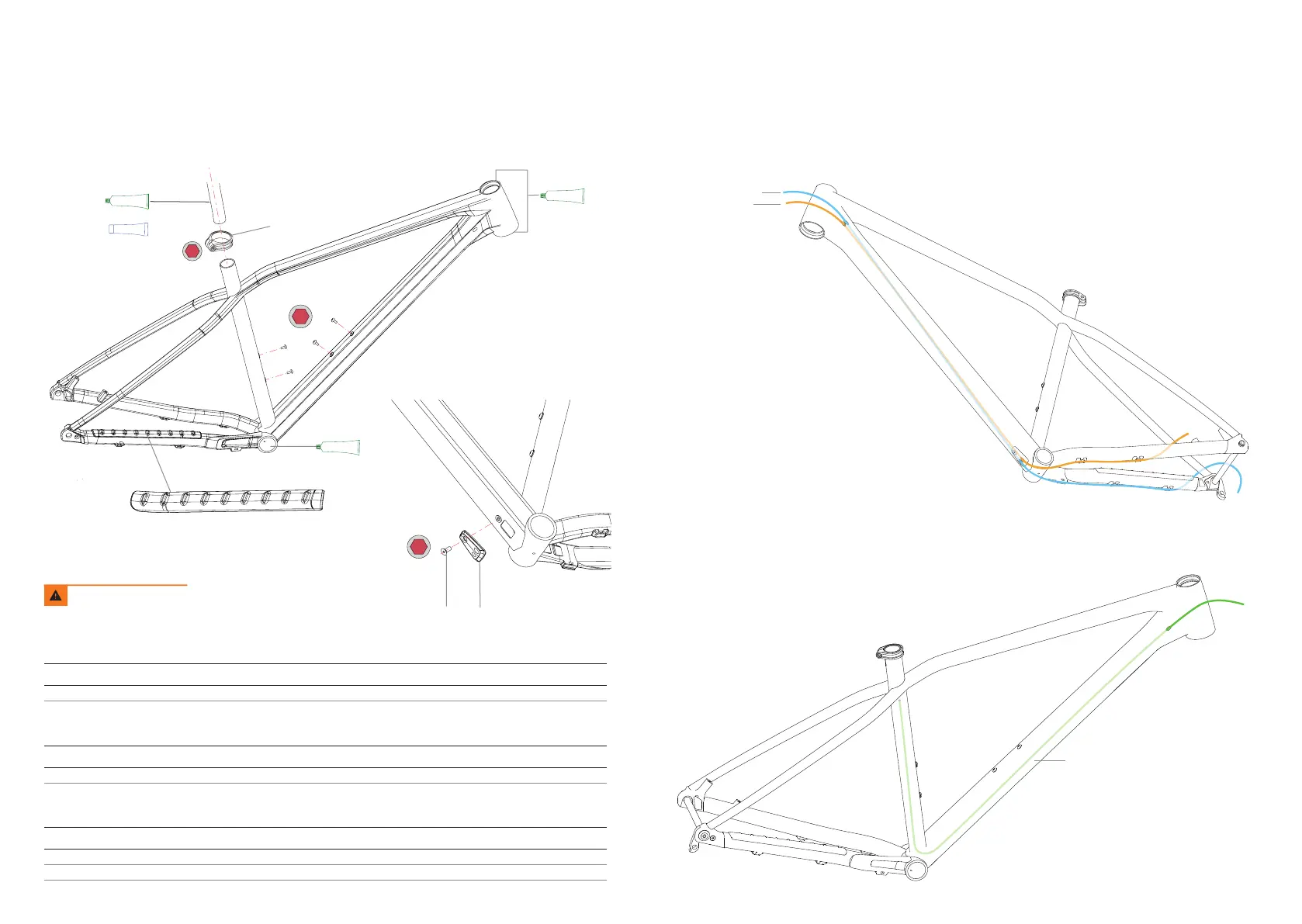

FRAME HARWARE
03 ADHESIVE RUBBER CHAINSTAY PROTECTOR ALMA 2021
ART Nº: X0820000 QUANTITY
ADHESIVE RUBBER CHAINSTAY PROTECTOR ALMA 2021 1
04 SEATPOST CLAMP 31.8 BLACK
ART Nº: X0760000 QUANTITY
SEATPOST CLAMP 31.8 BLACK 1
05 BB CABLE GUIDE ALMA H 21
ART Nº: X0830000 QUANTITY
5.1
BB CABLE GUIDE ALMA H 1
5.2 BOLT M5x12 1
4
5 N.m
3
4 N.m
GREASE
GREASE
GREASE
FIBER CARBON GRIP
3
2 N.m
Alloy seatposts
Carbon seatposts
3
5.1 5.2
CABLING
REAR BRAKE AND REAR DERAILLEUR CABLE ROUTING
DROPPER SEATPOST REMOTE CABLE ROUTING
Rear derailleur
Dropper seatpost remote
Rear brake
4
Always follow the recommended
torque settings.
