TECHNICAL MANUAL BLUE PAPER GAIN · HYDRO 202142 | ORBEA ORBEA | 43
EN

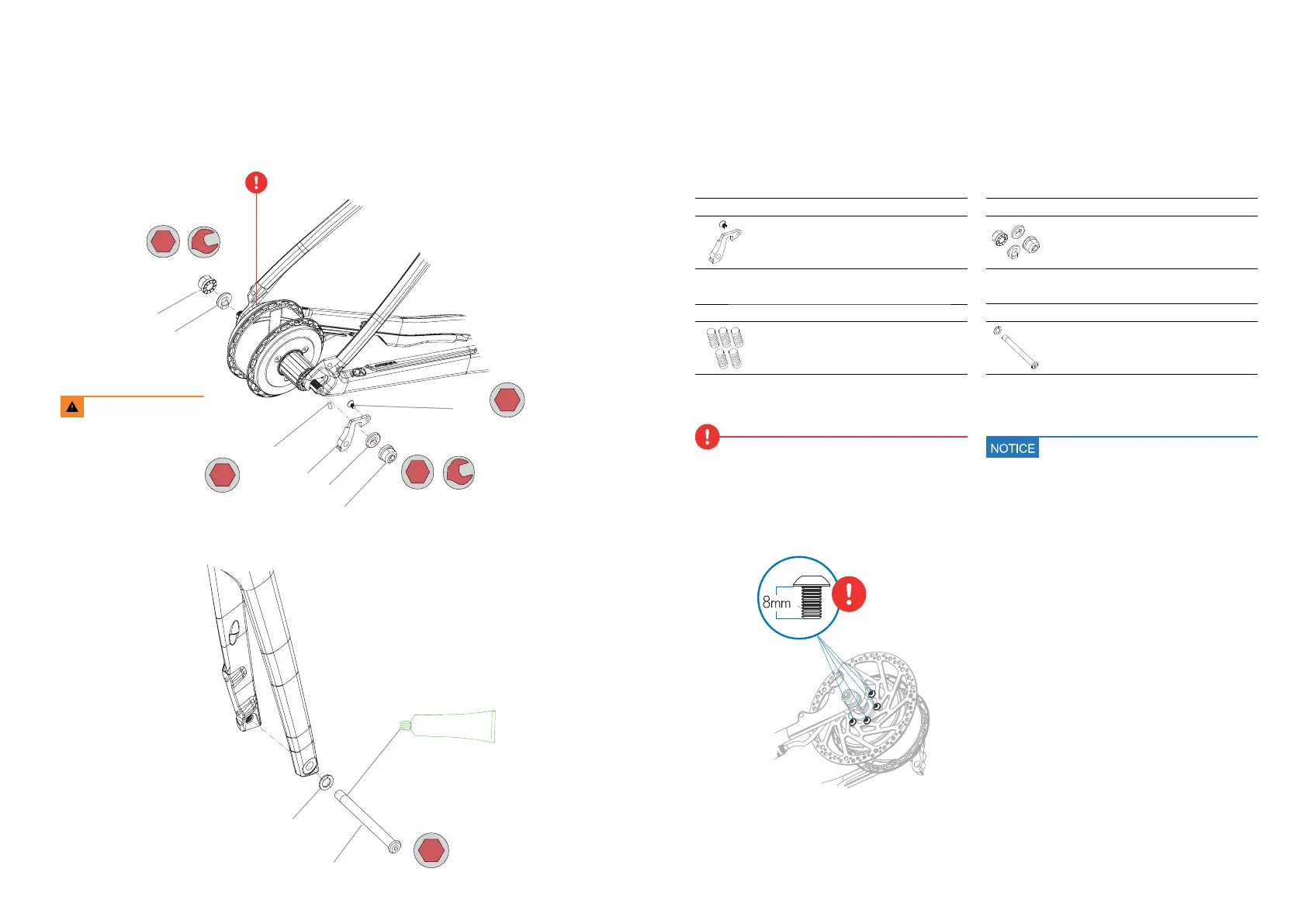

AXLES AND REAR DERAILLEUR
REAR AXLE
FRONT AXLE
4
25 N.m
17
8
25 N.m
3
3
4 N.m
25 N.m
17
8
25 N.m
2
1 N.m
7.1
7.2
8
6.1
6.2
7.2
7.1
6
25 N.m
GREASE
9.2
9.1
Always follow the recommended
torque settings.
06 REAR DERAILLEUR X35 HYDRO
ART Nº: X0970000 QTY.
6.1 REAR DERAILLEUR X35 HYDRO
1
6.2 BOLT M4x8 COUNTERSUNK
1
08 PASS SENSOR GRUBSCREW KIT
ART Nº: X0990000 QTY.
GRUBSCREW M4x10
5
07 X35 MOTOR NUT/WASHER KIT
ART Nº: X0980000 QTY.
7.1 NUT M12 MOTOR X35
2
7.2 ANTI-TURN WASHER MOTOR X35
2
09 THRU-AXLE ROAD 12x119mm
DOUBLE-LEAD THREAD 2P1.0x13mm
ART Nº: X0530000 QTY.
9.1 THRU-AXLE ROAD 12x119x2P1.0x13mm
1
9.2 AXLE WASHER 12mm
1
The Gain fork is only compatible with Mavic
Speed Release thru-axles with a double-lead
2P1.0 thread pitch for faster wheel changes.
The use of axles with other thread pitch will
damage the frame.
Only use the original 8mm bolts (Y0000113) to
attach the rear rotor to the motor hub. The use
of longer bolts will damage the motor electronics.
The use of shorter bolts will compromise the
attachment of the rotor to the hub, potentially
causing accidents and serious injuries.
