TECHNICAL MANUAL BLUE PAPER GAIN · HYDRO 202154 | ORBEA ORBEA | 55
EN

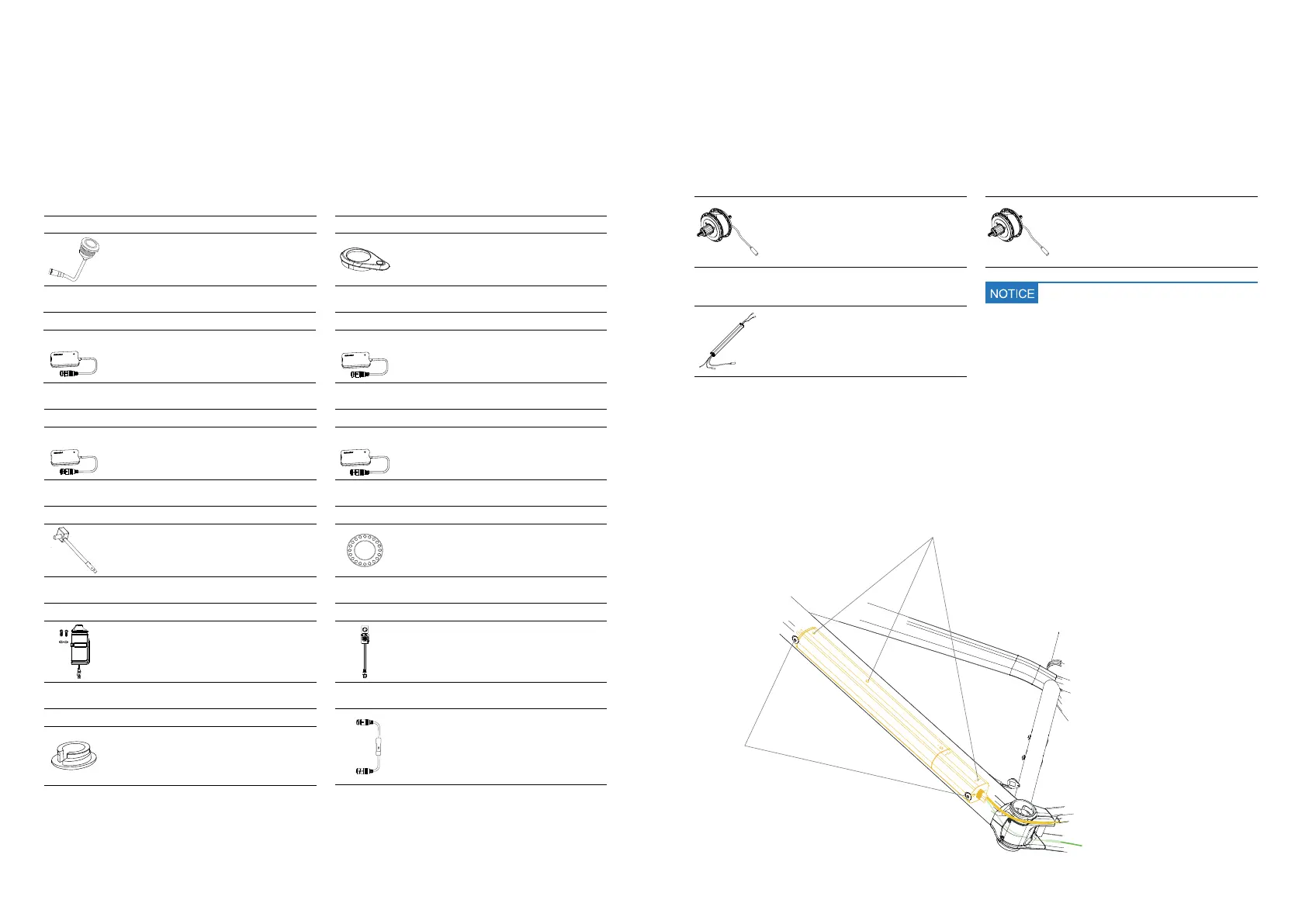

SPARE PARTS
33 PASS SENSOR X35 B/C MAHLE 63mm
ART Nº: X1210000 QTY.
PASS SENSOR X35 B/C MAHLE 63mm
1
35 RANGE EXTENDER EXTERNAL BATTERY 208Wh MAHLE
ART Nº: Y002 QTY.
35.1 MAHLE RANGE EXTENDER EXTERNAL
BATTERY
1
35.2 RANGE EXTENDER MOUNTING CAGE
1
35.3 FRAME FIXING BOLTS
2
34 MAGNETIZED CASSETTE LOCKRING X35 MAHLE
ART Nº: X1220000 QTY.
MAGNETIZED CASSETTE LOCKRING X35
MAHLE
1
36 INTERNAL BATTERY CHARGING POINT X35 MAHLE C
ART Nº: X1230000 QTY.
INTERNAL BATTERY CHARGING POINT X35
MAHLE C
1
37 X35 MOTOR CABLE PROTECTOR
ART Nº: X1240000 QTY.
X35 MOTOR CABLE PROTECTOR
1
38 UPDATES CABLE USB-GCU
611.#8#+.#$.'(14#76*14+<'&14$'#&'#.'45
32 X35 MAHLE CHARGER. 100-240V. 2A EU
ART Nº: X1170000 QTY.
EU
:/#*.'%*#4)'48#
1
MAINS CABLE EU
1
32 X35 MAHLE CHARGER. 100-240V. 2A US
ART Nº: X1170100 QTY.
US
:/#*.'%*#4)'48#
1
MAINS CABLE US
1
32 X35 MAHLE CHARGER. 100-240V. 2A UK
ART Nº: X1170200 QTY.
UK
:/#*.'%*#4)'48#
1
MAINS CABLE UK
1
32 X35 MAHLE CHARGER. 100-240V. 2A AUS
ART Nº: X1170300 QTY.
AU
:/#*.'%*#4)'48#
1
MAINS CABLE AUS
1
39 X35 MOTOR MAHLE 250W 25 KPH
THE X35 MOTOR AND COMPLETE REAR WHEELS ARE
10.;#8#+.#$.'#54'2.#%'/'06+6'/56*417)*
AN AUTHORIZED ORBEA DEALER
40 X35 INTERNAL BATTERY 244,8WH ANT+ HORIZONTAL
AND VERTICAL MOUNTING*
6*':+06'40#.$#66'4;+510.;#8#+.#$.'#5
A REPLACEMENT ITEM THROUGH AN AUTHORIZED
ORBEA DEALER
39 X35 MOTOR MAHLE 250W 20 MPH
THE X35 MOTOR AND COMPLETE REAR WHEELS ARE
10.;#8#+.#$.'#54'2.#%'/'06+6'/56*417)*
AN AUTHORIZED ORBEA DEALER
30 IWOC ONE REMOTE (WITHOUT MOUNTING PLATE)
ROUND CONNECTOR
ART Nº: X1420000 QTY.
IWOC ONE REMOTE (WITHOUT MOUNTING
PLATE) ROUND CONNECTOR
1
31 IWOC ONE MOUNTING PLATE.
ROUND
ART Nº: X1430000 QTY.
IWOC ONE MOUNTING PLATE. ROUND
1
* The X35 internal battery is installed inside
the Gain downtube vertically. For that pur-
pose, internal batteries from MY2021 and
onwards feature two threaded holes on their
side for installation on 2021 Gain frames, be-
sides the three holes on its bottom side for
installation on pre2021 Gain frames.
Batteries from MY2021 are compatible with
pre2021 Gain, Optima and eMX24 frames.
However, pre2021 batteries are not compati-
ble with MY2021 and onwards frames.
Pre MY2021
ƂZKPIJQNGU
/;ƂZKPI
holes
