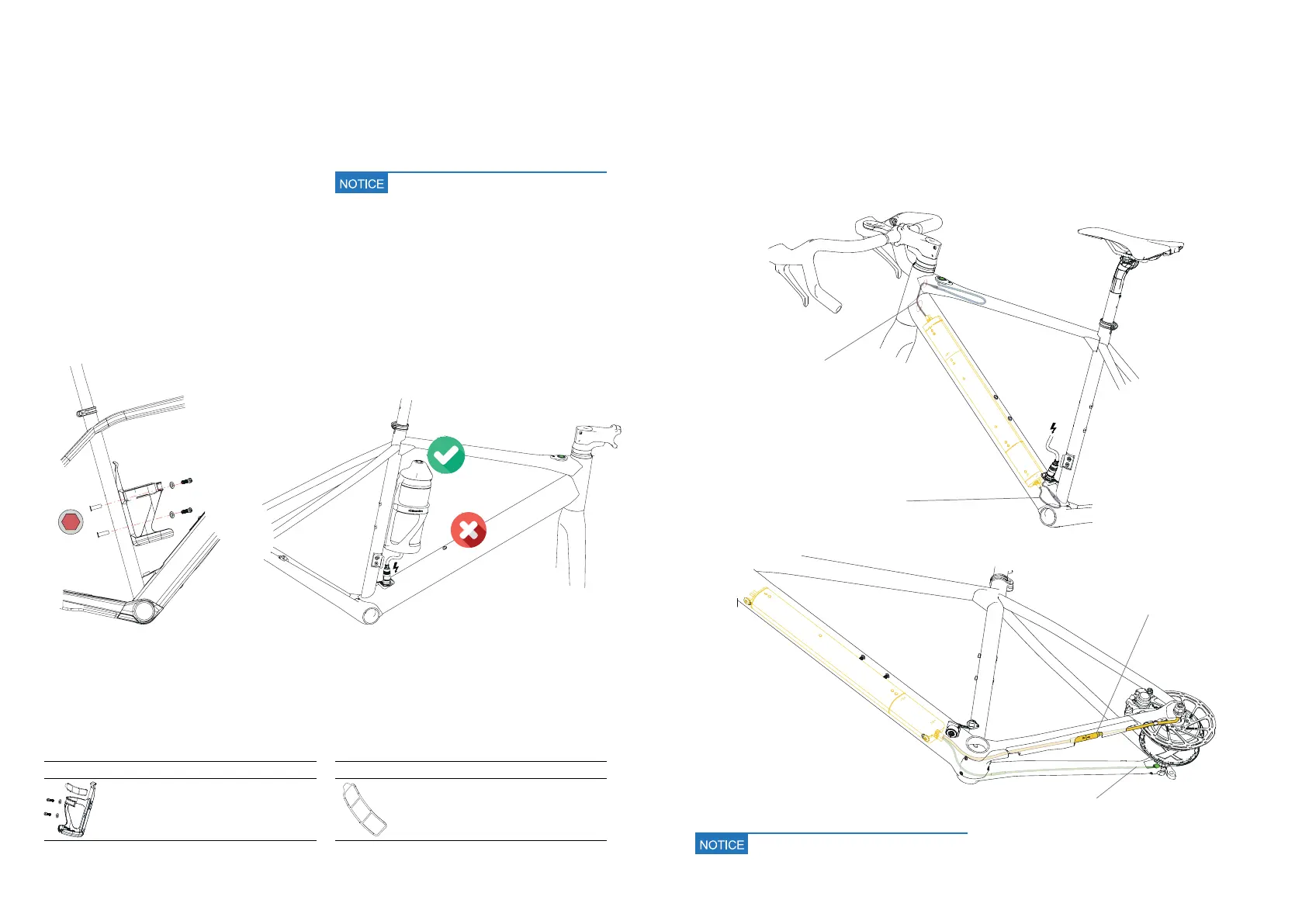

INSTALLING THE RANGE EXTENDER ON GAIN
The Range Extender must be installed on the frame using the
Ebikemotion Range Extender cage included with the unit.
The installation of the Range Extender on Gain must al-
ways be done on the seat tube, using the threaded inserts
on the frame.
For its installation, detach the Range Extender from the
holder cage, then install the holder onto the seat tube.
RANGE EXTENDER SPARES
Always use the M5x16 bolts and washers in-
cluded with the Range Extender to install it
on Gain. The bolts for standard bottle cages
included with the frame if your bicycle did not
include a Range Extender originally are too
short for the weight of the Range Extender.
It is recommended to check the recommended settings
TGIWNCTN[VQCXQKFFCOCIGVQVJGHTCOGQTƂZKPIJCTFYCTG
* It is not possible to install and/or connect two Range
Extender units on the same system/bicycle.
4
5 N.m
41 RANGE EXTENDER CAGE
ART Nº: X1250000 QTY.
41.1 RANGE EXTENDER CAGE
1
41.2 RANGE EXTENDER SILICON BAND
1
41.3 BOLT M5x16
2
41.4 WASHER M5
2
42 RANGE EXTENDER SILICON BAND
ART Nº: X1260000 QTY.
RANGE EXTENDER SILICON BAND
1
X35 SYSTEM CABLE ROUTING
ON GAIN HYDRO
Iwoc One
Charging point
Motor cable
PASS sensor
Read the Lights section of this manual to know
about the lights cable routing on Gain Hydro.
