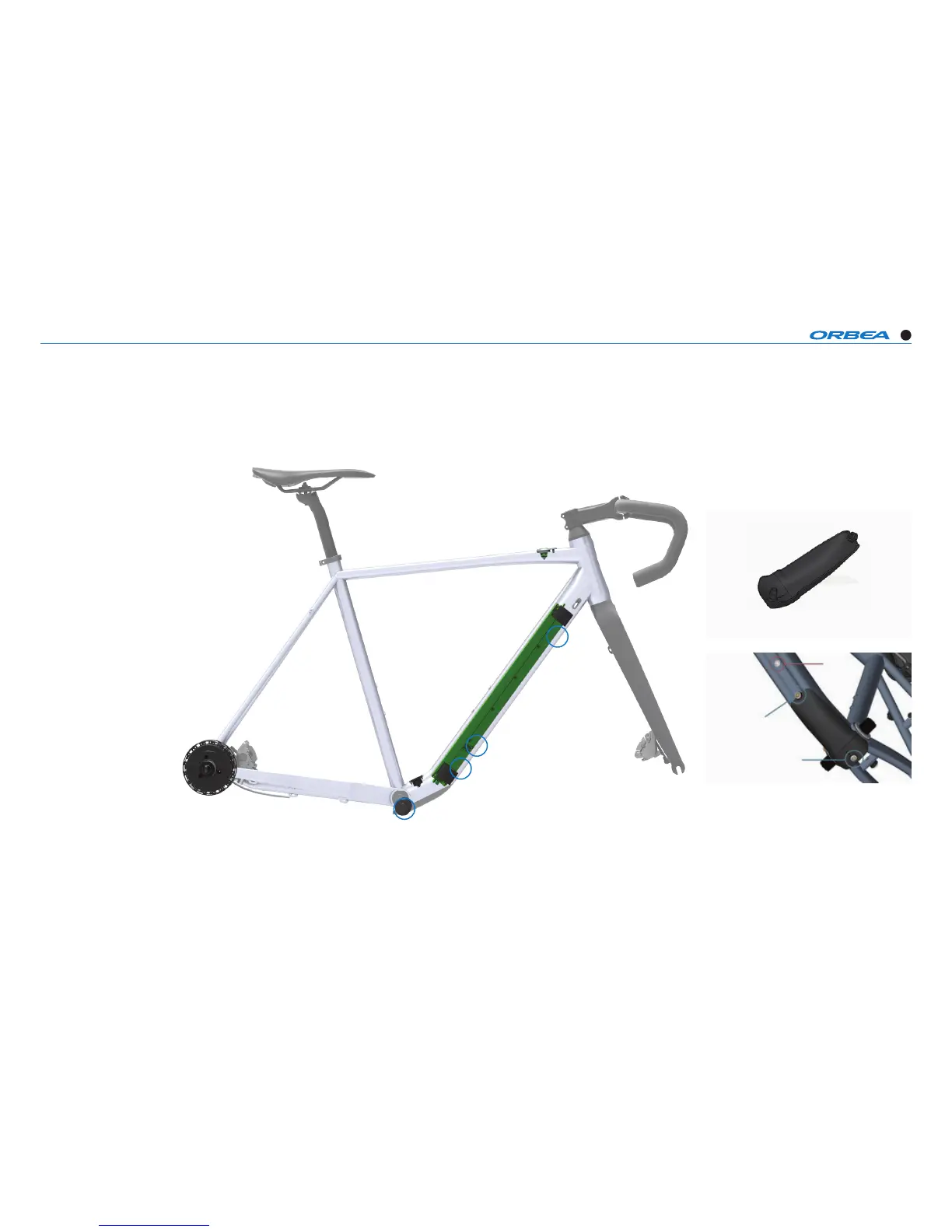

BATTERY PLACEMENT AND COVER
1/ Secure the battery to the frame by the points A
and B with the M5x10 DIN 7380 screws and rout
the pertinent cables (derailleurs and disc brake).
2/ Later, x the bottom cover by the points C and
D, using the provided M5x20 INOX (DIN 7380) and
M5x25 INOX (DIN 7991) respectively.
A
B
B
C
C
D
D
bottom cover
