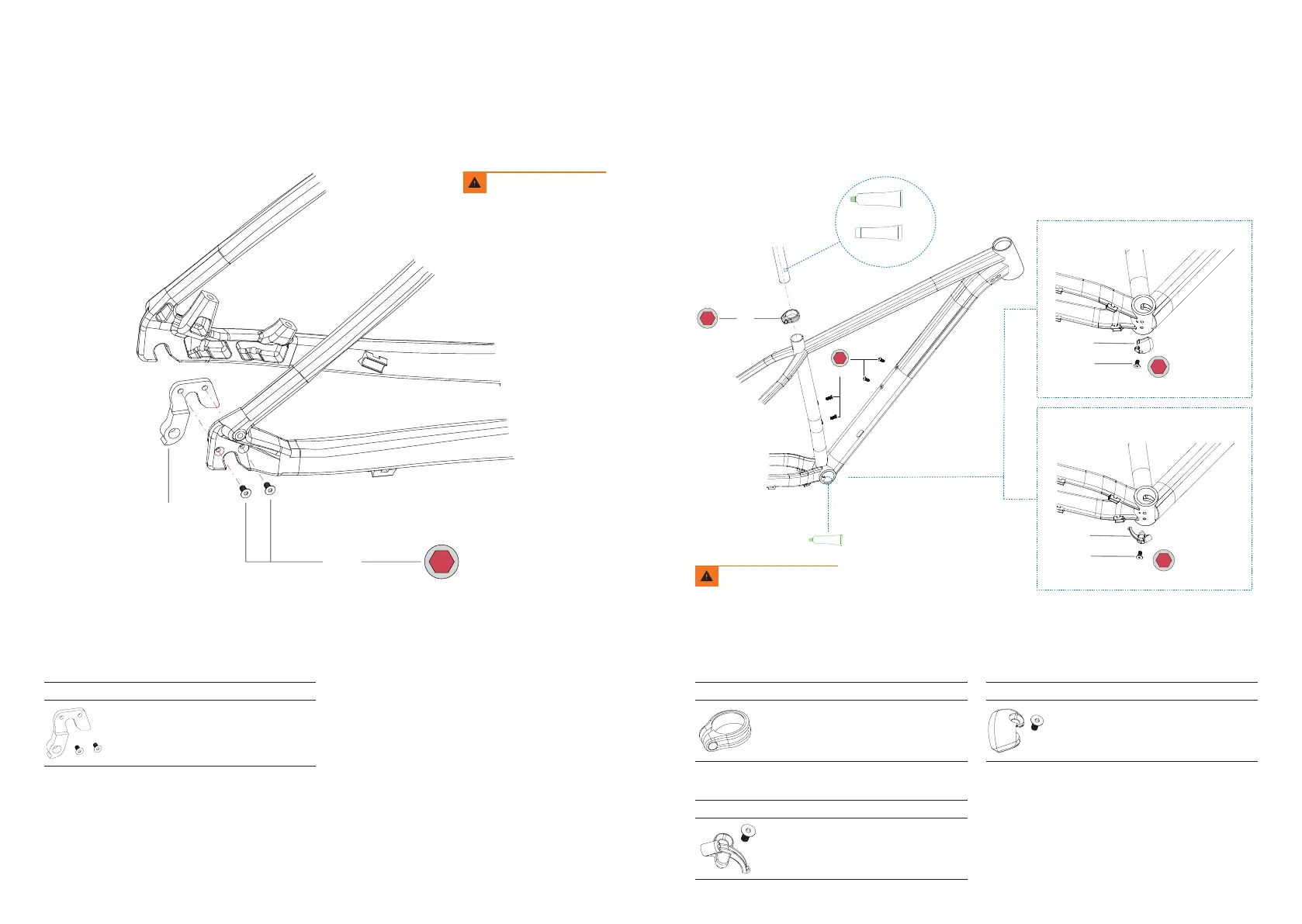

03 DERAILLEUR HANGER Nº51 QR MTB STD
ART Nº: X259 QTY.
3.1 Derailleur hanger Nº51 QR MTB STD
1
3.2 Bolt M4x8 DIN7991
2
OTHER FRAME HARWARE
Always follow the recommended
torque settings.
04 SEATPOST CLAMP 31,8 BLK
ART Nº: X076 QTY.
Seatpost clamp 31.8 BLK
1
06 BB CABLEGUIDE FRONT DERAILLEUR ONNA 2X
ART Nº: XA96 QTY.
6.1 Plastic BB cableguide Onna 2X
1
6.2 Bolt M6x10 DIN7991
1
05 BB CABLEGUIDE COVER ONNA 1X
ART Nº: XA95 QTY.
5.1 Plastic BB cableguide Onna 1X
1
5.2 Bolt M6x10 DIN7991
1
REAR DERAILLEUR HANGER
WITH FRONT DERAILLEUR
WITHOUT FRONT DERAILLEUR
Alloy seatposts
Carbon seatposts
Always follow the recommended
torque settings.
