BLUE PAPER ONNA · 202216 | ORBEA ORBEA | 17TECHNICAL MANUAL 17
EN
GEOMETRY AND SIZING
ONNA
HEIGHT (CM) HEIGHT ( IN) SIZE
145-160 55.1”-65.0” XS -27. 5”
155-170 61.1”-66.9” S-27. 5”
155-170 61.1”-66.9” S-29”
165-180 65.0”-70.9” M-29”
175-190 70.1”-74.8” L-2 9”
185-195 72.8”-76.8” XL-2 9 ”
* The measurements on the sizing table are orientative. The best way to know the correct frame size for you is to try a
bike at one of our authorized dealers.

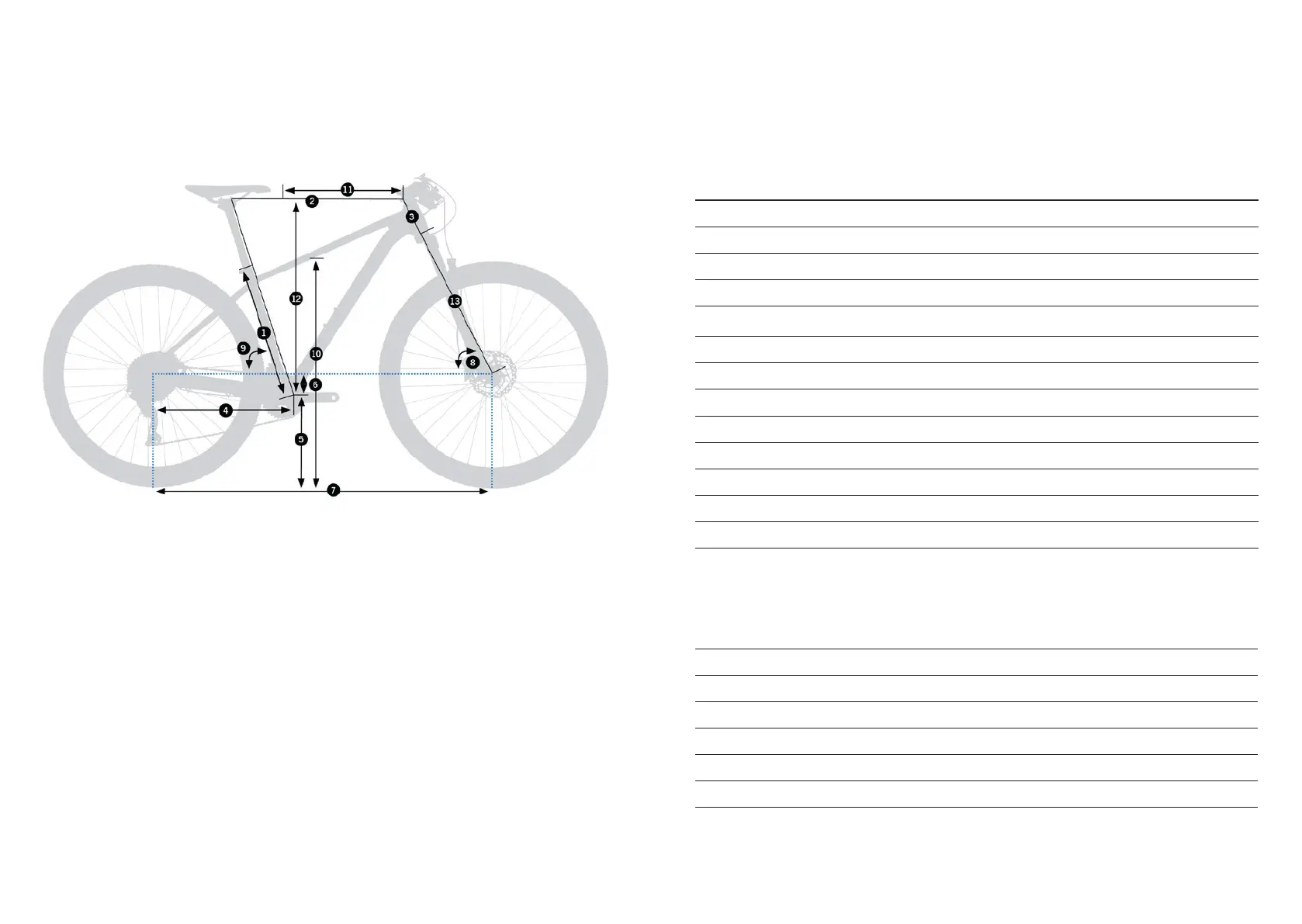

SIZE XS-27.5” S-27.5” S-29” M-29” L-29” XL-29”
1 - Seat Tube (C-T))
350 388 388 430 470 540
2 - Top Tube (EFF)
526 549 561 589 614 646
3 - Head Tube
95 105 95 95 105 120
4 - Chainstay
430 430 440 440 440 440
5 - BB Height
312 312 309 309 309 309
6 - BB Drop
45 45 64 64 64 64
7 - Wheelbase
1049 1073 1093 1121 1146 1180
8 - Head Angle
68.5º 68.5º 68.5º 68.5º 68.5º 68.5º
9 - Seat Angle
74.5º 74.5º 74.5º 74.5º 74.5º 74.5º
10 -Standover
668 705 705 739 770 826
11 - Reach
365 385 390 418 440 468
12 - Stack
582 591 617 617 627 641
13 - Fork Length
498.9 498.9 517.9 517.9 517.9 517.9
