TECHNICAL MANUAL BLUE PAPER ORCA · OMR 202120 | ORBEA ORBEA | 21
EN
* ID: Internal headtube diameter.
** OD: External headtube diameter.
HEADSET
HEADTUBE DIMENSIONS
01 HEADSET ICR BEARING KIT
ART Nº: X043 QUANTITY
1.1 TOP BEARING 1-1/2 INTERN. CABLING 1
1.1 BOTTOM BEARING 1-1/2 1
02 HEADSET DUST SEAL KIT
ART Nº: X044 QUANTITY
2.1 TOP DUST SEAL H/SET ROAD 1
2.1 BOTTOM DUST SEAL H/SET ROAD 1
03 COMPRESSION RING INTERNAL CABLING. ROAD
ART Nº: X045 QUANTITY
COMPRESSIÓN RING INTERNAL CABLING. ROAD 1
04 FRAME HEADSET COVER. ORCA OMR
ART Nº: X046 QUANTITY
FRAME HEADSET COVER. ORCA OMR 1

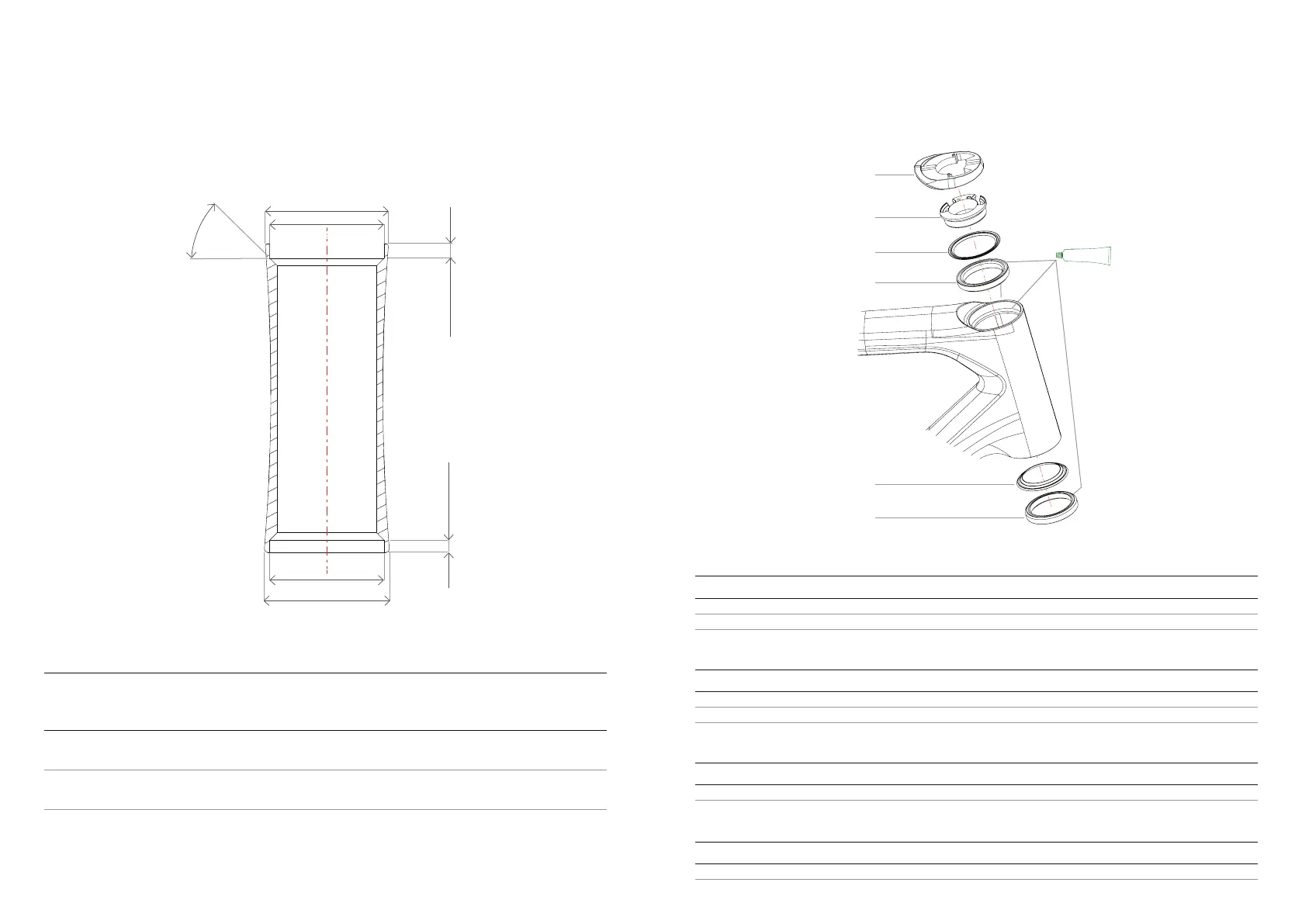

HEADSET ASSEMBLY
AND SPARES
Ø 58
Ø 58
Ø 52.1 ± 0.05
Ø 52.1 ± 0.05
45º
8.3
+0
-0.2
8.3
+0
-0.2
GREASE
1.2
4
3
2.1
2.2
1.1
Headset
URGEKƂECVKQPU
TYPE ID* OD**
Bearing
angle
Compression ring/
crown race
contact angle
SHIS
CODE
Bearing
dimensions
TOP
1-1/8"
Integrated
52.1mm 58mm 45º 45º IS52/42
Angular contact
bearing 42x52x7mm
BOTTOM
1-1/2"
Integrated
52.1mm 58mm 45º 45º IS52/40
Angular contact
bearing 40x52x7mm

Orbea ORCA M40 Specifications

General

Frame Material	Carbon
Groupset	Shimano 105
Shifters	Shimano 105 R7020
Front Derailleur	Shimano 105 R7000
Rear Derailleur	Shimano 105 R7000
Bottom Bracket	Shimano Press Fit
Chain	KMC X11
Frame	Orbea Orca Carbon OMR
Fork	Orbea OMR Carbon
Brakes	Shimano R7070 Hydraulic Disc
Crankset	Shimano RS510 34x50
Cassette	Shimano 105 R7000
Wheelset	Orbea Ready GR
Wheels	Orbea Ready GR
Tires	Vittoria Zaffiro V Rigid bead 700x25c
Handlebar Details	Drop: 125mm
Headset	FSA Integrated
Seatpost	OC2 Carbon 27.2mm
