TECHNICAL MANUAL BLUE PAPER ORCA · OMR 202130 | ORBEA ORBEA | 31
EN
CABLING

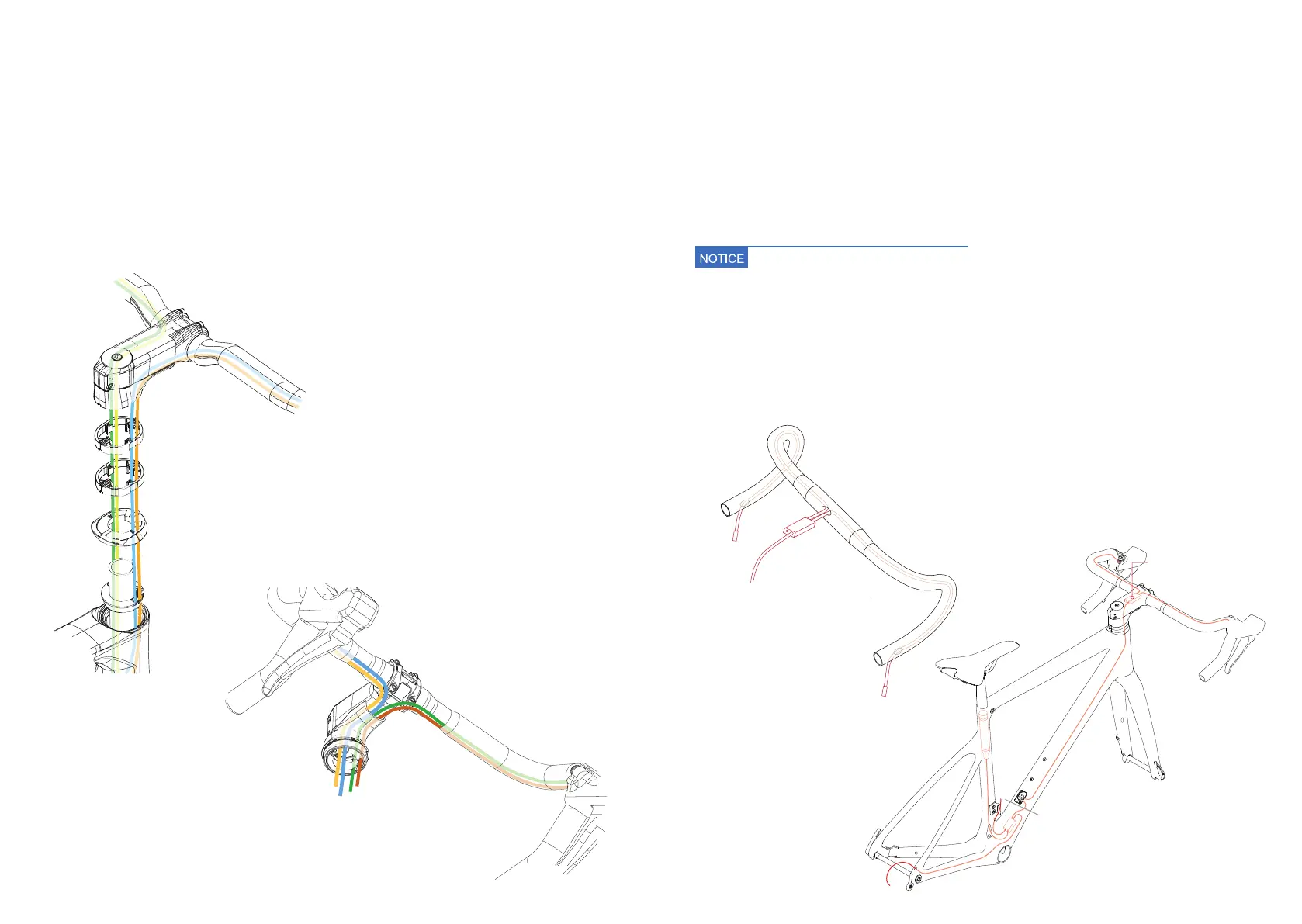

INTERNAL CABLE ROUTING THROUGH HEADSET
AND TOP BEARING ADAPTOR
DI2 CABLE ROUTING
EW-RS910
SM-JC41
(inside stem)
To Shimano
DI2 STi lever
SM-JC41
(inside stem)
BT-DN110
EW-RS910
WITH OC1 STEM
WITH ICR01 STEM
Di2 internal cable routing in handlebars OC1 Alloy, OC2
Alloy, OC2 Carbon, OC1 AllRoad Alloy.
Housing the Shimano SM-JC41 Di2 junction
inside the stem is only possible in models
with the ICR01 stem.
In models with the OC1 road stem, the Di2
cables will be routed externally on the hand-
NGDCTCPFVJG&KLWPEVKQPYKNNDGƂZGFWP-
der the stem with the Shimano silicon band.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Orbea ORCA M40 and is the answer not in the manual?

Orbea ORCA M40 Specifications

General IconGeneral
Frame MaterialCarbon
GroupsetShimano 105
ShiftersShimano 105 R7020
Front DerailleurShimano 105 R7000
Rear DerailleurShimano 105 R7000
Bottom BracketShimano Press Fit
ChainKMC X11
FrameOrbea Orca Carbon OMR
ForkOrbea OMR Carbon
BrakesShimano R7070 Hydraulic Disc
CranksetShimano RS510 34x50
CassetteShimano 105 R7000
WheelsetOrbea Ready GR
WheelsOrbea Ready GR
TiresVittoria Zaffiro V Rigid bead 700x25c
Handlebar DetailsDrop: 125mm
HeadsetFSA Integrated
SeatpostOC2 Carbon 27.2mm
